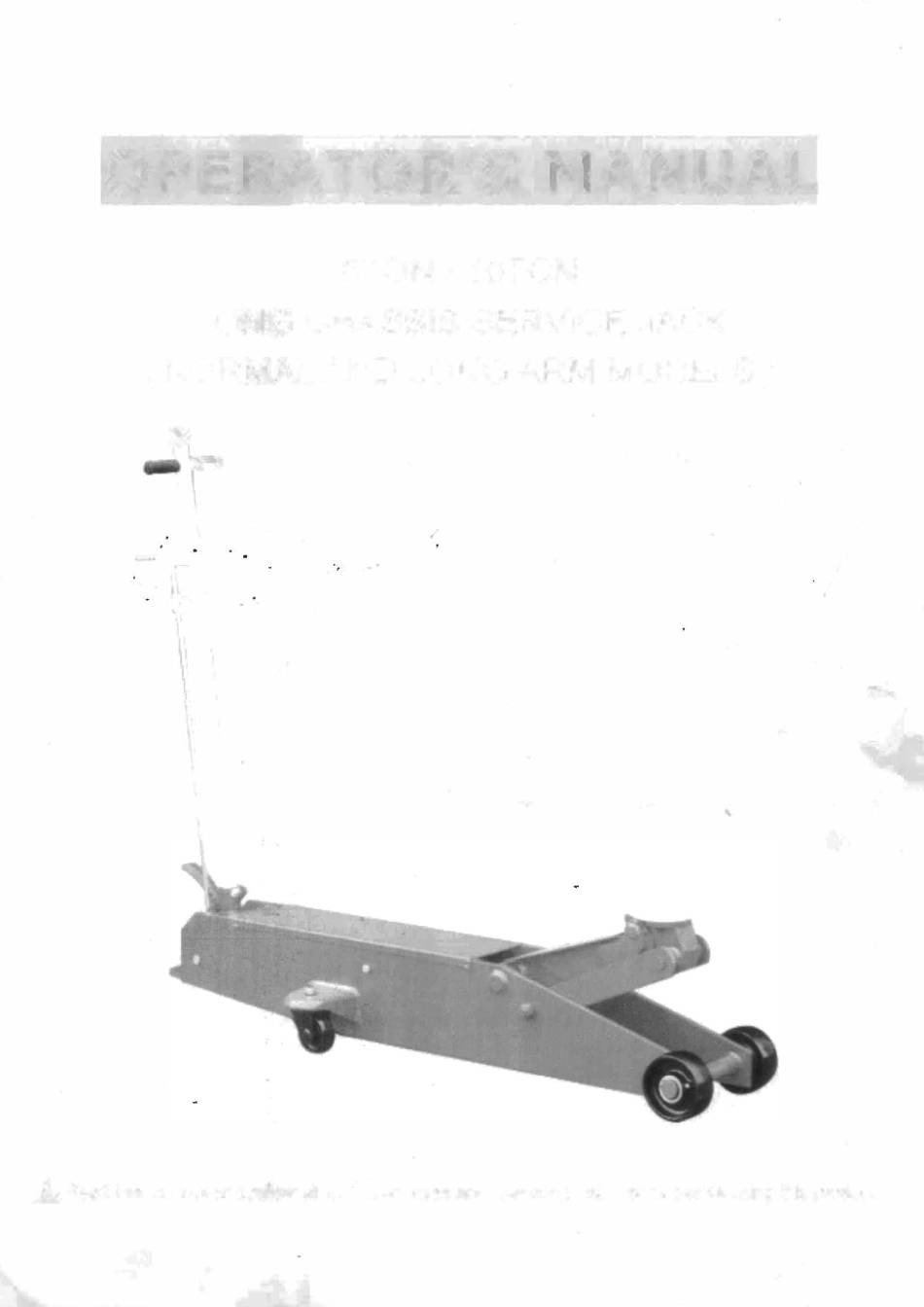

- Page 1 OPERATOR'S MANUAL 5TON 10TON LONG CHASSIS SERVICE JACK ( NORMAL AND LONG ARM MODELS) • ., • .., . Read this manual and follow all the safety rules and operating instructions before using this product.
- Page 2 SPECIFICATIONS OF NORMAL ARM MODELS Package Size Lifting Capacity Lifting Height Max.Height Min.Height Gross Weight Net Weight (Ton) (mm) (mm) (mm) (K gs) ( K gs) (cm) 157X42X29 5TON 167X52X33 10TON SPECIFICATIONS OF LONG ARM MODELS Lifting Capacity Lifting Height Max.Height Min.Height Gross Weight...
- Page 3 PARTS LIST Part No . Description Q 'ty Part No. Description Q 'ty frame 2-13 steel ball <1>6 front wheel 2-14 steel ball <1>9 ·1 washer 2-15 spring snap ring 2-16 copper washer Grease Fitting 2-17 bolt M12X20 rod link 2-18 steel ball bolt...
- Page 4 MAINTENANCE Checking hydraulic oil level 1. Open release valve (Turn handle knob(3-8) counter-clockwise) and push ram to its lowest position. 2. Remove filler plug. 3. Fill the clean hydraulic jack oil. Do not use hydraulic brake fluid. 4. Reinstall filler plug. Lubrication 1.
