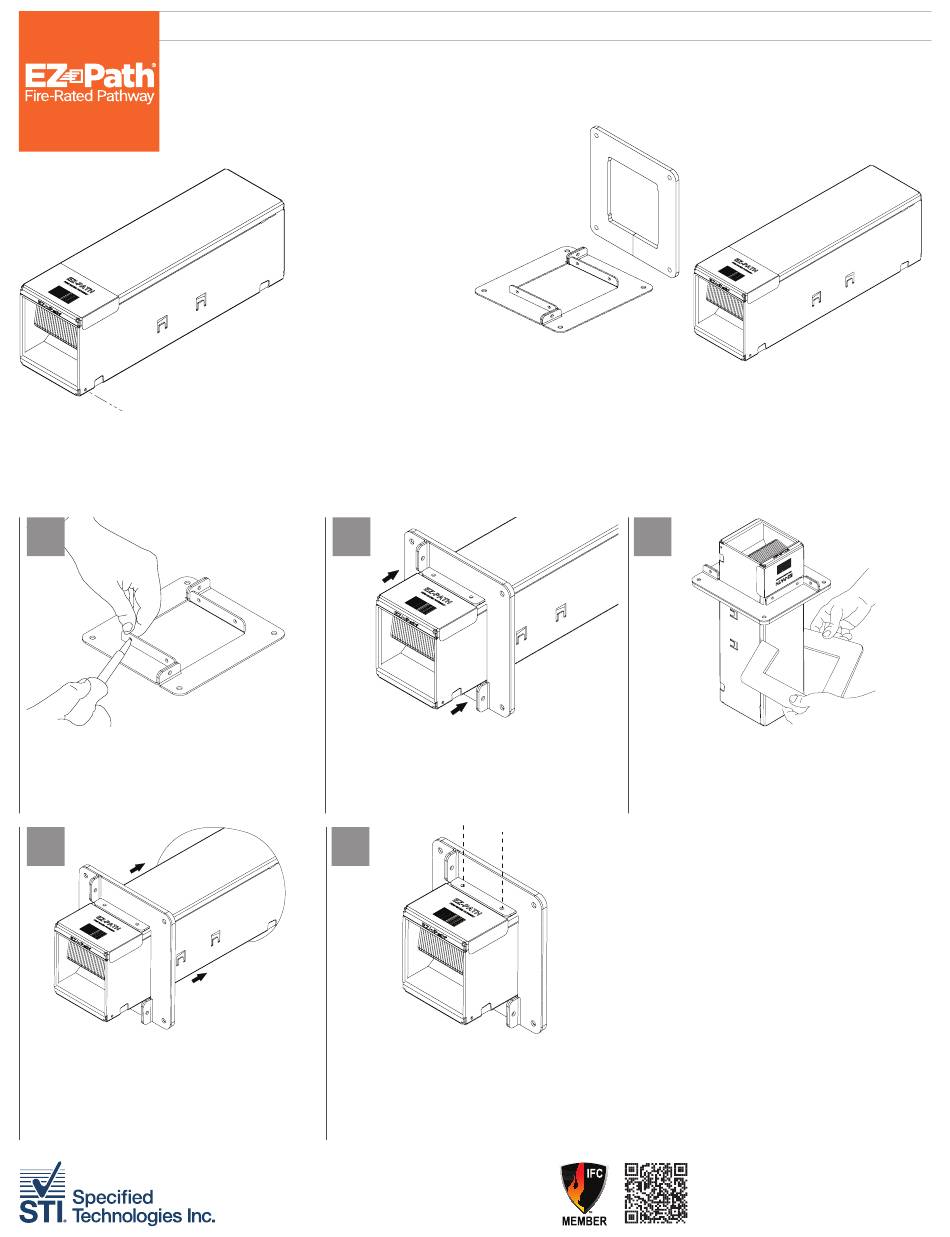

Optional Ground Attachment
New Work Installation
1
Assemble wall plates by using two (2) #10-32
x 5/16" screws and #10-32 nuts.
4
Insert pathway into wall opening. If necessary,
align plate/pathway with previously drilled
holes and secure to wall using appropriate
fasteners.
Note: For more information on firestop installation, refer to ASTM E3157.
I N S T A L L A T I O N
2
Slide pathway into opening in wall plate.
Pre position and fasten wall plate to one
side of pathway roughly centering pathway
5
Moving to the opposite side of the wall, install
remaining gasket and wall plate as detailed
above. Tighten set screws to complete
Specified Technologies Inc.
Somerville, NJ 08876 USA
T: (800) 992-1180
F: (908) 526-9623
www.stifirestop.com
EZ-Path
Series 44+ Retrofit Wall Plate
®
(Part Numbers: EZP144RS & EZDP144RS2)
x2
within barrier.
installation.
I N S T R U C T I O N S
x2
Parts Included (Not to Scale)
3
Slide gasket onto pathway so that when
inserted into wall, gasket will be sandwiched
between plate and wall.
Page 1 of 2
Warranty: www.stifirestop.com/legal/warranty
Made in USA • Printed in USA
ZIS1064 3579
