NOTE: Before installing, configuring, operating, or maintaining Aparian products, please review this
information and the information located on
documentation, and installation files specific to your Aparian product.
INTRODUCTION
The PMIO Scanner provides interfacing between a Rockwell Automation ControlLogix system and
Honeywell's TDC 3000 PM/HPM/APM Input/Output Processors (IOPs).
The PMIO Scanner plugs directly into a ControlLogix chassis and connects directly into the TDC 3000
redundant I/O Link.
NOTE: TDC 3000 and Process Manager are registered trademarks of Honeywell Inc.
REQUIRED SOFTWARE
The PMIO Scanner requires Aparian Slate software to setup and configure. The software installation can be
found at www.aparian.com/software/slate.
Document No. D137-011
PMIO Scanner
Quick Start Guide
www.aparian.com
for the latest software,
Revision 1.1
04/2019
1756-A-PMIO
Page 1 of 4
Advertisement
Table of Contents
Summary of Contents for APARIAN 1756-A-PMIO
- Page 1 I/O Link. NOTE: TDC 3000 and Process Manager are registered trademarks of Honeywell Inc. REQUIRED SOFTWARE The PMIO Scanner requires Aparian Slate software to setup and configure. The software installation can be found at www.aparian.com/software/slate. Document No. D137-011 Page 1 of 4...

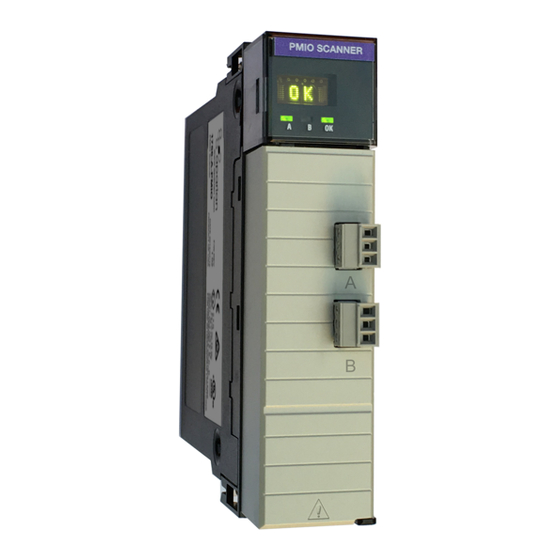

- Page 2 Revision 1.1 04/2019 MODULE INSTALLATION The PMIO Scanner is a standard single slot ControlLogix module and fits directly into any ControlLogix chassis. All required power for the module is derived from the ControlLogix backplane. On the front of the module are 2 x 3-way communication connectors for the redundant I/O Link to the Honeywell IOP Rack(s). Description The module LED will provide information regarding the system-level operation of the module.
- Page 3 Revision 1.1 04/2019 Custom-length I/O Link cables, as shown below, are available from Aparian. To simplify installation, these cables are designed to be inserted between an existing I/O Link cable and the I/O rack. These cables are not supplied with the PMIO Scanner and must be ordered separately.
- Page 4 ADDITIONAL INFORMATION The following resources contain additional information that can assist the user with the module installation and operation. Resource Link Slate Installation www.aparian.com/software/slate Add-On Profile Installation http://www.aparian.com/software/aop https://literature.rockwellautomation.com/idc/groups/l ControlLogix Installation iterature/documents/in/1756-in621_-en-p.pdf SUPPORT Technical support will be provided via the Web (in the form of user manuals, FAQ, datasheets etc.) to assist with installation, operation, and diagnostics.
