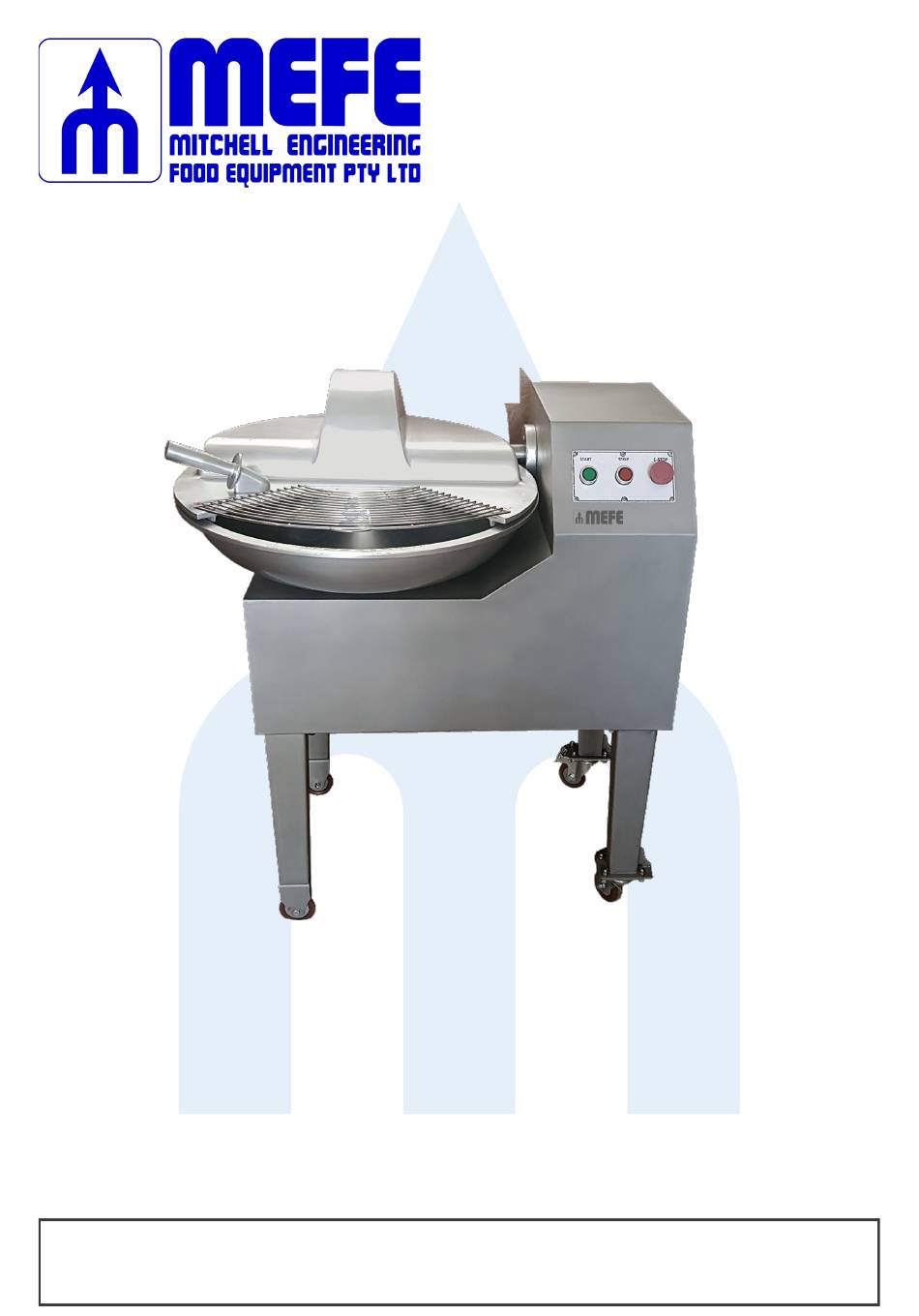

- Page 1 Instruction Manual 24L Bowl Cutter 220V CAT 361 BC1 24 Revision 3 MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 1 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006...
-
Page 2: Table Of Contents
3.3 Blade Locating ....................7 Specifications ......................8 4.1 Parts Diagram ....................8 4.2 Electrical Circuit Diagram .................. 9 MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 2 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... - Page 3 STRESS TO EACH EMPLOYEE THAT THIS TOOL IS INTENDED TO BE POWERFUL AND IS CAPABLE CAUSING SEVER INJURY OR DEAH IF MISUSED. ALWAYS DISCONNECT TOOL FROM POWER SOURCE AND LOCK WHEN NOT IN USE OR UNATTENDED. MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 3 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au...
- Page 4 CONNECT APPROPRIATE POWER AS FOUND ON NAMEPLATE UNLOCK ON OFF SWITCH IF FITTED AND TURN ON TEST EMERGENCY STOP BUTTON BY PRESSING (IF FITTED) MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 4 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au...
-
Page 5: Product Description
Gently spin blades ( turning the driveshaft by hand ) to ensure they DO NOT make contact with the bowl, see locating blades on page 4. Place the machine in a dry and ventilated level surface to ensure the machine works smoothly and safely. MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 5 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... -
Page 6: Instructions For Use
Do not use harsh detergents, industrial cleaners, iron brushes, or high pressure hoses. Completely wash machine using pressure water / hose and mild detergent - spray complete removing all remnants of matter MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 6... -
Page 7: Machine Maintenance And Daily Inspection Of Key Components
To adjust the height of the lid rest—remove the nylon centre nut—exposing the centre bolt and locknut . Loosen locknut and adjust the bolt as required - relock the locknut and replace the nylon centre nut MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 7... -
Page 8: Specifications
1 - Dish basin Belt pulley mechanism Belt driving device Frame Motor 885.5 619.4 MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 8 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006... -
Page 9: Electrical Circuit Diagram
Attention: Socket must be equipped with switch, to make sure power can be cut off on time. Symbols Motor Magnetic switch Stop button Start button Emergency Stop MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 9 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006...
