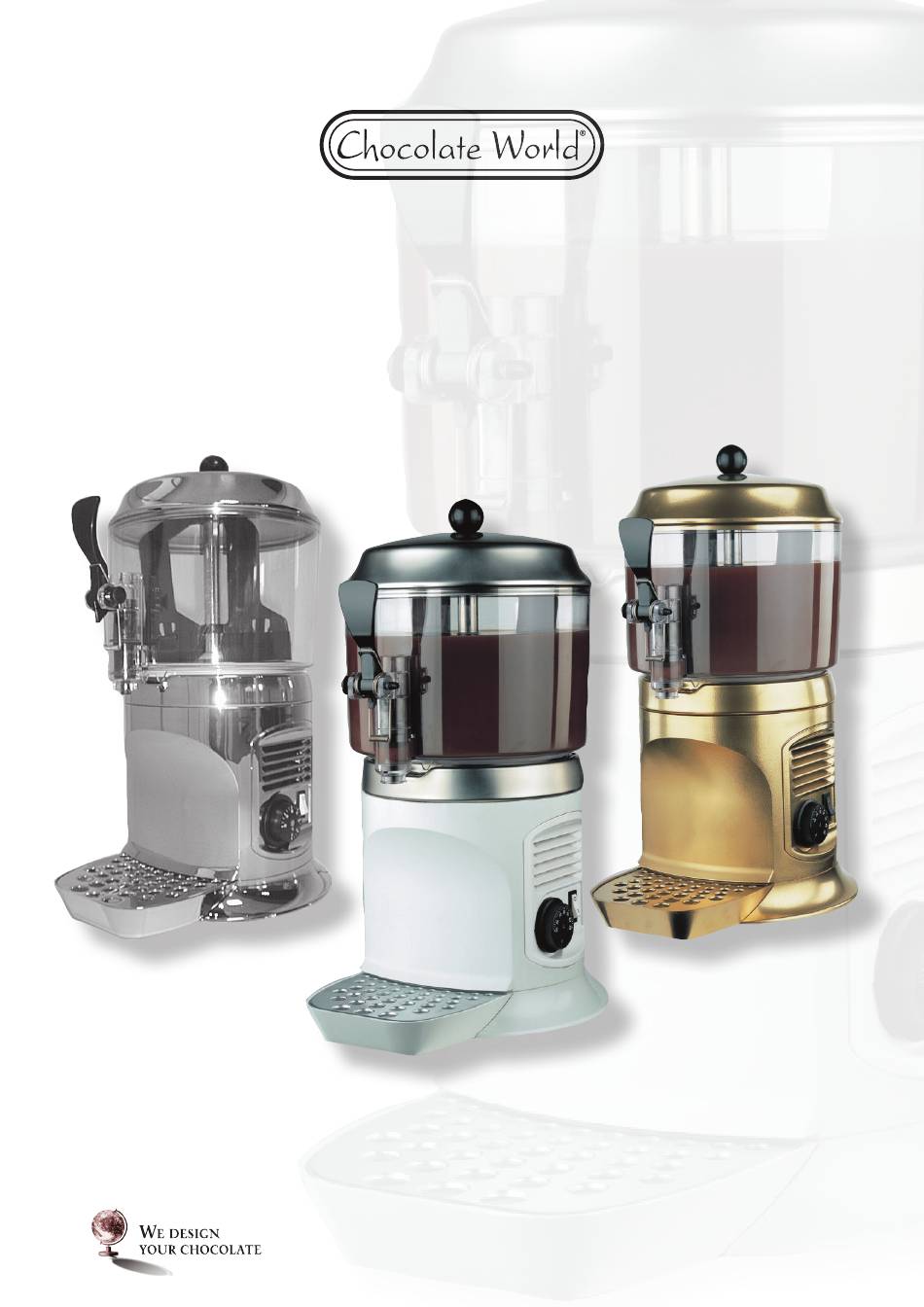

- Page 1 HOT CHOCOLATE DISPENSER OPERATOR’S MANUAL CARNET D’INSTRUCTIONS MANUAL DE INSTRUCCIONES Lange Elzenstraat 123 • 2018 Antwerpen • Belgium • Tel. +32 (0)3 216 44 27 Fax +32 (0)3 216 98 33 • www.chocolateworld.be • info@chocolateworld.be...
-
Page 2: Technical Characteristics
EN GLIS H SCIROCCO UL Install the dispenser on a counter top that will 1 TECHNICAL CHARACTERISTICS support its weight, even with a full load. Scirocco Before connecting the dispenser electrically check that the voltage (in the network) is as Transparent removable bowls shown on the data plate. -
Page 3: Operating Procedures
range between +5° and +50°C. Position I : mixer and heating device in working order The dispenser is equipped with a thermostat, on the right side, to adjust the temperature of the ATTENTION product. Comment: the dispenser is also equipped with a Do not remove the container until the hot plate is cold. - Page 4 EN GLIS H SCIROCCO UL 5. 3. 1 DISASSEMBLY 5. 3. 2 CLEANING ATTENTION IMPORTANT Before proceeding to disassemble any com- Before cleaning disconnect the dispenser ponent always disconnect the unit from the from the electricity taking out the plug or electricity removing the plug or switching turning off the outside switch on the wall.
-
Page 5: Maintenance
the following ratio: 1 tbsp: 2 litres of water. Immerse all the parts to be sterilised in the solution for time indicated by the manufacturer. Allow the sterilised parts to air dry on a clean surface. Use non-abrasive cloths to dry the external parts. -
Page 6: Troubleshooting
EN GLIS H SCIROCCO UL TROUBLESHOOTING PROBLEM CAUSE SOLUTION Mixer doesn't turn Drive shaft coupling not cor- Check that it's in the cor- rect rect operating position Drive shaft coupling broken Replace mixer and/or drive shaft Gear motor not working See “Gear motor doesn't... - Page 7 PROBLEM CAUSE SOLUTION Heating element not hot Heating element burned out R e p l a c e t h e h e a t i n g element The maximum temperature Regolarlo alla temperatura thermostat (located under the opportuna distributor) is set too low Thermal fuse burned out Adjust it to a suitable...
- Page 8 SCIROCCO UL 2453_29 V 0.6 06G10 SPARE PARTS LIST EN GLIS H LISTE DES PIECES DE RECHANGE F R A N C A I S DESCRIPCION PIEZAS DE REPUESTO ES PAÑ OL 1 33800-09800 Driving shaft Arbre de trainement Eje transmisión...
- Page 9 8 22092-00014 Complete gear motor 115V 60Hz Motoréducteur complet Motorreductor completo 9 22800-26478 Side panel Panneau latéral Panel lateral 9 22800-26433 Side panel -“gold” Panneau latéral -“or” Panel lateral -”oro” 9 22800-26438 Side panel -”silver” Panneau latéral -”argent” Panel lateral -”plata” 10 22800-26476 Machine body Carrosserie Cuerpo maquina...
