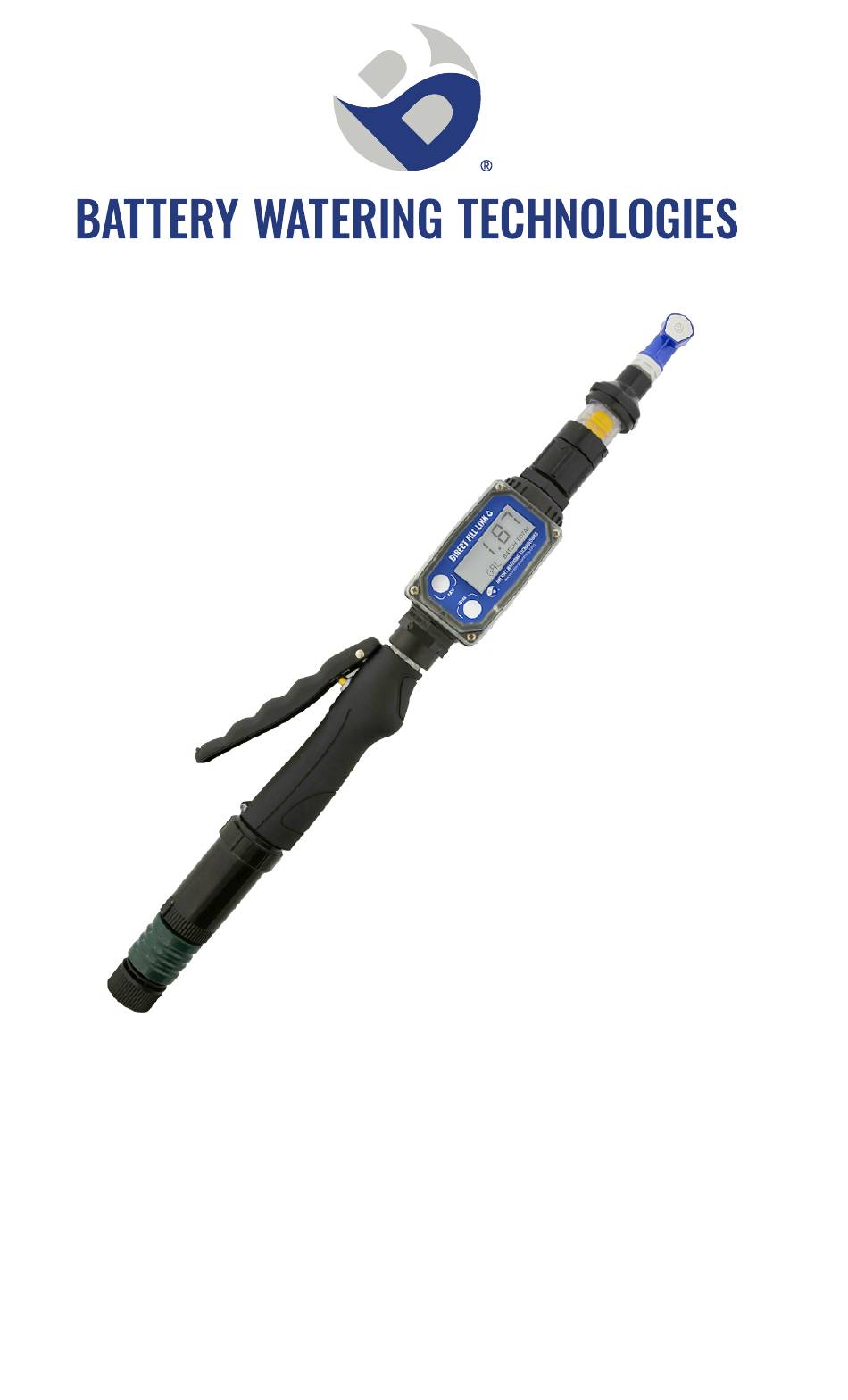

- Page 1 English: 1-11 Direct Fill Link+ Direct Fill Link with Bluetooth Enabled Flow Meter...

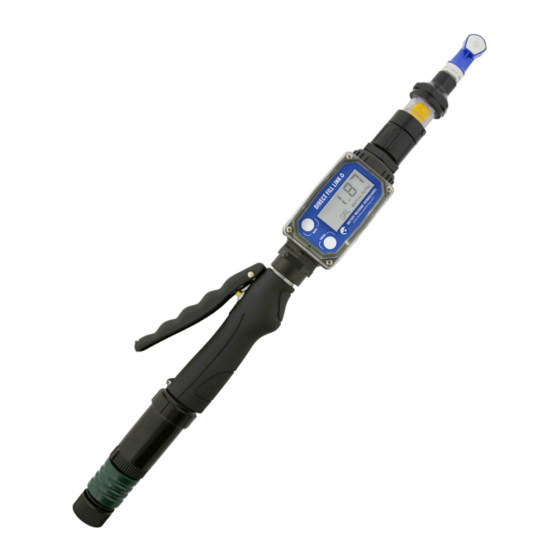

- Page 2 Direct Fill Link+ Direct Fill Link with Bluetooth Enabled Flow Meter PART NUMBERS: DFMETER (Flow Meter Only), DF72PLUS, DF72FPLUS, DF72GPLUS, DFHOSCPLUS, DFHOSCNFPLUS, DFHOSCNPLUS, DFHOSE-STPLUS, DFHOSE-STFPLUS • When working in hazardous environments, always exercise appropriate safety precautions. • Always wear personal protective equipment (goggles, gloves, etc.) to protect yourself from sulfuric acid.
- Page 3 FLOW METER DISPLAY FEATURES Familiarize yourself with the flow meter features before use. BATCH TOTAL, ACCUMULATIVE TOTAL OR FLOW RATE FACTORY CALIBRATION INDICATOR FLOATING DECIMAL RATE POINT (3 PLACE) BUTTON TOTAL BUTTON TOTAL FLOW SPILL-OVER INDICATOR INDICATOR (X10 OR X100) INFORMATION BATCH INDICATOR...
- Page 4 FLOW METER DISPLAY All operations are revealed on the LCD screen using the large 6-characters in the top row and smaller characters and symbols in the second row. These characters and symbols indicate information regarding totals, flow, calibration, units of measure and operational messages.
-
Page 5: Button Operation
BUTTON USAGE MAP BUTTON OPERATION TOTAL Button: Toggle between batch total and accumulative total. When a total is displayed, momentarily pressing TOTAL button toggles the top row of large display digits between batch total and accumulative total. The information row will change to the proper units and the corresponding icons will also be shown, i.e. - Page 6 BATCH TOTAL RESET TOTAL Button: Batch total reset. When a batch total is displayed, press and continue to hold TOTAL button for 3 seconds; the software will display a three second count down, then reset the batch total to zero. If TOTAL button is released prior to count down completion, the software returns to batch total screen.
- Page 7 DISPLAY CHANGE | TOTAL TO RATE RATE Button: Change display from total to rate. When a total is displayed, momentarily pressing the RATE button changes the top row of large display digits from a total to a rate display. The information row will change to the proper units and the corresponding icons will also be shown, i.e.
-
Page 8: Troubleshooting
TROUBLESHOOTING SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Meter operated below Increase flow rate. minimum flow rate. Remove meter. Clean Meter partially clogged with carefully. Make sure rotor debris. DISPLAY IS spins freely and water supply INACCURATE is free of debris. If applicable, remove rotor. Sealant material wrapped Make sure rotor spins freely around meter rotor. -
Page 9: Battery Information
BATTERY INFORMATION The flow meter is shipped with (2) alkaline AAA size batteries (1.5-volts each) and (1) lithium CR2477 (3 volts) installed. RECOMMENDED BATTERY REPLACEMENTS Alkaline (AAA size, 1.5-volts each) Lithium CR2477 size (3-volts) Energizer, Alkaline, E92 or En92 Panasonic, Sony or Toshiba Duracell, Alkaline, Mn2400 NOTE: It is recommended to replace the batteries every year. -
Page 10: Battery Replacement
BATTERY REPLACEMENT 1. Remove the (4) corner screws attaching the flow meter electronics and Bluetooth module to the meter and lift away from the meter. 2. Remove the AAA batteries from the display and then the CR2477 3V lithium cell battery from the Bluetooth module. 3. - Page 11 Battery Watering Technologies Facility Resourced Equipment Data FRED INTEGRATION The Direct Fill Link+ is designed to be used with the FRED application by BWT. SETTINGS go to the menu and select settings. Toggle To sync your Direct Fill Link+ the "Connect Direct Fill Link+" and the Direct Fill Link+ ID number field will appear.
-
Page 12: Performing Tasks
PERFORMING TASKS When a watering task is selected and a Direct Fill Link+ is connected the watering amount will be automatically recorded. If you need to switch your units of measure from the global default, toggle the switch to change units. Both units are always recorded. If a Direct Fill Link+ is connected, the (CR2477) battery level is displayed, i.e. - Page 16 336.714.0448 . 877.522.5431 6645 Holder Road Clemmons, NC 27107 www.batterywatering.com Direct_Fill_Link_Plus_INS Rev. 03 | 0521 Patent Pending...
