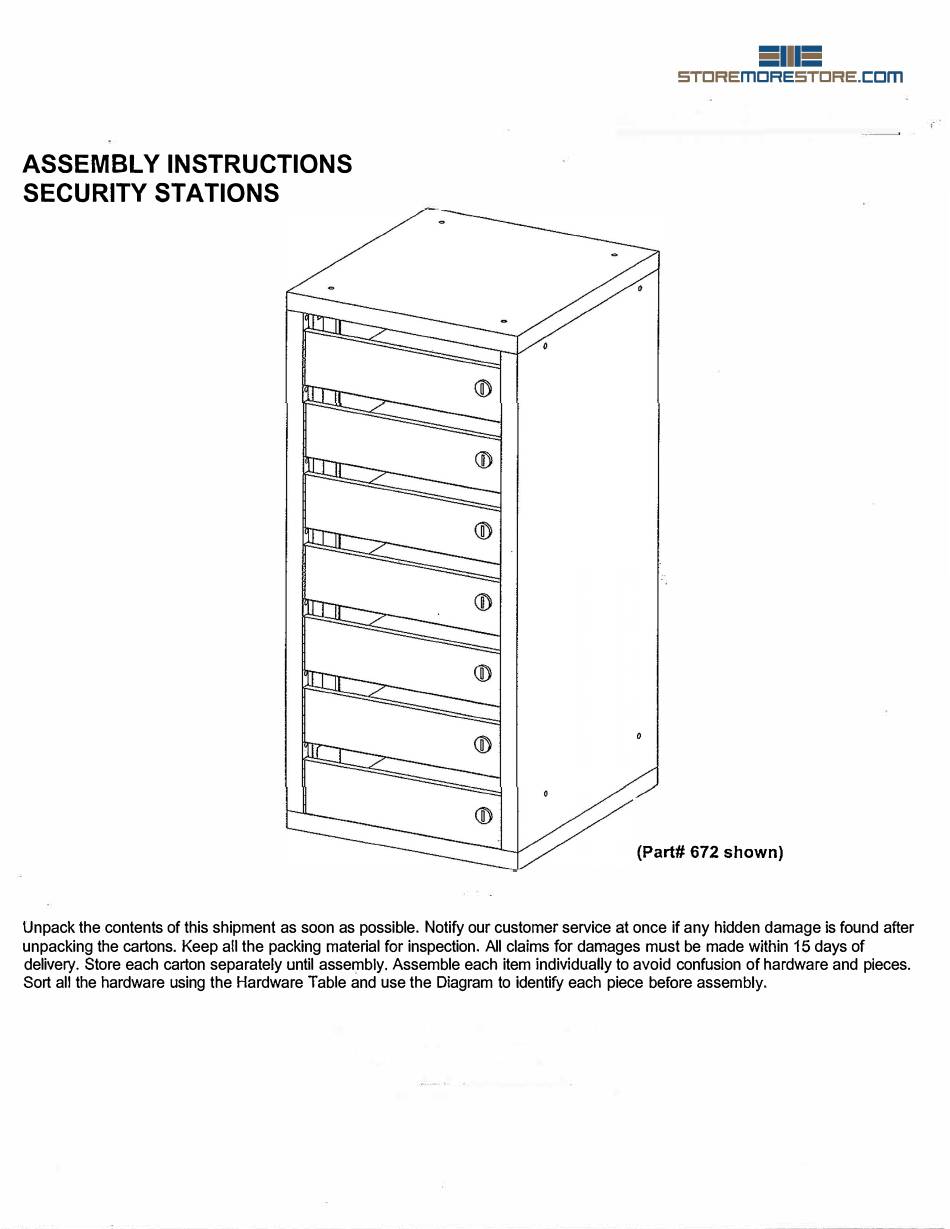

Store More 672 Assembly Instructions Manual

Security stations

Download this manual

www.StoreMoreStore.com | 855-786-7667

Need help?

Do you have a question about the 672 and is the answer not in the manual?

Page 1 www.StoreMoreStore.com | 855-786-7667...
Page 2: Hardware Table
Hardware Table: Note: These are modular units; therefore the hardware.totals will vary. Please reference the specific model numtier · .for the door configurations. Detail Quantity Description / Usage ¼-20 x ¼" Phillips Pan Head Screw. 1 (per Lock) (Attaches the Cam to the Lock Cylinder) ·...
Page 3 Page 3 of 6 Step 1 A) Slide the Lock Cylinder through the Front Side of the Door (See Fig. 1 ) . B) Secure the Lock Cylinder to the Door by sliding the Retainer Clip over the Lock Cylinder. C) Attach the Straight Cam to the Lock Cylinder with one ¼-20 x ¼"...
Page 4 www.StoreMoreStore.com | 855-786-7667...
Page 5 Step 3 A) Set the Botiom Door against the Front Rail on the Security Shell to determine the positioning of the Captive Nuts. Next, clip the two Captive Nuts to the Front Rail (See Fig. 3). The positioning of the remaining doors will be determined by which model number was ordered.
Page 6 Step 5 (Note: This step is only used when bolting multiple Security Stations together) These are modular units and can be mounted vertically or horizontally. A) Horizontal Mounting: Bolt the Shells together using four ¼-20 x ½" Phillips Truss Head Screws with Keps Nuts (See Fig. 5 ) . B) Vertical Mounting: Bolt the Shells together using four ¼-20 x 1½"...
