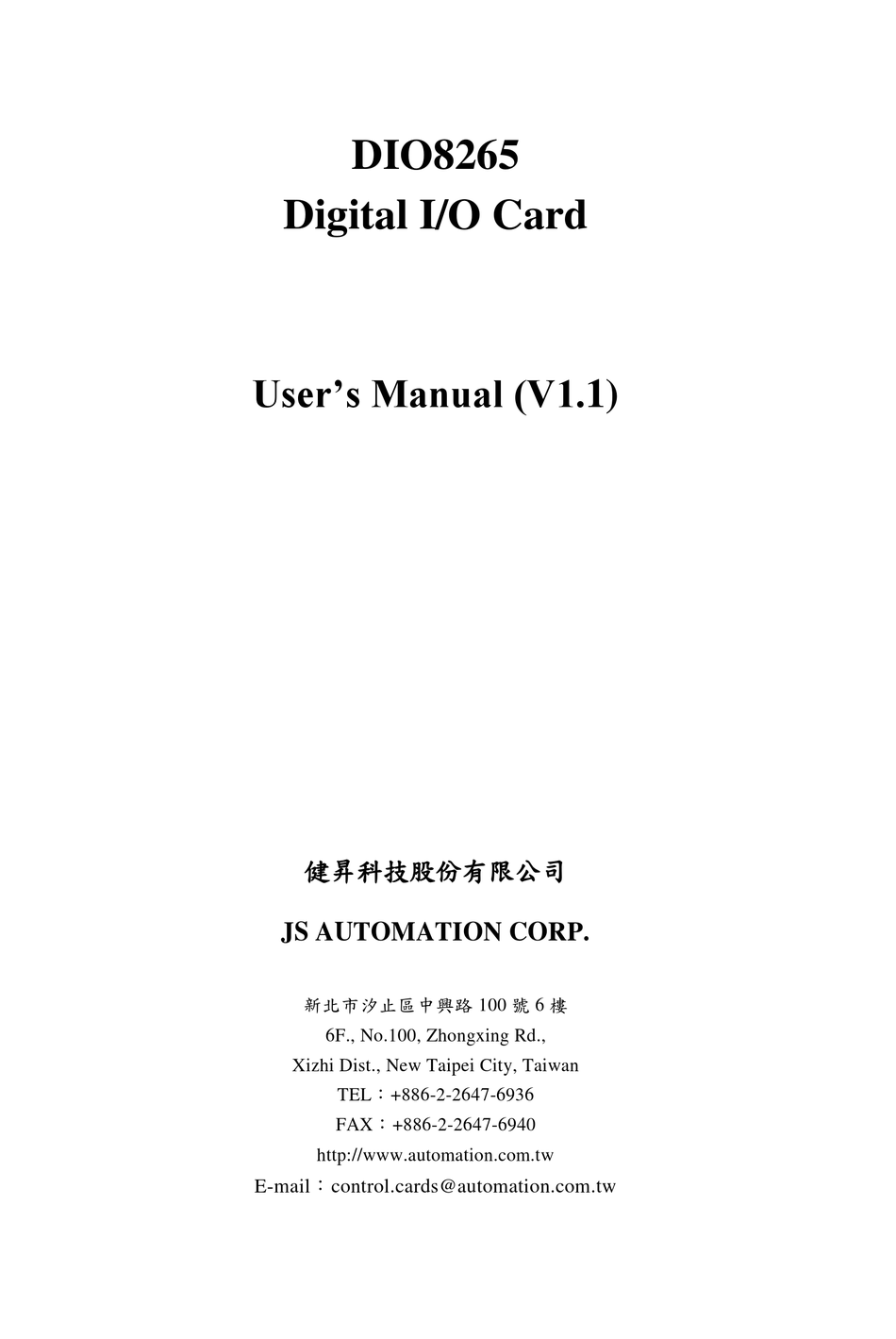

- Page 1 DIO8265 Digital I/O Card User’s Manual (V1.1) 健昇科技股份有限公司 JS AUTOMATION CORP. 新北市汐止區中興路 100 號 6 樓 6F., No.100, Zhongxing Rd., Xizhi Dist., New Taipei City, Taiwan TEL：+886-2-2647-6936 FAX：+886-2-2647-6940 http://www.automation.com.tw E-mail：control.cards@automation.com.tw...
- Page 2 Correction record Version Record Modify Notes on hardware installation Add Warranty Add specifications to each input and output (chapt. 6) Modify chapt. 7 External wiring diagram...
-
Page 3: Table Of Contents
DIO8265Main card ........................7 DIN rail mounted wiring board ....................8 Layout and dimensions ........................9 DIO8265 Main card ........................9 ADP8265DIN(R) DIN rail mounted wiring board ..............10 JS51050 for JM0 25PM DIN rail mounted dummy wiring board .......... 10 PIN definitions .......................... - Page 4 Notes on hardware installation Please follow step by step as you are installing the control cards. 1. Be sure your system is power off. 2. Be sure your external power supply for the wiring board is power off. 3. Plug your control card in slot, and make sure the golden fingers are put in right contacts. 4.
- Page 5 The DIO8265 is warranted against defects in materials and workmanship for a period of two years from the date of shipment, as evidenced by receipts or serial no. on board. JS automation Corp. will, at its option, repair or replace product that proves to be defective during the warranty period. This warranty includes parts, labor and shipping costs of returning.
-
Page 6: Forward
1. Forward Thank you for your selection of JAC’s product DIO8265 64 outputs DIGITAL I/O card for industrial PC. In the field of industrial control, digital I/O is generally controlled under a microprocessor and owing to their specific consideration of industrial environment, it is quite different from the laboratory requirement. -
Page 7: Features
2. Features 2.1 Main card 2.1.1 PCIe plug and play function with card ID for 16 identical cards 2.1.2 64 isolated DO channels 2.1.3 High voltage isolation on all isolated channel (2500 Vac) 2.1.4 Programmable debounce for TTL input 2.1.5 No output transition during start-up 2.1.6 Output status readback 2.1.7 External triggered interrupt (TTL IO07~IO00) 2.1.8 Input counter / frequency counter (on TTL IO07~IO00) -
Page 8: Specifications
3. Specifications 3.1 DIO8265Main card Input Section 3.1.1 Interrupt : at TTL IO07~IO00 3.1.2 Counter/frequency counter : 16 bit at TTL IO07~IO00 Output Section 3.1.3 Output : 64 photo-isolated 3.1.4 Output rating : 3A @250Vac, 30Vdc (Relay) TTL IO 3.1.5 Port : 2 3.1.6 Direction : software programmable on port base 3.1.7 Software debounce : No debounce, up to 8MHz... -
Page 9: Din Rail Mounted Wiring Board
3.2 DIN rail mounted wiring board ADP8265DIN(R) DIN rail mounted wiring board 3.2.1 External supply : DC 24V±4V 3.2.2 Output status indicator : 64 LED, 8 digit per group with Green LED at first digit 3.2.3 Power indicator : Red LED 3.2.4 Output capacity : Relay : 3A continuous@250Vac(max) 3.2.5 Operation temperature : 0 to 70°... -
Page 10: Layout And Dimensions
4. Layout and dimensions 4.1 DIO8265 Main card *dimension in bare board... -
Page 11: Adp8265Din(R) Din Rail Mounted Wiring Board
4.2 ADP8265DIN(R) DIN rail mounted wiring board *dimension in bare board 4.3 JS51050 for JM0 25PM DIN rail mounted dummy wiring board *dimension in bare board... -
Page 12: Pin Definitions
5. PIN definitions 5.1 Pin definitions for DIO8265_JF0 connector Descriptions Descriptions 68 +24V[External DC24V 34 +24V[External DC24V power] power] 67 OUT77[Port7 bit7 output] 33 OUT76[Port7 bit6 output] 66 OUT75[Port7 bit5 output] 32 OUT74[Port7 bit4 output] 65 OUT73[Port7 bit3 output] 31 OUT72[Port7 bit2 output] 64 OUT71[Port7 bit1 output] 30 OUT70[Port7 bit1 output] 63 OUT67[Port6 bit7 output]... -
Page 13: Pin Definitions For Dio8265_Jm0 Connector
5.2 Pin definitions for DIO8265_JM0 connector Description Description IO00: TTL port0 IO0 IO10: TTL port1 IO0 IO01: TTL port0 IO1 IO11: TTL port1 IO1 IO02: TTL port0 IO2 IO12: TTL port1 IO2 IO03: TTL port0 IO3 IO13: TTL port1 IO3 IO04: TTL port0 IO4 IO14: TTL port1 IO4 IO05: TTL port0 IO5... -
Page 14: I/O Interface Diagram
6. I/O interface diagram 6.1 TTL IO For TTL IO : IO07 ~ IO00, IO17 ~ IO10 I/P specification: ** (min) ** (max) 0.8V ** (min) 2.4V ** (max) 0.5V @24mA For byte-programmable TTL I/O IO07 ~ IO00, IO17 ~ IO10 to configured as pull high or pull low. -
Page 15: External Wiring Diagram
7. External wiring diagram wiring board with Relay output... -
Page 16: Hardware Settings
8. Hardware settings 8.1 CARD ID setting Since PCIe cards have plug and play function, the card ID is required for programmer to identify which card he/she will control without knowing the physical address assigned by the Windows. A 4 bits DIP switch or rotary switch for distinguishing the 16 identical cards. The following example sets the card ID at 12. -
Page 17: Applications
9. Applications Accept： -- P.B./M.S./EMG./Contact- Start/Stop/Limit switch/sensor -- Interlock/selective Sw.- Proximity switch -- Aux. contact of transducer/detector As I/O of S/W PLC Controller Industrial ON/OFF control Low speed counter Frequency counter Hardware event capture... -
Page 18: Ordering Information
10. Ordering information PRODUCT DESCRIPTIONS DIO8265 64-channel Digital I/O Card for 64 D0 Photo-coupler isolated ADP8265DIN(R) DIN rail mounted wiring board for 64 power Relay output JS51050 DIN rail mounted dummy wiring board (D type 25P male to terminals )
