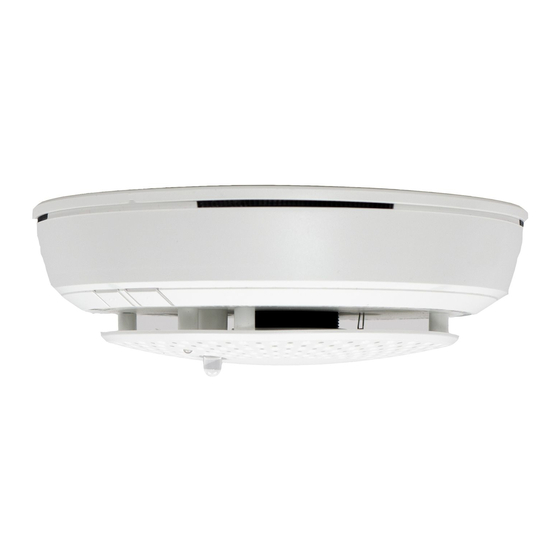

Honeywell Home SiXCOMBO-CN Installation And Setup Manual

Honeywell Home SiXCOMBO-CN Installation And Setup Manual

Combination smoke/carbon monoxide (co) detector w/built-in wireless transmitter (features voice and 360 degree viewable led ring)

Advertisement

Quick Links

SiXCOMBO-CN
Combination Smoke/Carbon Monoxide (CO) Detector w/Built-in Wireless
Transmitter
(features voice and 360 degree viewable LED ring)
Installation and Setup Guide
This device is intended for use with Honeywell Home control panels that support SiX series devices.
Before installing detectors, please thoroughly read these installation instructions and read the
Limitations of Fire Alarm Systems Insert (P/N 800-15144 5/13), System Smoke Detectors
Application Guide (P/N SPAG9101 7/12), and Limitations of Carbon Monoxide Detectors (P/N
K14670V1 4/8 Rev B).
See Quick Installation Guide I56-6225 – https://mywebtech.honeywellhome.com.
FEATURES
• Multi-Criteria Sensing:
uses four
sensing elements to react faster
while minimizing false alarms:
- Photoelectric smoke sensor
detects airborne smoke
particles
- Carbon Monoxide (CO) sensor
detects smoldering fires
- Infrared (IR) sensor measures
ambient light and flame
signatures, such as flame
flicker
- Heat detection monitors for
dangerous rise in temperature
ENROLLMENT
The SiXCOMBO has a unique MAC ID number. The heat,
smoke, and CO are assigned to loops 1-3 respectively
and are enrolled in separate zones.
NOTE: Once enrolled, the device cannot be used with
another system until it is removed from the current
controller. See the 24-hour Enrollment Deletion
section below or the controller's instructions.
Enroll the Device Services (Smoke, Heat, CO)
1. Remove the detector from the base plate (tamper
switch must be faulted when enrolling).
2. Put the control panel in Programming mode, when
prompted:
3. Pull the battery tab to activate enrollment process (be
sure batteries are seated properly to avoid a false low
battery condition). If the battery tab has already been
removed and the unit is powered up, press either Test
switch for less than 3 seconds to activate the
enrollment process.
24-Hour Enrollment Deletion
Use this procedure within 24 hours of initial enrollment to delete this
device from the controller. This allows reenrollment in a specific
controller in case enrollment in that controller failed. This resets the
device to factory default settings and removes the communication link
data in the controller in which it is enrolled.
LANGUAGE SELECTION
1. Press and hold both the Smoke and CO test switches
simultaneously for 5 seconds until Welcome message is
announced, then release. The green light flashes rapidly.
MOUNTING
After enrolling, verify adequate signal strength with the
device in its intended mounting location. Adjust the
device location and orientation as necessary.
1. Using two supplied screws and anchors, mount the
base.
2.
Attach the smoke detector to the mounting base
with a clockwise motion.
• One Go / All Go: all smoke
detectors in the system
programmed as one-go-all-
go will sound on alarm.
• CO Detector End-of-Life
reporting (detector needs
replacing)
• Smoke detector maintenance
reporting (detector needs
cleaning)
Low Battery Detection
4. The device attempts enrollment (green LED flashes about 8 seconds). If
successful, the green LED lights steady for 3 seconds and the device
announces successful enrollment.
If the LED does not light steady, enrollment failed. Retry by pressing either
Test switch for less than 3 seconds.
All services (Smoke, Heat, and CO) are automatically enrolled in sequential
(or next available) zone numbers with the following default attributes:
NOTE: Maintenance and CO End-of-Life are automatically enrolled for
the respective smoke and CO zones. Contact ID code E386 "Low
Maintenance Smoke" is sent for the CO zone at End-of-Life and Contact ID
code E385 "High Maintenance Smoke" is sent for the Smoke Zone when dirty.
Supervision: Detector supervision is factory set for 1 minute and is not
programmable.
Table 1: Operation Modes
Status LED
MODE
(Top)
Blink Green,
Power Up
every 2 secs
Single Blink
Normal
Green every
(Standby)
10 secs
Smoke
Blink Red
Alarm
every 10 secs
Heat
Blink Red
Alarm
every 10 secs
Blink Red
CO Alarm
every 10 secs
Powered
Dark
Down
Zone
Device Type
Smoke
Smoke Detector
Det.
Heat Det.
Heat Sensor
Carbon Mono.
CO Det.
Det.
1. Press and hold both the Smoke and CO test switches
simultaneously until the welcome message announces, then
release.
2. Wait for the green LED to flash rapidly.
3. Press and hold both switches again for one second and release.
4. LED blinks rapidly after 15 seconds, confirming deletion.
2. Pres the Test button corresponding to the desired language:
English: Press the Smoke (•) test button
Spanish: Press the CO (••) test button
3.Test each detector as described in the Testing
section.
4. Confirm all desired signals have been received by
the Central Station.
NOTE: NFPA 72 recommends the installation of
detectors only after completing construction or any
other dust producing activity.
NOTE: This device should not be located within 5 ft.
(1.5 m) of any cooking appliance.
1
LED Windows
Sounder
(Side)
Voice welcome,
instructions after first
Dark
Silent
time power up or
after default
Dark
Silent
Voice smoke
Blink red
Temp-3
Voice smoke
Blink red
Temp-3
Blink blue
Temp-4
Dark
Silent
Zone Response
Type
Fire No Verification
Fire No Verification
Carbon Monoxide
Speaker
Silent
warning
warning
Voice CO
warning
Silent
