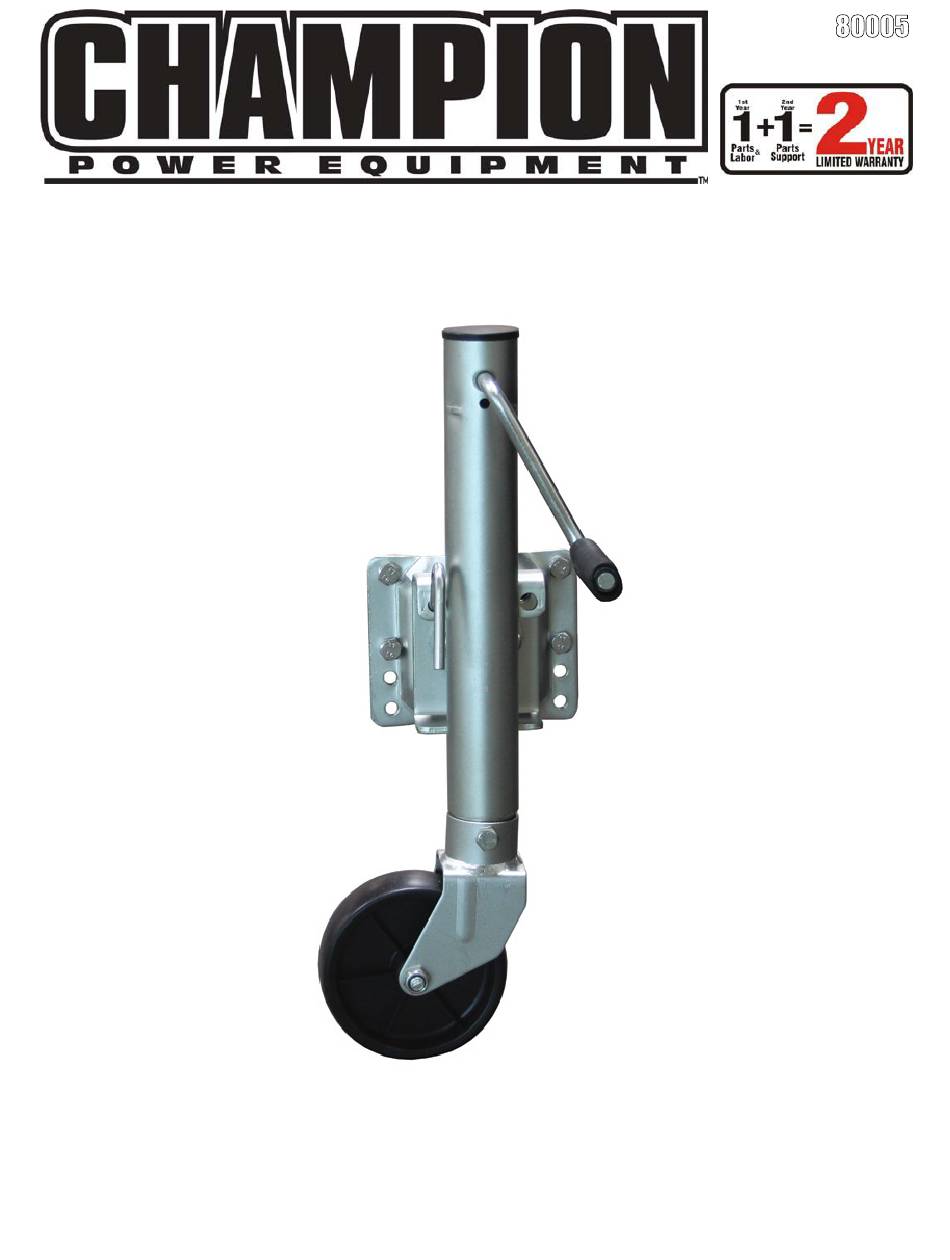

- Page 1 80005 Rev 80005-20131119 10006 Santa Fe Springs Road Santa Fe Springs, CA 90670 USA Made in China Owner’s Manual and Operating Instructions 1500 lbs. 680 kg Capacity TRAILER JACK...
-
Page 3: Table Of Contents
Table of Contents Introduction ........1 Warranty .......... 9 Trailer Jack ..........1 Warranty Qualifications ......9 Accessories ..........1 Repair/Replacement Warranty ....9 This Booklet ..........1 Do not return the unit to the place of Manual Conventions ......2 purchase ............ -
Page 5: Introduction
Champion Power Equipment manufactures Congratulations on your purchase of a and sells accessories designed to help you Champion Power Equipment trailer jack. get the most from your purchase. To find out CPE designs and builds our products to more, please visit our web site at strict specifications. -
Page 6: Manual Conventions
NOTE If you have questions regarding your trailer jack, WARNING we can help. Please call our help line at 1-877- 338-0999. WARNING indicates a potentially hazardous could situation which, if not avoided, result in death or serious injury. Rev 80005-20131119... -
Page 7: Safety Rules
NEVER loosen, adjust or take apart the mount while the trailer jack is supporting any weight. Verify that the trailer jack is securely mounted and that all the hardware is in good working condition before each use. Rev 80005-20131119... -
Page 8: Controls And Features
Locking, pivoting mounting bracket to stationary storage. secure the jack for operation and stow the jack horizontally when not in use. Parts Included Your 80005 Trailer Jack ships with the following parts: Bolt Kit Bolt M10 x 110 mm 4 pieces Spring Washer... -
Page 9: Assembly
2. Remove the currently installed base. 2. Position the mounting straps (80005- 3. Insert the foot plate (80005-033) or the 11) on the opposite side of the tongue. swivel base (80005-028) into the tube 3. Insert the cap bolts (80005-012) -
Page 10: Operation
ALWAYS take precautions to protect against fully retracted. uncontrolled movement. 5. Pull the plunger pin (80005-022) and swing the trailer jack back to the stowed position, parallel to the trailer tongue. Towing 6. Align the holes and push the plunger pin back in to secure the jack. -
Page 11: Specifications
Specifications Specifications Capacity 1500 lbs (680 kg) Maximum Lift 24” (60.96 cm) Wheel Diameter 5.8” (14.7 cm) Wheel Width 1.97” (5 cm) Weight 18.83 lbs (8.54 kg) Parts Diagram 9 10 Rev 80005-20131119... -
Page 12: Parts List
Washer ø13 80005-024 Nylon Washer ø13 80005-025 Inner Tube Assembly 80005-026 Lock Nut M10 80005-027 Bolt M10 x 65 80005-028 Fork 80005-029 Bolt M10 x 16 80005-030 Lock Nut M12 80005-031 Wheel 80005-032 Bolt M12 x 80 80005-033 Foot Rev 80005-20131119... -
Page 13: Warranty
Warranty Qualifications Wear items such as filter elements, o-rings, etc. Accessory parts such as starting batteries, and Champion Power Equipment (CPE) will register storage covers. this warranty upon receipt of your Warranty Failures to due acts of God and other force Registration Card and a copy of your sales receipt majeure events beyond the manufacturer’s... -
Page 14: Notes
Notes Notes Rev 80005-20131119...
