Summary of Contents for VS V91 MAX
- Page 1 ZZ009174, ZZ009177 Rev. 12...
- Page 2 COPYRIGHT This document is the property of VS Security Products Ltd and it may not be reproduced, copied or exhibited to a third party without the written permission of VS Security Products Ltd.
-
Page 3: Table Of Contents
Introduction to the V91 MAX Degausser Installation Operation Indicators / Features Maintenance / Service Tables Parts List This document refers to V91 MAX part no’s; ZZ009174 208-220v 60Hz ZZ009177 220-240v 50Hz VS Security Products LTD ZZ009174, ZZ009177 Page 3 of 15... -
Page 4: Specification
WEEE directive. Registered Producer Number: WEE/JB2622WS VS Security Products reserves the right to amend or modify the specifications and design criteria applying to these products VS Security Products LTD... -
Page 5: Introduction To The V91 Max Degausser

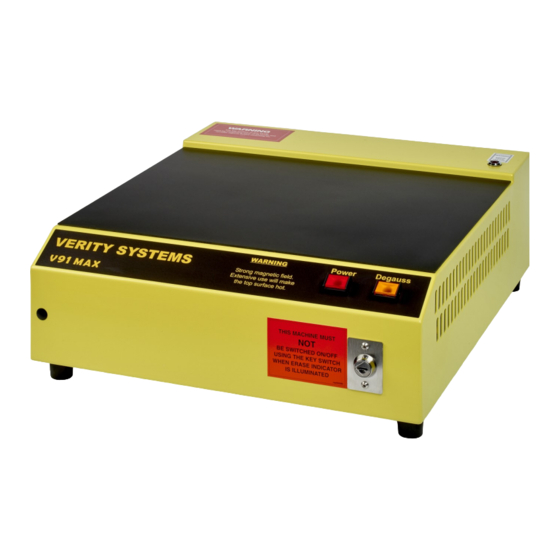

The V91 MAX degausser functions like a large electro magnet, its erasing field originating as leakage flux from a large gap in the field structure, the V91 MAX structure is basically a U section. The field intensity decreases rapidly as the distance from the degausser surface increases. -
Page 6: Operation
4.1 Turning on the V91 MAX The V91 MAX degausser has been designed for simplicity of operation in that it consists basically of a flat bed over which the magnetic media is passed. Control is via a single on/off switch and indicator. - Page 7 Reels with tape wider than 1/2” should be turned over then subject to a second rotation. It is recommended that the degausser is switched off between media erasure as this will reduce the internal heating and increase the operation time. VS Security Products LTD ZZ009174, ZZ009177 Page 7 of 15...
-
Page 8: Indicators / Features
5.3 Overheat Protection The high energy field developed by the V91 MAX necessitates the generation of a considerable amount of heat. The de- gausser coil is monitored for excessively high temperatures and should this condition occur its operation will be inhibited until the coil has cooled sufficiently. -
Page 9: Maintenance / Service
However the tuning capacitors and the degaussing coil are not spared items and if found to be faulty the unit should be returned to VS Security Products for repair. To access the components inside the degausser the laminate cover must be removed. -
Page 10: Tables
7.1 Basic Fault Finding Table The table below assists fault finding down to component levels. However, should the degaussing coil or tuning capacitors be found to be faulty it is recommended that the unit be returned to VS Security Products for repair. Function... -
Page 11: Parts List
SW100070 Security Key Switch IND2 OI100017 Flashing LED RP200013 220ohm Resistor RS100076 Relay Base RS100077 24v AC Relay SD100025 Rectifier Diode TX100069 Transformer CC100071 100µF 63v Capacitor XX003064 V91 Top VS Security Products LTD ZZ009174, ZZ009177 Page 11 of 15... - Page 12 SW100070 Security Key Switch IND2 OI100017 Flashing LED RP200013 220ohm Resistor RS100076 Relay Base RS100077 24v AC Relay SD100025 Rectifier Diode TX100069 Transformer CC100071 100µF 63v Capacitor XX003064 V91 Top VS Security Products LTD ZZ009174, ZZ009177 Page 12 of 15...
- Page 13 8.3 Circuit Diagram (ZZ009177, 50Hz) VS Security Products LTD ZZ009174, ZZ009177 Page 13 of 15...
- Page 14 8.4 Circuit Diagram (ZZ009174, 60Hz) VS Security Products LTD ZZ009174, ZZ009177 Page 14 of 15...
- Page 15 VS SECURITY PRODUCTS LIMITED VS AND ASSOCIATES Unit 17, Pegasus Court 3160, Texas Hill Road North Lane Placerville Aldershot California GU12 4QP 95667...
