ALPHA-STIM M Quick Start Manual

QUICK START GUIDE

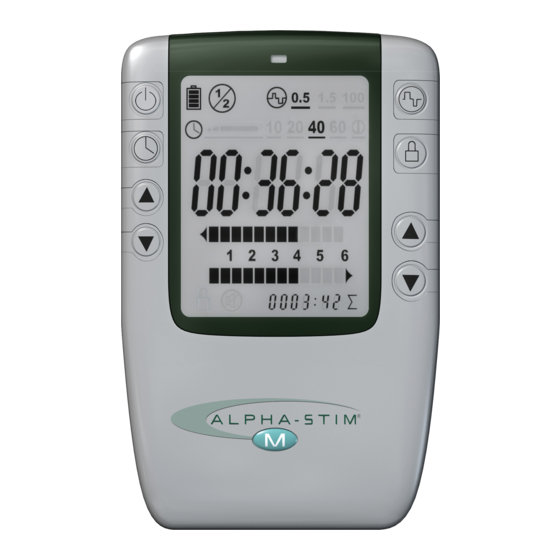

ALPHA-STIM M: SMART PROBES
1
Power Button
3
Timer
4
Change Intensity
(Channel 1)
Intensity Level
(Channel 1)
5
1. Power on device
2. Set frequency to 0.5 HZ
3. Set timer to the 10 second
probe setting
4. Set intensity on the channel
in use
5. First treat in a large "x" pattern,
beyond the treatment area (e.g.,
the entire leg for knee pain, the
entire back for back pain)
IFU-QG-001
®
[
6 7
6. Treat in a small star pattern by
applying the probes close in, around
and through the area being treated,
at about 6 different angles of approach
7. Treat the same body part on the
opposite side of the body in at least
2 places (e.g. "x" pattern)
8. Connect the two sides of the body
2
Frequency
Lock
Change Intensity
(Channel 2)
Intensity Level
(Channel 2)
8
For how-to videos, visit www.alpha-stim.com/training
For free clinical support, call 1-800-367-7246

PLACEMENT TIPS

Probes should be
placed on opposite
sides of the body, so the
current goes through the
area of pain
Repeat treatment as
necessary, varying
probe positions but
always directing the
current between the
probes through the area
being treated
Continue treatment until
pain is completely gone
or maximum relief is
achieved
After Treatment
Follow every treatment
with CES using Alpha-
Stim earclips
When done, remove and
discard earclip pads
Clean earclips with
alcohol, let dry, and
replace 4 earclip pads for
the next treatment
