Summary of Contents for Aquametro Oil & Marine Viscosity VC312

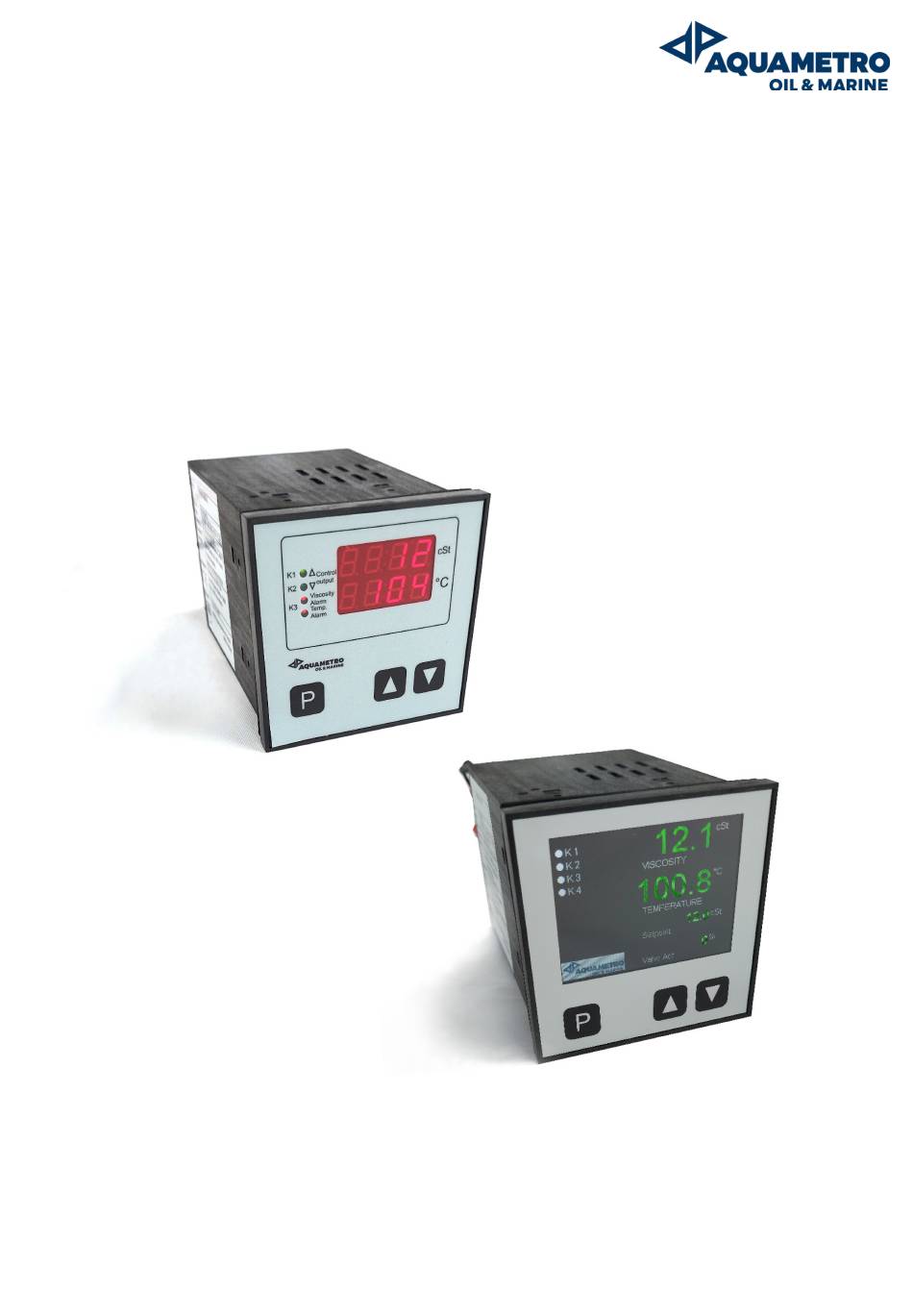

- Page 1 Version: VD 7-475 02.2021 Installation and Operation Manual Viscosity Control System Viscosity Controller VC312/VC322/VC622/VC722 Fuel Viscosity System VCS – Viscosity Controller...
-
Page 2: Table Of Contents
Content Introduction ..........................3 Liability disclaimer ....................................3 Safety precautions ....................................3 Receiving and storage requirements ............................4 Application ............................ 4 Description of Viscosity Controller ............................... 4 Controller installation / implementation ................... 5 General ........................................5 3.1.1 Planning ......................................6 3.1.2 Installation...................................... -
Page 3: Introduction
1 Introduction Thank you for your decision to work with Aquametro Oil & Marine Viscosity Control System (VCS). This manual describes the installation, commissioning and use of Viscosity Control System. For additional information, please contact your local sales agent info@aquametro-oil-marine.com www.aquametro-oil- marine.com. -
Page 4: Receiving And Storage Requirements
IMPORTANT SAFETY INFORMATION WORK SAFE SYMBOL This symbol will appear in this manual at all remarks for operational safety, where risks for health and life of personnel exist. Observe these points and proceed with caution in these cases. Cautions should be identified to other users ATTENTION NOTICE This symbol will appear in this manual where special attention must be paid in order to maintain a correct operating procedure and to avoid damage to the... -
Page 5: Controller Installation / Implementation
Continuous control or Three-point-step control switchable depending on the state of a binary input VC622 2 information signal outputs 2 additional contacts Double continuous control optional 3 Controller installation / implementation 3.1 General Figure 4-1: Controller type - Display 1-Display for relay function 2-Descriptive text for displayed value 3-Digital value displays 4-Unit of display... -
Page 6: Planning
Measuring inputs / ranges: Pt100 or standard signal, range 0 to 400°C resp. adjustable, preadjustment 4 to 20 mA / 0 ai1: to 50 cSt Pt100 or standard signal, range 0...400°C resp. adjustable, preadjustment 4 to 20 mA / 0 ai2: to 200 °C VC622/722 only... -
Page 7: Installation
3.1.1.1 Installation checklist Verify the contents of the product shipment to confirm that you have all parts and information necessary for the installation. Make sure that all electrical safety requirements are met for the environment in which the controller will be installed. -
Page 8: Electrical Wiring
3.1.3 Electrical wiring Plug bar on the back face of the controller; connect up the controller at the rear following the wiring diagram; wire cross section max. 1.5 mm To avoid cross interference all low voltage measuring lines and pilot wires must be encased in a shielded cable (the shielding must be earthed one-sided) The control leads must be fused externally to protect the output relays. -
Page 9: Display And Operation Level
4.2 Display and operation level Setpoint value setting Briefly press the button (do not hold) A flashing frame with the description SP shows the activated setpoint level. The upper text display shows the parameter name “SP=” and the adjusted value, the lower text display optionally shows a description text. -
Page 10: Parameter Settings Level
4.4 Parameter settings level Access from the operating level Depending on the controller type, the operating level has to be unlocked with a switch on the back panel of the device. After polling (see instructions for level PARA 1 / 2), a flashing frame with the description PAR1 / PAR2 shows the activated parameter level. -
Page 11: Configuration Level
BRGH Brightness display (30 to 100) DSP1 Variable shown in first display line (10 mm) (OFF / SP / Y / IST..) DSP2 Variable shown in second display line (10 mm) (OFF / SP / Y / IST..) DSP3 Variable shown in third display line (10 mm if DSP4=OFF, otherwise 3 mm) (OFF / SP / Y / IST..) DSP4 Variable shown in fourth display line (3 mm) (OFF / SP / Y / IST..) - Page 12 Language selection of the menu text (Deutsch, English, User def, Off) English CONF Selection of the configured controller function (if existent) return to operating mode: Briefly press the button or: continue to the following settings: press the -button and hold it >...
- Page 13 Selectable switching functions (depending on version): For setting please refer to configuration level under REL* Switching functions for trailing contacts: LC A Break contact on either side of setpoint (Limit comparator). Relay drops out as deviation increases (Aus = off) LC E Make contact on either side of setpoint (Limit comparator).
-
Page 14: Manual Optimization
4.6 Manual optimization An optimum adaptation of the control parameters (P, I, D) is necessary in order to balance an appearing deviation as quickly, non-oscillating and exactly as possible, according to the given operating conditions. Generally these adjustments require a lot of professional knowledge that cannot be replaced by this brief information. -
Page 15: Maintenance And Repair
5 Maintenance and repair 5.1 Calibration All our Viscomaster Systems are calibrated in the factory. An accuracy check and recalibration is offered at Aquametro Oil & Marine, this is usually dependent on customer, operator or regulation requirements. This interval depends largely on the operating conditions, process liquid and the application the system is installed in. -
Page 16: Spare Parts
Before working on the hydraulics: put the system or section out of operation close the stop valves release the pressure put a suitable tray underneath the connection to be worked on be prepared for spillage, have absorbent at hand Cleaning of Viscosity Controller: do not use any aggressive solvents rinse hydraulic part of flow meter thoroughly Aquametro Oil &... -
Page 17: Troubleshooting
6 Troubleshooting 6.1 Controller problems and recommended actions Problem Possible causes Recommended actions Err 1...6 Fault on measuring input nr. … check measuring lines for short circuit or breakage check measuring input by connecting a RTD Err 55 Fault on loading the parameter; press any key, the controller starts in emergency operation... -
Page 18: Process Troubleshooting
6.2 Process troubleshooting Problem Possible causes Recommended actions Viscosity reading Normal process noise Check your process conditions. oscillating Two-phase flow Check for two-phase flow, Deposition or coating, especially stratification, or settling. Install a asphaltenes, on the tines pump. Check for environmental Contaminants in the process fluid conditions that produce stratification (e.g., a heat source). - Page 19 P = proportional band Xp (%): Lower value = longer impulses (three-point step control), more sensitive reaction, Higher value = shorter impulses (three-point step control), less sensitive reaction. Examples: Oscillating temperature/viscosity without distinct initial overshoot: P (Xp) too low Setpoint is reached very slowly after initial overshooting: P (Xp) to high I = Integral action time Tn (min): Lower value = shorter impulse gaps (three-point step control), faster balancing...
-
Page 20: Decommissioning, Dismantling And Disposal
7 Decommissioning, dismantling and disposal CAUTION The surfaces of the device/system and the medium may be hot. Risk of burns! Carry out work only on cooled devices/systems. Work may only be performed by authorized specialists in accordance with the applicable regulations. Use appropriate protective equipment. -
Page 21: Disposal
7.4 Disposal At the end of its life cycle, this product should be disposed of according to local regulations regarding waste recycling or disposal. Batteries and rechargeable batteries shall be recycled separately. The separate collection and recycling of used products will help to conserve natural resources, and ensures that they are disposed of in a way that does not cause damage to the environment and nature. -
Page 22: Dimensional Drawings
8.2 Dimensional drawings 8.3 Electrical connection diagrams 8.3.1 VC312 controller connection Detailed connection diagram is made in project drawings. VCS – Viscosity Controller... - Page 23 VCS – Viscosity Controller...
- Page 24 VCS – Viscosity Controller...
- Page 25 VCS – Viscosity Controller...
- Page 26 VCS – Viscosity Controller...
-
Page 27: Vc622 (322/622/722) Controller Connection
8.3.2 VC622 (322/622/722) controller connection VCS – Viscosity Controller... - Page 28 VCS – Viscosity Controller...
- Page 29 VCS – Viscosity Controller...
- Page 30 VCS – Viscosity Controller...
- Page 31 VCS – Viscosity Controller...
- Page 32 Aquametro Oil & Marine AG Aquametro Oil & Marine GmbH CH-4106 Therwil, Switzerland DE-18119 Rostock, Germany info@aquametro-oil-marine.com info@aquametro-oil-marine.com www.aquametro-oil-marine.com Phone +41 61 725 44 00 Phone +49 381 382 530 00 VCS – Viscosity Controller...
