Massaggio Esclusivo 2
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Esclusivo 2 and is the answer not in the manual?

Questions and answers

Related Manuals for MASSAGGIO Esclusivo 2

Summary of Contents for MASSAGGIO Esclusivo 2

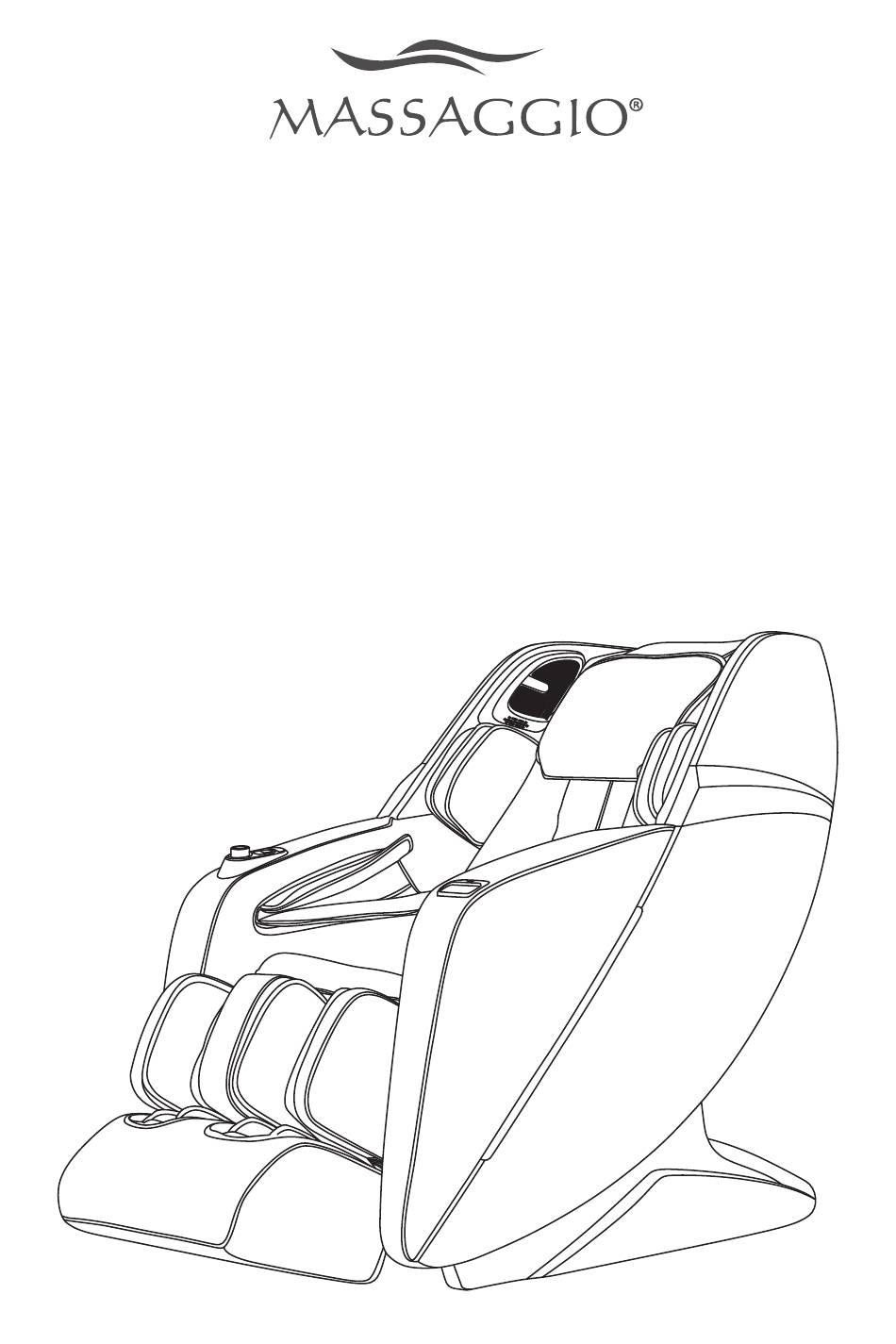

  • Page 1 Massaggio Esclusivo 2 User manual...

  • Page 3: Table Of Contents

    Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. Note: Our Company reserves the right to revise the design and description of this product without any further notice.

  • Page 4: Safety And Maintenance

    Safety and maintenance 1. Important Safety Warning. Don’t allow children to touch moveable part of this product. Please use well-grounding power supply suited to this product. Please pull out the plug after use or before cleaning to avoid injury or damage to the product.
  • Page 5 Safety and maintenance 4. Safety. Check the voltage if it is suitable to the specification of this product. Don’t use wet hand to pull the plug. Don’t make water go inside this product to avoid electric shock or cause damage to this product.

  • Page 6: Use Safety Warning

    Use safety warning Warning When the footrest lifting, people should not apply pressure on the footrest to avoid the massage chair falling forward to damage the product or cause personal injuries Prohibit pressing Warning Before sitting on the massage chair, Please make sure the massage hand cannot place in the seat position, so as avoiding the massage hand to damage the product or cause personal buttocks injuries.
  • Page 7 Use safety warning Warning Do not strive to pull out the control cable or power cord during standby or power- onstate to avoid product damaged or electrocution accidents. Advise you unplug the controller cable and power cord and put away after you use the chair. Warning When turning on the Zero Gravity lying function, be sure to notice whether there are children or pets under the massage table under the bottom of the calf and the...

  • Page 8: Name And Function Of Components

    Name and function of components 1. 3D digital speakers (voice control install in left speaker) 2. Pillow pad 3. Ion air generator 4. Upper arm air bag component 5. Remote controller 6. Arm air bag component 7. Handrail shortcut button 8.Salient massage with magnetic therapy 9.

  • Page 9: Function

    Function This product is designed with a group of intelligent and silent 3D massage hand that can move up and down and four-wheel drive. There are five kinds of simulated massage modes such as shiatsu, kneading, tapping, kneading and tapping. It can automatically detect the shoulder position.

  • Page 10: Remote Interface Introduce

    Remote interface introduce Manual remote controller interface Note: Manual remote controller shows the color, massage function and massage function icon typesetting. Please be subject to the actual products! 1. TFT color display 12. Shoulder position adjustment 2. Massage status information display 13.
  • Page 11 Remote interface introduce Manual controller button 1. Power button: turn on or off massage chair 12. Lying down button: massage chair link down 2. Adjustment button: enter the massage 13. Zero Gravity button: adjust massage chair function selection interface zero gravity 3.

  • Page 12: Method Of Usage

    Method of usage 1. Switch power supply on Diagram of the switch Diagram of line Diagram of plug in position of power supply 2. Massage function control operation 1). Czuwanie ·After the massage chair cannot enter any mode operation in standby mode. 2).
  • Page 13 Method of usage ·After testing the shoulder position, sounded with “di-di-di” notification tone, you can adjust the shoulder position by press up or down button according to users’ height in small scale. There have 11 levels for shoulder adjustment. If without adjustment in 10 seconds, then into the massage function automatically.
  • Page 14 Method of usage 3). Stop button ·In massage process, press “stop” button, all the massage function will stop; press it again, it will go with massage function before stop. If the time exceeded 20 minutes, all the massage function will turn off. Massage function Massage function stop status...
  • Page 15 Method of usage 5). Automatic function (automatic button also can press directly to automatic function interface) ·Press “menu” button to enter main menu interface, choosing automatic function icon: Fast massage, Comfort massage, Relax massage, Stretch massage, Full Body massage, Spinal massage, Neck & Shoulder massage, Back & waist massage and full air pressure.
  • Page 16 Method of usage 6). Manual mode (manual button directly enter manual mode interface) ·Press “menu” button to enter main menu interface, choose manual mode icon: include massage mode, massage position, air pressure and other massage function. ·Press “left” of “right” button to change submenu, then press “up” or “down” button to choose massage function, press “return”...
  • Page 17 Method of usage Note: click stop icon, all massage function will stop; choose one massage mode icon will start one massage mode. Function Description Knead Speed Speed and width Five levels speed can be adjusted Knead&Tap Speed Three levels width can be adjusted Shiatsu Speed and width Knock...
  • Page 18 Method of usage Full back Upper back Lower back Function Description When choosing fixed point and partial massage Fixed Massage at fixed point modes, you can adjust the massage range by Partial massage back and Part pressing “up” or“down” button. forth in small range Full back massage back and forth Full back...
  • Page 19 Method of usage Function Description Upper air Switch on or off upper body air pressure massage function Switch on or off lower body air pressure massage function Lower air D. Man ual m ode (manua l button-extra) ·Manual mode(extra): Include heating, foot roller, Ion air generator , Bluetooth and so on massage function.
  • Page 20 Method of usage · Manual mode (extra-calf kneading) ·Press “OK” button to choose switch on or off calf kneading massage function. ·Press “up” or “down” button to choose other massage function, press “return” button to return the operating information interface. ·...
  • Page 21 Method of usage · Manual mode (extra- Ion air generator) ·Press “OK” button to choose switch on or off Ion air generator massage function. ·Press “up” or “down” button to choose other massage function, press “return” button to return the operating information interface. ·...
  • Page 22 Method of usage 7). Adjustment function (adjust button-directly press “adjust” button to enter adjustment function interface) ·Press “menu” button to enter main menu interface, choose adjustment function icon: Include massage mode, massage range, massage intensity and other massage adjustment function. ·Press “left”...
  • Page 23 Method of usage A. Adjust ment fun ction (adju st b ut ton-massage mode) ·Adjustment function(massage mode): adjust massage mode include speed, width, intensity and so on. ·Press “up” or “down” button to choose speed or width function, press “OK” button to adjust speed and width levels.
  • Page 24 Method of usage C. Adjustment function (adjust button-intensity) ·Adjustment function (adjust button-intensity): Include upper body air pressure, lower body air pressure, foot roller. There have three levels to adjust. ·Press “up” or “down” button to choose air pressure intensity or foot roller intensity, press “OK”...
  • Page 25 Method of usage 9). Setting ·Press “menu” button to enter main menu interface, choose “setting” function icon, enter setting interface include language, backlight, lock screen and so on. ·Press “left” or “right” button to switch to submenu. Press “up” or “down” button to select function or press “return”...
  • Page 26 Method of usage A. Setting (lang uage) ·Setting (language): set Chinese or English language. ·Press “up” or “down” button to choose one language, press “OK” button to confirm. B. Setting (lock screen) ·Setting (lock screen): Press “OK” button to adjust lock time, lock time have five kinds: 15 seconds, 30 seconds, 1 minute, 2 minutes or never lock, press “OK”...
  • Page 27 Method of usage C. Setting (backlight) ·Setting (backlight): five levels for light adjustment. Press “return” button return to operating information interface. 10). Equipment information ·Press “menu” button to enter main menu interface to choose equipment information function, display current equipment information. ·Press “up”...
  • Page 28 Method of usage 11). Zero Gravity button ·Press “Zero Gravity” button to adjust zero gravity position, choose “Zero Gravity I” or “zero gravity II” according to your requirement. Function Description Zero Gravity I: adjust to Zero Gravity I angle. Zero Gravity II: adjust to Zero Gravity II angle. 12).
  • Page 29 Method of usage 13). Angle adjustment button Function Description Calf rest up button: press to rise, release to stop; when it finished, it will automatically detect foot length. Calf rest up button: press to go down, release to stop; when it finished, it will automatically detect foot length.

  • Page 30: Handrail Shortcut Button Introduction

    Method of usage 3. Handrail shortcut button introduction 1. Power button: switch on(press it in seconds to stop) or off massage chair. 2. Link adjustment button: link adjust back rest up and down. 3. Calf rest lifting button: adjust calf rest up and down. 4.
  • Page 31 Method of usage Function Description Power button: press in a second to stop, press in 3 seconds to switch on or off. If the pause time exceeds 20 minutes, all massage function are automatically turned off. Linkage lie down button:rotate button clockwise allow backrest goes down slowly, in the meantime, the calf goes up, release the button will cease backrest goes down and calf goes up.

  • Page 32: Voice Control Instruction

    Method of usage 4. Voice control instruction ·When the massage chair is open or in standby mode, say "hi, Alice" or press the voice control wake-up button on the right armrest to wake up the voice control function. ·After the successful wake-up, the massage chair will reply “I am here”. At this time, the voice control entry corresponding to the function is realized within 6 seconds.

  • Page 33: Turn Off Power, Stop Massage

    Method of usage 5. Turn off power, stop massage ·During the massage process, press the power switch key to immediately turn off all massage functions, the seat back and the foot pad are reset, the massage time is up, and all massage functions are immediately turned off, and the seat back and the foot pad are not reset.
  • Page 34 Method of usage ·The connector from the rail steel frame is inserted firmly with the armrest connector, and the air hose connector is also inserted into the position (Figur e 3). ·After connecting with the corresponding connecting lines, gently insert the middle of the steel pipe in the middle of the guide r ail steel frame into the bottom of the guide rail steel frame, and take care to avoid the tracheal collapse (Figure 4).

  • Page 35: Calf Installation

    Method of usage ·Fasten the five metal fasteners on the trim to the corresponding buckles of the armrest (Figure 9). 8. Calf installation 1. Cut the connecting wire and the air pipe tie fixed on the steel pipe first (Figure. 1). 2.
  • Page 36 Method of usage 3. Insert the rotating inner sleeve and the rotating outer sleeve into the left side of the calf and the right side of the lower leg (note: the large step must face inward) (Figure 3). 4. Open the calf support hinge cover on the left and right mounts of the massage chair (Figure 4).

  • Page 37: Head Cushion And Backrest Pad's Dismounting And Use Manual

    Method of usage 7. After the screw is locked, insert the rear slot of the calf cover into the pin, and then press the front end of the calf cover down and the rotating shaft. the cover is completely parallel and the calf is installed (Figure 7) 9.

  • Page 38: Floor Protection

    Method of usage 10. Floor protection ·Put the heavy massage chairs on the wood floor for a may damage the floor, so please place a carpet or other object to avoid this damage. Caution: Do not move the chairs with its wheels on wood floor, rough ground or in a narrow space.

  • Page 39: Product Specification

    Product specification Model: Massaggio Esclusivo Configure: 2 Name: Massage Chair Rated voltage: 220-240V~ 50Hz/60Hz Rated power input: 220W Rated time: 20Min Safety structure: Class I Material introduction: PVC, PA, steel parts and electric & electron parts MATERIAL LEATHER CLOTH WOOD...
  • Page 40 SAVE THESE INSTRUCTIONS Dear user, you can contribute to environmental protection. Be environmentally responsible and return your used equipment to the relevant collection point designated by your local administration. The materials used to manufacture the device may be valuable recyclable resources and, if disposed of incorrectly, can pose a risk to the natural environment.
