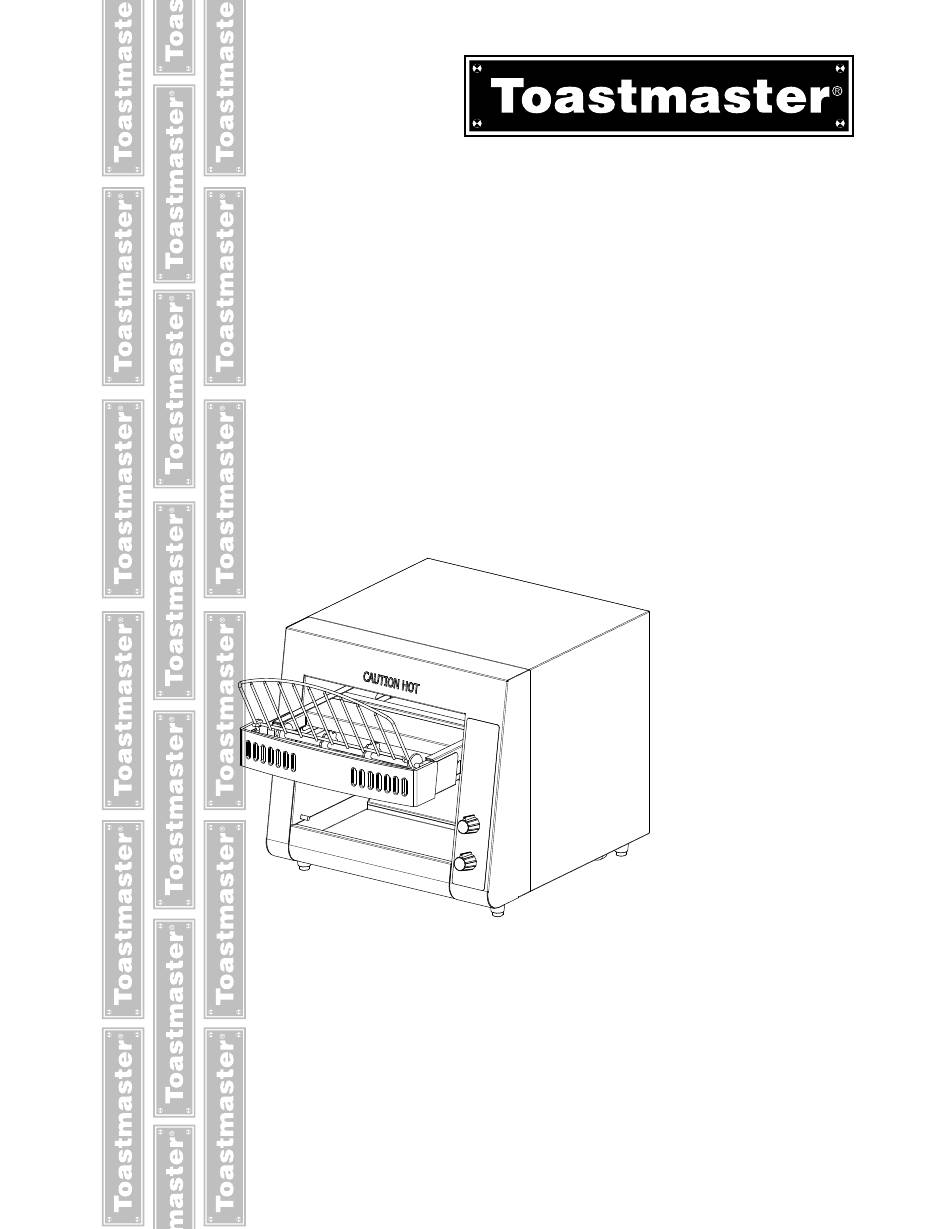

- Page 1 CONVEYOR TOASTER MODEL TCT1, TCT2, TCT3 Installation and Operation Instructions 2M-Z19588 Rev. - 12/16/2014 IL2904 TCT1-120V...
-
Page 2: Safety Symbols
WARNING RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Toastmaster factory supplied parts relieves the manufacturer of all liability. Toastmaster reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... -
Page 4: Daily Operation
DAILY OPERATION ROTARY POWER SAVER SWITCH For toasters equipped with a Rotary Power Saver Switch, turn clockwise or counterclockwise to get in the following positions. FULL POWER When in this position your equipment is at full power and ready to use. OFF ROTARY Two off positions are provided, a single rotation to either direction will shut the unit off. -
Page 5: Toaster Components
CLEANING Preventive maintenance for your Toastmaster toaster consists of the following recommended cleaning procedures. To keep your toaster in its top operating condition, these steps should be performed on a daily or weekly as indicated. -
Page 6: Maintenance Procedures
MAINTENANCE PROCEDURES A. REPLACING HEATER TUBES 1) DISCONNECT UNIT FROM POWER SOURCE. 2) Remove the enclosure, by removing the screws on both the back and bottom of the unit and lifting the enclosure's back up first and pulling away from the unit. 3) Remove heater tube wires from terminal block connection, keeping top and bottom wires separate. -
Page 7: Troubleshooting Guide
3) Call the Toastmaster Service Help Desk at 314-678-6347. B. UNIT HAS HEAT ONLY ON ONE SIDE, CONVEYOR BELT TURNS FREELY. 1) Call the Toastmaster Service Help Desk at 314-678-6347, as heating element may need replacing. C. CONVEYOR WILL NOT TURN, UNIT HEATS PROPERLY. - Page 8 TOP HEAT LETTER DESCRIPTION SWITCH - POWER SAVER SPEED CONTROL MOTOR - CONVYEOR BOTTOM HEAT COOLING FAN TOP HEATING ELEMENTS BOTTOM HEATING ELEMENTS FOR 230V BLACK (BROWN 230V) CEE7-7 GREEN FOR 120V NEMA 5-15P NEMA 5-20P WHITE (BLUE 230V) 2M-Z9775b...
- Page 10 35 36 Model: TCT1 10” Conveyor Toaster SK2820, Rev. - 10/15/14...
-
Page 11: Parts List
PARTS LIST December 16, 2014, Rev. - Model: TCT1 10” Conveyor Toaster Fig. No Part Number Quantity Description Application HA-Z13166 BODY COVER HA-Z13180 BACK PANEL 2C-200004 SCREW 6-32X5/16 THP SS HA-120260 TOP BAFFLE ASSEMBLY 2C-6349 SCREW #8X3/8 B THP STL NP... - Page 12 PARTS LIST October 20, 2014, Rev. - Model: TCT1 10” Conveyor Toaster Fig. No Part Number Quantity Description Application 2E-Z9737 TERMINAL BLOCK - ELEMENTS 2A-200284 E-CLIP 5/16 2C-200149 FLAT WASHER 5/16 ID 31NWX HN-160020 BELT, CONVEYOR 10 X 27 EZ...
- Page 13 40 8 Model: TCT2, TCT3 Conveyor Toaster SK2836 Rev. - 12/16/2014...
- Page 14 KNOB, CONTROL CAP 2R-200769 KNOB, POWERSVR-INF.CTRL HA-100560 TRAY, PULL OUT, QCS, 10 PS-120367 CRUMB TRAY ASSY TCT2, TCT3 2R-Z19200 BURN GUARD - TOASTMASTER 2C-200101 WASHER #6 SPLIT SS 2C-Z9875 SCREW, 6-32 X 5/8 PH,TH, 2B-200763 LOADUP, 10 EURO,WIRE 2A-202904 SHAFT, 210HX IDLER...
- Page 15 PARTS LIST December 16, 2014, Rev. - MODEL: TCT2 & TCT3 Conveyor Toaster Fig. No Part Number Description Application 2M-Z10833 LABEL,-W.D.SERIES TCT3-208V, 240V 2M-Z10834 LABEL,W.D.,PARALLEL TCT2-120V, 120C HA-120241 CORD SET ASSEMBLY QCS-1 TCT2-120V HA-120242 CORDSET ASSY CUL20 TCT2-120C HA-120245 CORDSET ASSY NEMA 6-20P TCT3-208V HC-402134 NC10H SHUTTER ROD...
- Page 16 The foregoing is Toastmaster’s sole and exclusive obligation and the end user sole and exclusive remedy for any action including breach of contract or negligence. In no event shall Toastmaster be liable for a sum in excess of the purchase price of the equipment, or for any prospective or lost profits of the end user.
