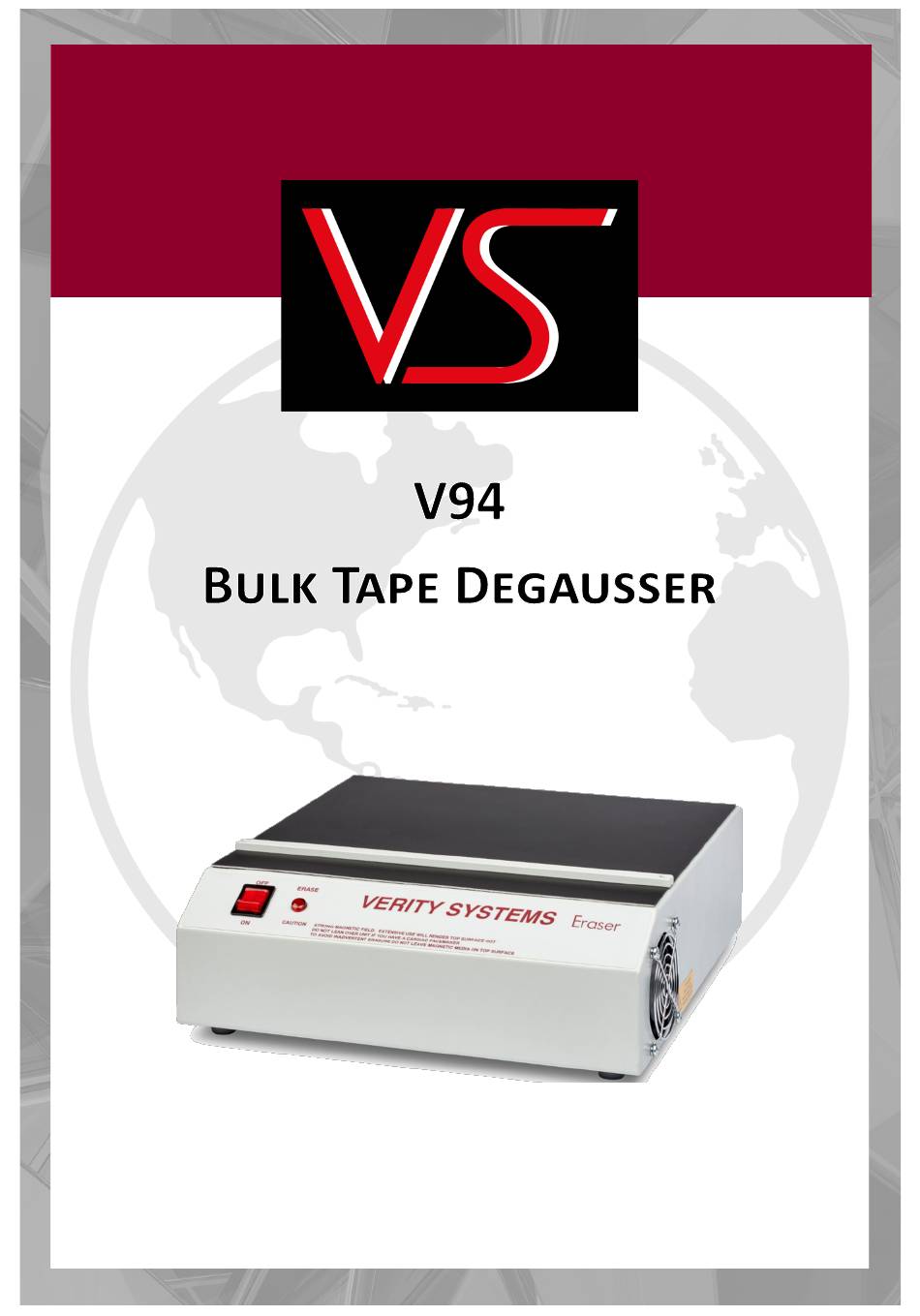

- Page 1 ZZ009407, ZZ009413, ZZ009415 Rev. 11...
-
Page 2: Safety Recommendations
COPYRIGHT This document is the property of VS Security Products Ltd and it may not be reproduced, copied or exhibited to a third party without the written permission of VS Security Products Ltd. - Page 3 Introduction to the V94 Bulk Tape Degausser Installation Operation Indicators / Features Maintenance / Service Tables Circuit Diagram This document refers to V94 Bulk Tape Degausser part no’s; ZZ009407 208v 60Hz ZZ009415 220-240v 50Hz ZZ009413 115v 60Hz VS Security Products LTD...
-
Page 4: Media Handling
WEEE directive. Registered Producer Number: WEEE/JB2622WS VS Security Products reserves the right to amend or modify the specifications and design criteria applying to these products VS Security Products LTD... -
Page 5: Section 3: Installation

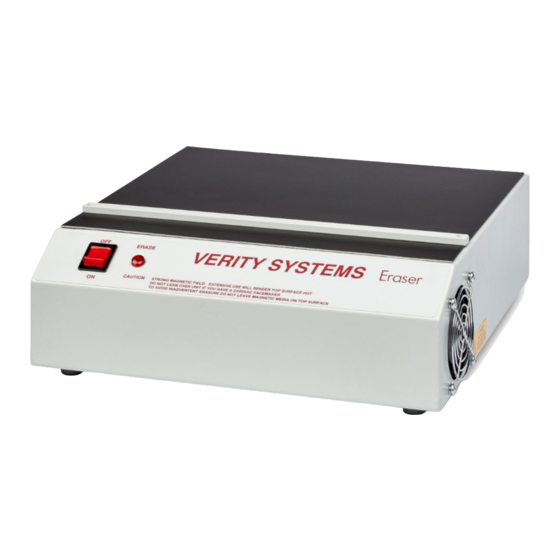

The V94 functions like a large electro magnet, its erasing field originating as leakage flux from a large gap in the field structure, the V94 structure is basically a U section. The field intensity decreases rapidly as the distance from the degausser surface increases. -
Page 6: Section 4: Operation
4.1 Turning on the V94 The V94 degausser has been designed for simplicity of operation in that it consists basically of a flat bed over which the magnetic media is passed. Control is via a single on/off switch and indicator. -
Page 7: Section 6: Maintenance /Servicing
However the tuning capacitors and the degaussing coil are not spared items and if found to be faulty the unit should be returned to VS Security Products for repair. To access the components inside the degausser the laminate cover must be removed. - Page 8 The table below assists fault finding down to component levels. However, should the degaussing coil or tuning capacitors be found to be faulty it is recommended that the unit be returned to VS Security Products for repair. NOTE: The degaussing coils are powered as part of a tuned resonant circuit. This allows quite high circulating currents to be generated within the degaussing coils, with minimal current consumption from the mains voltage supply.
-
Page 9: Section 8: Circuit Diagram
SECTION 8: CIRCUIT DIAGRAM VS Security Products LTD ZZ009407, ZZ009413, ZZ009415 Page 9 of 10... - Page 10 VS SECURITY PRODUCTS LIMITED VS AND ASSOCIATES Unit 17, Pegasus Court 3160, Texas Hill Road North Lane Placerville Aldershot California GU12 4QP 95667...
