Next SANTIAGO 165487 Assembly Instructions Manual

Living set
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Actual product size

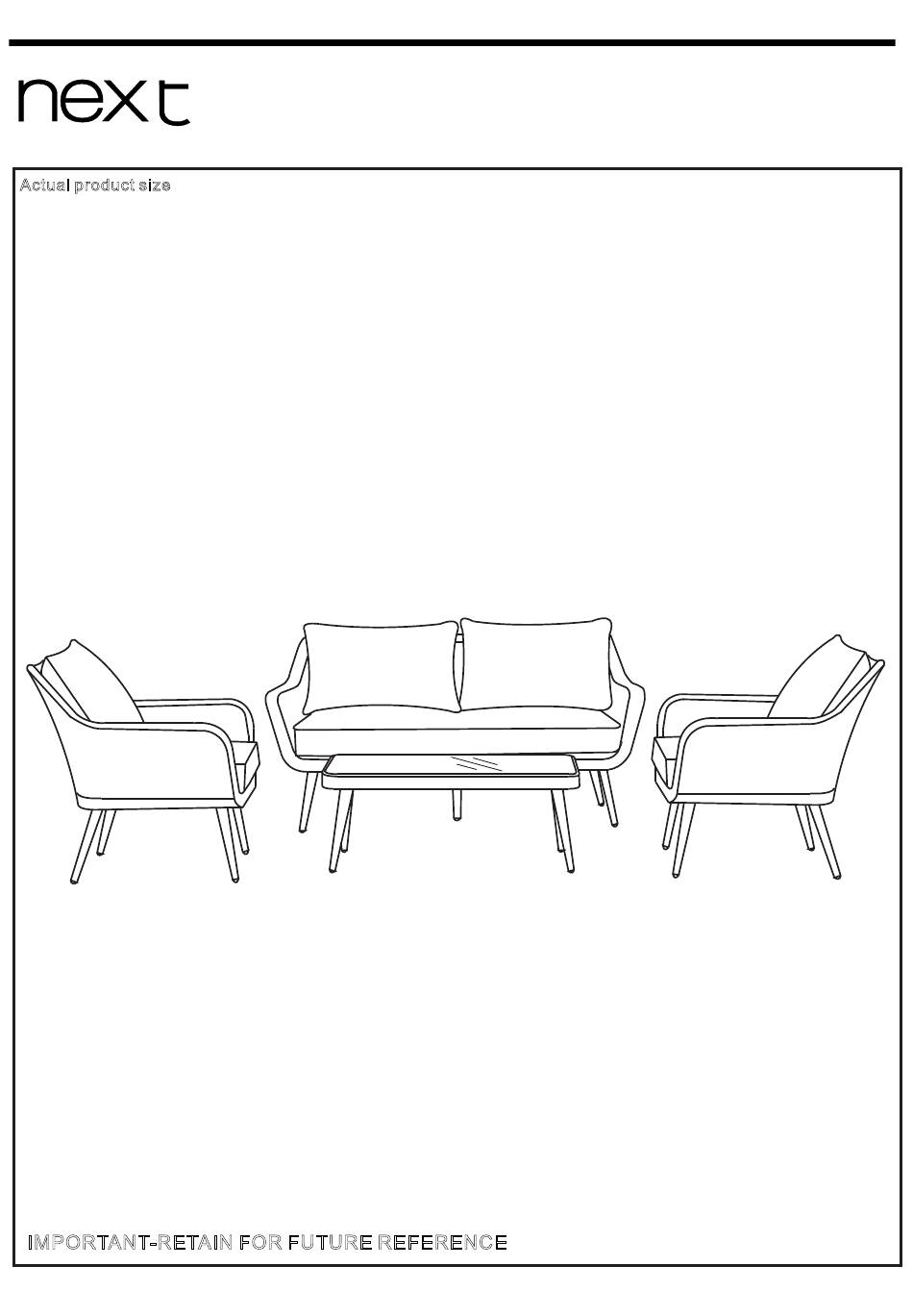

H84x W79 x L163cm (2-SEATER )
H45xW102xL60cm (CAFFE TABLE)
H84XW76XL79cm (SIDE CHAIR)
IMPORTANT-RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
Version 1
SANTIAGO LIVING SET
165487
Assembly instructions
Need Help?
With:Assembly instructions
Missing or damaged parts
CALL:0333 777 8999
