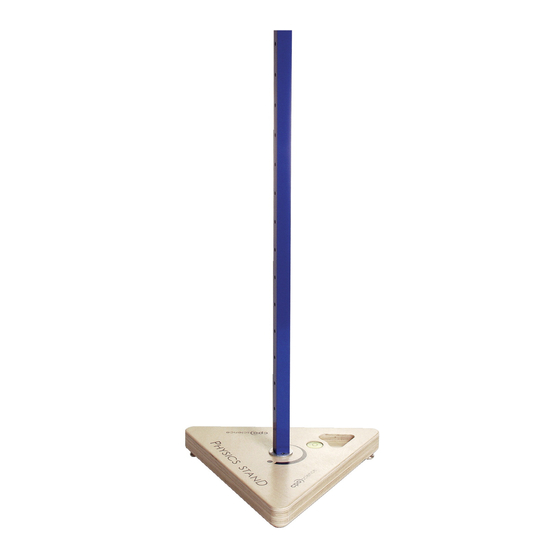

Physics Stand
Assembly Instructions
Assembly Instructions
The Physics Stand Base & Bolt
1. Put bolt through base from the bottom side of the Physics
Stand base.
The bolt should be pushed through the triangle-shaped opening
so that the threaded end protrudes through the top.
The bolt will seat as shown below.
base
(bottom)
2. Place the washer over the protruding threads on the top side
of the base.
3. Thread the pole onto the protruding end of the bolt.
Continue until snug.
©2011, CPO Science
base
(bottom)
base
(top)
Attaching the Pole
To secure tightly, place wrench (metal rod) through
holes in pole (as shown below) and turn clockwise
while holding base.
Place the Physics Stand on a table.
base
(top)
pole
washer
Marble Storage
There is a pocket in the Physics Stand base
for storing marbles or
other small parts during
an investigation.
Assembly instructions continue on page 2.
Page 1
bolt
wrench
base
692-8501 03.11
Advertisement
Summary of Contents for CPO Science Physics Stand
- Page 1 (bottom) 2. Place the washer over the protruding threads on the top side bolt of the base. Marble Storage There is a pocket in the Physics Stand base for storing marbles or base (top) other small parts during an investigation.
- Page 2 Leveling the Physics Stand Certain investigations, like the Rollercoaster and Straight Track, benefit from a level Physics Stand. To compensate for an uneven table, use the leveling feet to adjust each corner up or down until the bubble is centered in the level.
