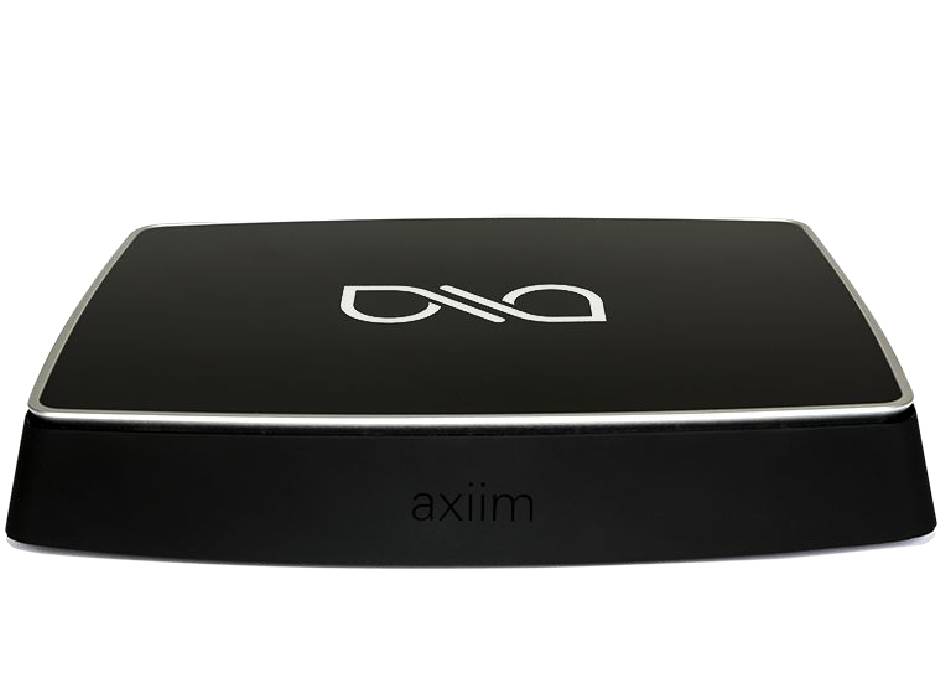

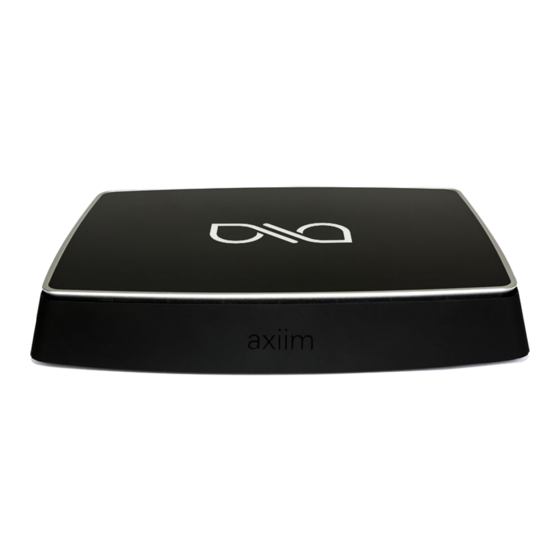

Axiim Q UHD Media Center
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q UHD and is the answer not in the manual?

Questions and answers

Summary of Contents for axiim Q UHD

  • Page 1 Axiim Q UHD Media Center Owner's Manual...

  • Page 2: Table Of Contents

    Table of Contents Warnings and Hazards • Codec support • First Run Setup • • Bluetooth • Audio/Video Remote • – – Status – Per Speaker Settings – Custom Keys Distance Settings – – Battery Level Speaker Settings • – IR Support –...
  • Page 3 Select “Skip” to continue to the next step in the wizard. WIRELESS SPEAKER SETUP: The Axiim Q UHD will search for speakers automatically. Once the Q is finished searching the number of speakers found will be displayed. Press “Continue” if the number of speakers are correct on the screen.
  • Page 4 Warning: This will erase ALL settings and return the unit back to its original factory settings. You may perform a factory reset of the software on the Axiim Q UHD wireless audio system by follow this procedure. Press the “Q” icon on the remote to bring up the on screen HDMI selector menu.
  • Page 5 Audio Settings Equalizer: The Axiim Q UHD has a global 10 band graphic equalizer and 10-band graphic equalizer per-speaker for fine tuning audio. Please note, you cannot use both equalizers at the same time. Example: If you make changes to the per-speaker EQ and then decided to edit the global EQ your per-speakers EQ settings will not be applied.
  • Page 6 HDMI Audio Return Channel: Audio Return Channel, or HDMI-ARC, enables a TV to send the Axiim Q UHD audio over HDMI. HDMI-CEC must be enabled for ARC. HDMI Audio Out: When this option is enabled the Axiim Q UHD will also send audio to your TV via HDMI as well as any connected speakers.

  • Page 7: Speaker Settings

    Follow the on screen menu to the “Q” -> Settings -> Speakers -> Setup. When you select “Setup” the Axiim Q UHD will search for wireless speakers. Once the Q is finished searching the number of speakers found will be displayed. Press “Continue” if the number of speakers are correct on the screen.
  • Page 8 Speaker Settings Speaker Volumes: Using the speaker volume adjustment you can change the volume of each audio channel. Based on the location relative to the listening position you may want to increase or decrease the volume of some channels to achieve more balance multi-channel experience.
  • Page 9 Speaker Settings Speaker Distance adjustment: The speaker distance adjustment allows you to add time delay to each audio channel. Adding time delay will allow you to optimize the loudspeaker’s acoustic for your unique multi-channel configuration. Press the “Q” icon on the remote to bring up the on screen HDMI selector menu.

  • Page 10: Hdmi Connections

    (Consumer Electronics Control). CEC allows devices to identify and send controls to each other. HDMI Output: The Axiim Q UHD has one HDMI 2.0a output to connect to your display or TV. The HDMI output supports HDMI-CEC and ARC (Audio Return Channel). HDMI-CEC:...

  • Page 11: I/O Connections

    I/O Connections Connectors: The Axiim Q UHD has four USB 2.0 ports. Two are located on the side of the Q and the two are located on the back. IR connector: The 3.5mm "stereo" plug is compatible with most IR extender cables.The Axiim Q UHD can be controlled via an IR...

  • Page 12: Codec Support

    Codec Support DTS-HD Master Audio ● DTS-HD ● ● Dolby TrueHD ● ● Dolby Digital Plus Dolby Digital ● License and Trademark Information Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS,DTS-HD, the Symbol, &...

  • Page 13: Bluetooth

    Axiim Q UHD to compatible Bluetooth headphones. Pairing: To pair a Bluetooth device with the Axiim Q UHD, enable pairing mode on the device (see your device’s users manual) and go to Settings->More->Bluetooth on the Axiim Q UHD. Wait for the device to appear in the left column of the Bluetooth.

  • Page 14: Remote

    Support: IR remote control is supported by plugging an Infrared (IR) receiver extender cable into the back of your Axiim Q UHD. An IR receiver extender cable is a thin cable with an IR receiver on the end and a 3.5mm jack on the other end.

  • Page 15: Wifi

    WiFi The Axiim Q UHD supports connecting to WiFi networks up to 802.11ac 2x2 for firmware update, setting of system time, and connection to the Axiim Q mobile app. The following security protocols are supported: ● ● ● WPA2 To connect to a WiFi network navigate to: Q->Settings->More->Network->WiFi.

  • Page 16: Personalize Your Q

    Personalize your Q Personalize: Allows you to make settings specific to your aesthetic preferences. To personalize your Q follow the on screen menu to “Q” -> Settings -> More -> Personalize. Device Name: You can change the device name to something more detailed like “Living Room”.

  • Page 17: Firmware Update

    Firmware Update Installing new firmware: To check for and install a firmware update: Make sure that the system is connected to the internet. Press the “Q” icon on the remote to bring up the on screen HDMI selector menu. Follow the on screen menu to the “Q” -> Settings -> More -> Updates. Wait as the system checks for any available updates.

  • Page 18: Support

    Bluetooth or USB keyboard to enter text. You may also submit a diagnostic report from the Axiim Q mobile app. Select SEND. You will receive an ID to reference if the diagnostic was submitted successfully.
