小熊的话
Bear's Words
本产品是我公司自主研发的蒸煮饭盒系列产品。外观采用新颖长方形结构、
饭盒为方形造型不锈钢内胆操作方式为非常简单的一键控制方式、安全可靠。蒸煮饭盒是
用蒸汽加热食物，蒸煮出来的饭菜既保持了食物的营养不流失又保持了食物的干净卫生，
是理想的健康用品。让"小熊"与您分享健康未来。
This product is a series of cooking lunch boxes independently developed by our company. The
appearance adopts a novel rectangular structure, and the lunch box is a square-shaped stainless
steel inner container. The operation mode is a very simple one-key control mode, which is safe
and reliable. Cooking lunch box is to heat food with steam. The cooked food not only keeps the
nutrition of the food from losing but also keeps the food clean and sanitary. It is an ideal health
product. Let "Bear" share a healthy future with you.

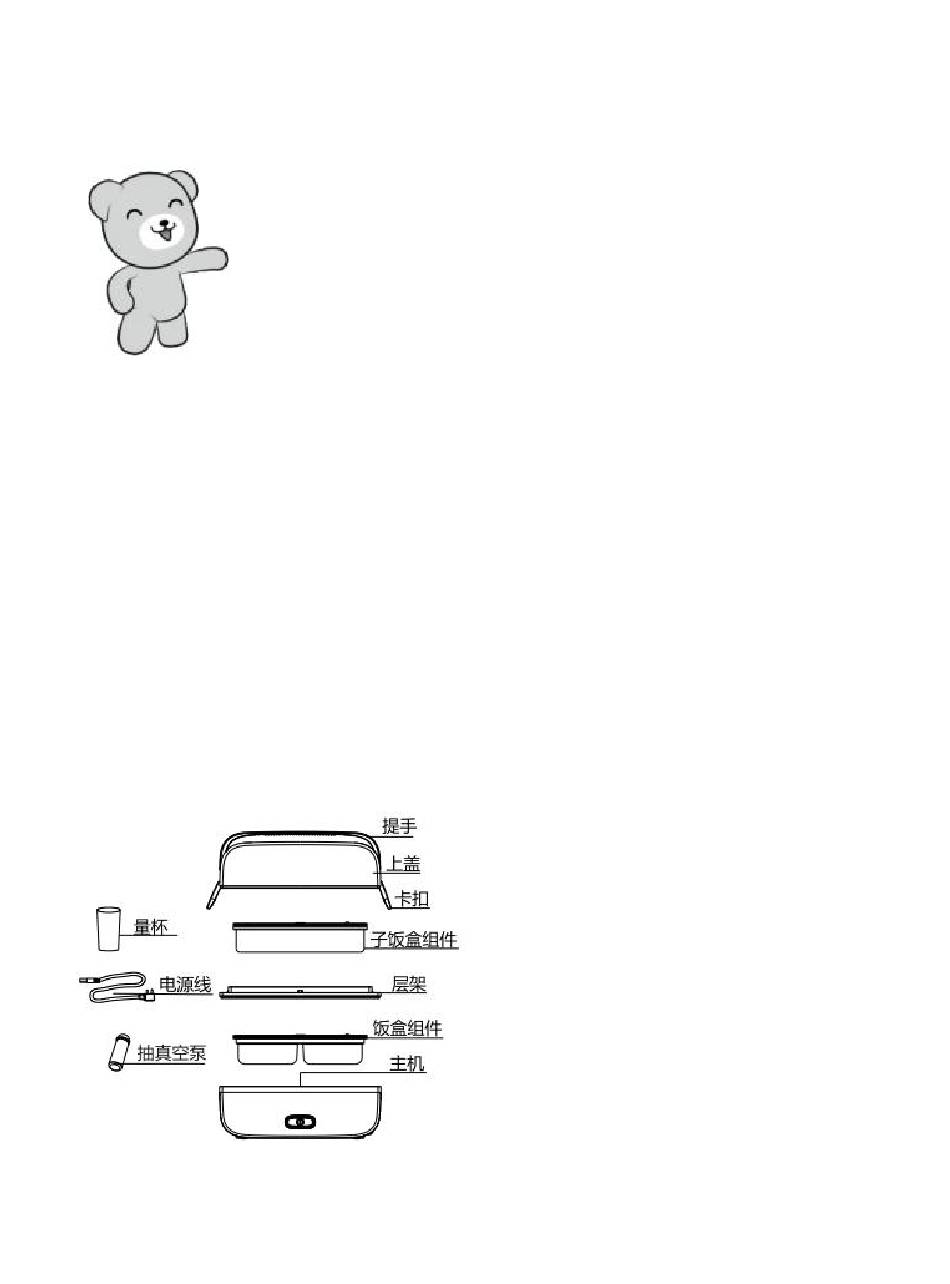

各零部件名称
Name of Each Component
Measuring cup
电源线
Power cord
抽真空泵
Vacuum pump
1
量杯
提手
Handle
上盖
Advertisement
Related Manuals for Bear DFH-B10G1
Summary of Contents for Bear DFH-B10G1
- Page 1 Cooking lunch box is to heat food with steam. The cooked food not only keeps the nutrition of the food from losing but also keeps the food clean and sanitary. It is an ideal health product. Let "Bear" share a healthy future with you. 各零部件名称...
- Page 2 Upper cover 卡扣 Buckle 子饭盒组件 Sub-lunch box assembly 层架 Layer frame 饭盒组件 Lunch box assembly 主机 Host...
-
Page 3: Main Features
主要特点 Main Features 1. 新颖长方形外观，精致工艺。 2. Novel rectangular appearance, and exquisite workmanship. 3. 一键操作；简单，方便、快捷。 4. One-key operation; Simple, convenient and fast. 5. 具有自动防干烧断电保护功能。 6. Has automatic protection function against dry burning and power failure. 7. 采用蒸煮方式烹饪，保持了食物的鲜味、营养。 8. The cooking method is adopted to maintain the delicate flavor and nutrition of the food. 9. - Page 4 Warm Tip: Please take off the sealing cover when cooking the food. 用量杯往机体内加入适量的水(具体参照说明书配比表)，把要加热的饭菜放入配套的不锈 钢饭盒内，将双格饭盒放入机体内，然后盖好层架，将单格饭盒放层架上盖上上盖，也可根 据需求只放一个饭盒使用。 Fill proper amount of water into the body by using the cup (refer to the proportion table of the instruction manual for details), put the food to be heated into the matching stainless steel lunch box, put the double-compartment lunch box into the body, then cover the shelf, put the single- compartment lunch box on the shelf and cover the upper cover, or put only one lunch box for use according to requirements.
- Page 5 功能使用： Function: 1. 接通电源，按下开关按钮，如指示灯亮则已按下按钮。此时指示灯亮表示蒸煮饭盒已经 开始工作。 2. Turn on the power supply and press the switch button. If the indicator light is on, the button has been pressed. At this time, the indicator light is on to indicate that the cooking lunch box has already started to work.
- Page 6 放置食物 Place food 盖上盖子 Cover 用真空泵抽气 Pump air with a vacuum pump...
- Page 7 盖饭盒盖子时检查中间硅胶单向阀，保证单向阀与盖子装配到位。 When covering the lunch box cover, check the middle silicone check valve to ensure that the check valve and the cover are assembled in place. 真空气囊状态指示 Vacuum Airbag Status Indication 正常状态，保险塞上凸 真空状态，保险塞下 Normal state, fuse plug up Vacuum state, fuse plug down 3.
- Page 8 机体内 食物内 加水量 煮熟程 蒸煮时 加水量 产品型 食物份 (mL) (mL) 组合方式 蒸煮食物类别 度 间(分钟) Intra- 备注 号 量 Combination Category of Degree Water Cooking Comments Product Quantity body Mode Cooked Food Content Time Model of Food Water Cooking In Food (Minutes) Addition (mL)
- Page 9 温馨提醒： Warm Reminder: 1. 以上热饭菜、煮饭时，请不要盖配套的饭盒盖。 2. Please do not cover the matching lunch box when cooking the above hot meals. 3. 机器在工作时，请勿触碰上盖。避免烫伤! 4. Do not touch the upper cover when the machine is working. Avoid burns! 注意事项 Precautions 1. 使用前应检查产品铭牌所标额定电压是否与您使用的电压一致。 2.
- Page 10 14. When the product is used, a large amount of steam will be generated and ejected from the steam port, so be careful to be scalded by the steam. 15. 蒸煮食物完成，机体内还有大量蒸汽，不要立马打开上盖，断电等候几分钟再打开，以防 蒸汽烫伤。 16. When cooking food is finished, there is still a large amount of steam in the body. Do not open the upper cover immediately.
-
Page 11: Maintenance
保养和维护 Maintenance 1. 使用完毕后，请及时从电源插座上拔下电源插头。 2. After use, please unplug the power plug from the power socket in time. 3. 饭、菜盘、层架、上盖可用洗洁精和海绵清洗，请勿使用硬质钢丝清洗，以免损坏表面。 4. Rice, dish plates, shelves and upper covers can be cleaned with detergent and sponge. Do not use hard steel wire to clean, so as not to damage the surface. 5. - Page 12 d. Is the tail plug of the power cord of the cooking lunch box connected and plugged tightly with the tail seat of the body? e.开关按钮是否闭合。 e. Whether the switch button is closed. f.水是否烧干，机体正处于防干烧保护状态? f. Is the water dryout and the body is in a state of protection against dry burning? 2.米饭煮的太熟或太生：...
-
Page 13: Product Specifications
产品规格 Product Specifications DFH-B10G1/DFH-B10Q3/DFH-B10E4 DFH-B10J2/DFH-B10E4 产品型号 Product Model 220V~ 额定电压 Rated Voltage 50HZ 额定频率 Rated Frequency 1.0L 额定容量 Rated Capacity 270W 额定功率 Rated Power 240X125X150mm 外观尺寸 Appearance Dimensions 产品图片 Product Picture “食品接触用“材料明细 Details of "Food Contact" Materials 本产品与食品接触材料均符合相关食品安全国标要求： The contact materials between this product and food all meet the requirements of relevant national food safety standards: 部件名称... - Page 14 Part Name Material Standard GB4806.9-2016 不锈钢 06cr19Ni10(304) 饭盒容器(不锈钢) Lunch Stainless steel 06cr19Ni10 (304) container (stainless steel) GB4806.7-2016 碳酰二氯与 4，4`-环己亚基双(2-甲基苯酚)和 4，4`-亚 饭盒盖 异丙基二苯酚(双酚 A)和二[4-(1-甲基-1-苯基乙基)苯 Lunch box cover 基]酯的聚合物(PC) Carbonyl dichloride, polymer with cyclohexycoverene bis (2-methylphenol) and 4, 4'- isopropycoverene diphenol (bisphenol A) and bis [4-(1- methyl-1-phenylethyl) phenyl] ester (PC) G84806.7-2016 层架/上盖/主体...
- Page 15 GB4806.9-2016 传热盘/PTC 发热体 聚四氟乙烯(铁弗龙)涂层/YZALSi11Cu3 GB4806.10-2016 Heat transfer Polytetrafluoroethylene (Teflon) plate/PTC heat Coating/YZALSi11Cu3 element GB4806.11-2016 换气阀/密封圈 聚二甲基硅氧烷(硅橡胶) exchange Polydimethylsiloxane (silicone rubber) valve/sealing ring 温馨提示：不同型号使用的食品接触用部件材质可能不同，请以实际购买机型为准。 Warm Tip: The materials of food contact parts used in different models may be different, please refer to the actual purchased model. 使用条件：不锈钢部件避兔接触强酸性物质。...
