Page 1

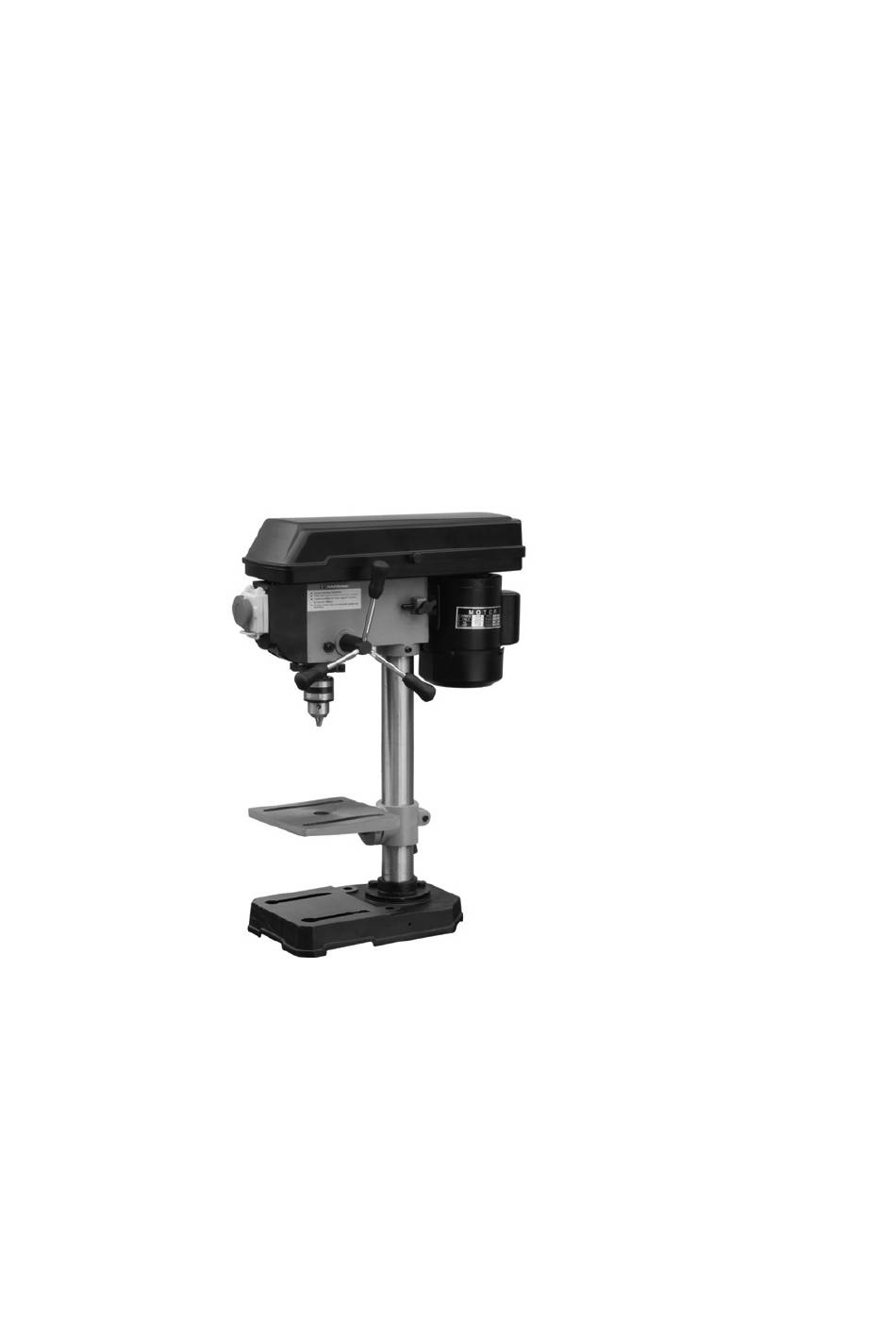

Operator’s Manual 8inch Drill Press CAUTION : Read and follow all Safety Rules and Operating Instructions before First Use of this Product. Keep this manual with tools.
Page 2
Technical Specification Drill press Voltage / Frequency: 230V / 50Hz Motor Power 250W Chuck 13mm Spindle Travel 50mm Spindle Taper Speed Change 5 Speeds Speed 620-2620 1/min Dist. Spindle to Column 105mm Table Size 160x160 mm Base Size 290x190 mm Column 46mm Total Height...
Page 3
impact-resistance lenses. They ARE NOT safety glasses. 13. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and it frees both hands to operate tool. 14. DISCONNECT TOOLS before servicing; when changing accessories such as blades, bits, cutters, and the like. 15.
frees both hands to operate tool. 14. MAKE SURE all clamps and locks are firmly tightened before drilling. 15. SECURELY LOCK THE HEAD and table support to the column, and the table to the table support before operating the drill press. 16.
should be grounded while in use to protect operator from electrical shock. WARNING: This machine is for indoor use only. Do not expose to rain or use in damp locations. GUIDELINES FOR EXTENSION CORDS USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
Page 6
TABLE OF LOOSE PARTS Unpack carton; check you machine to see parts listed below: 1. Head assembly 7. Chuck guard assembly 2. Base 8. Depth stop assembly 3. Table assembly 9. Feed handles 4. Table locking handle 10. Hex wrench 5.
Page 7
Make sure the head slides down over the column as far as possible. Align the head with the base. 3.2. Using the hex wrench, tighten the set screws in the left and right side of head. Set screw 4. Install three feed handles into the hub. 5.
Page 8
7. Install the depth stop assembly Slide the end of the threaded rod through the bracket on the side of the head, then through the hole in the top of the chuck guard. Secure it with the nut provided, from beneath, thereby locking the depth stop to the chuck guard fixed on the Spindle.
Page 9
2. Feed Depth Adjustment Lower spindle assembly to desired depth and spin down the adjust Lock nut nut. Spin down the lock nut and lock it against the adjust nut. The drill is now set to drill holes to your predetermined depth. The depth scale shows the depth of spindle drops Adjust nut 3.
Page 10
Turn the chuck key clockwise to tighten the jaws. Warning: To avoid injury or accident by the chuck key ejecting forcibly from the chuck when the power is turned ON, always recheck and remove the chuck key before turning the power ON. For self-tighten drill chuck ...
MAINTENANCE MAINTAINING YOUR DRILL PRESS WARNING: For our own safety, turn the switch OFF and remove the plug from the power source outlet before maintaining or lubricating your drill press. Frequently blow out any dust that accumulates inside the motor with an air compressor or dust vacuum. A coat of paste wax applied to the table and column will help to keep the surface clean &...
