4x4 Surface Mount Single Header Raftered Pergola Kit
WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected
structure may result causing property damage, personal injury, or loss of life.
All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for
other structure construction purposes.

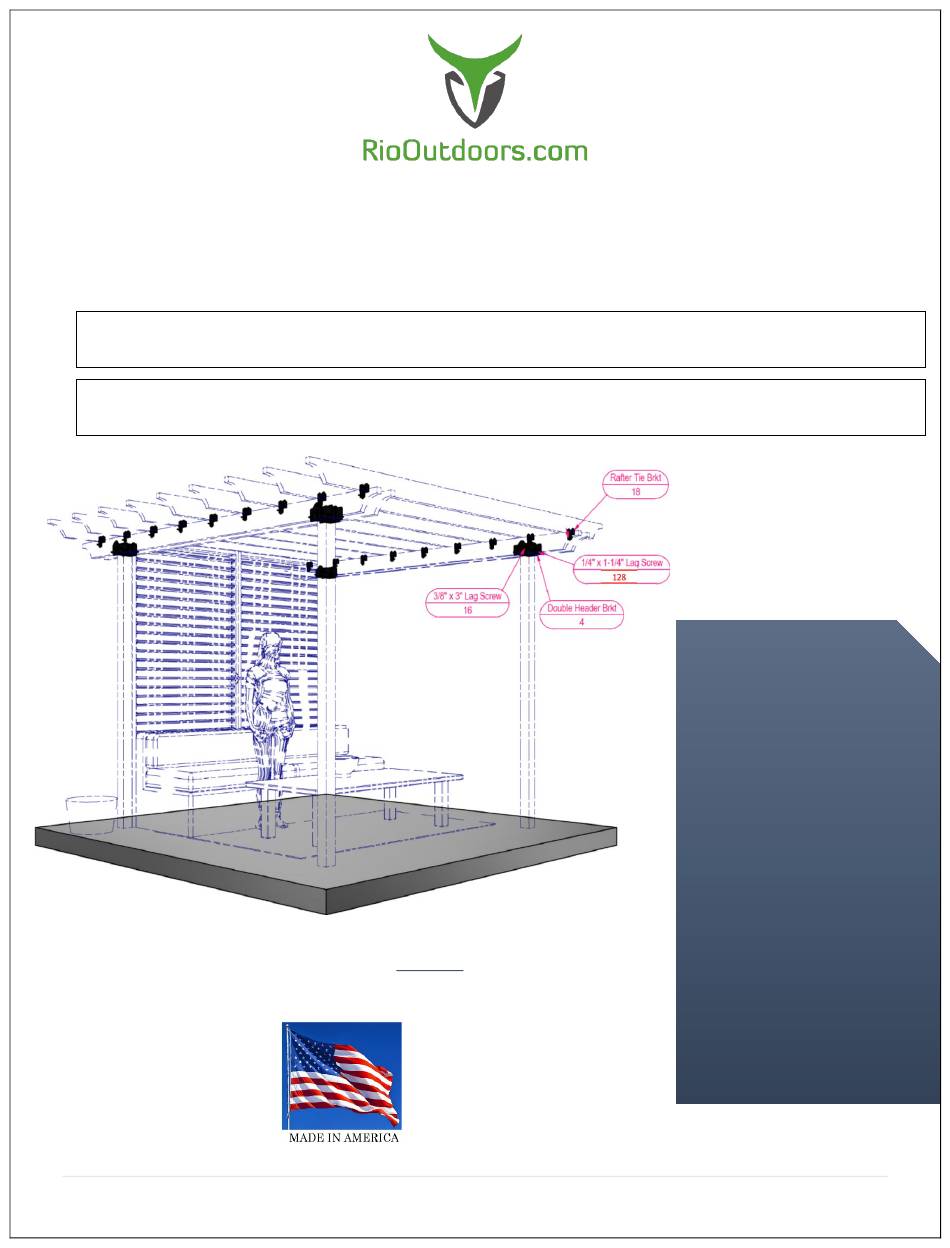

Figure 1: Items included in the kit, (
Items not included in this kit: wood, tools, some hardware.
1 |
P a g e
Installation Instructions
4P-DH
Pergola Kits
������������������������ ���� �������� ���� ����
������������������������ ���� ����
).
Thoughtfully engineered
Brackets eliminate all wood-
joinery skills requirements.
Skills required: footing &
post install, drilling pilot
holes and driving lag
screws into lumber.
Easy lift and place U-
channels eliminate need
for lifting equipment.
Super-easy assembly
work.
Self-aligning design
squares up structure
automatically.
Estimated Assembly
Time is less than 1 hour
(after posts are
installed).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4P-DH and is the answer not in the manual?

Questions and answers

Summary of Contents for RioOutdoors 4P-DH

  • Page 1 WARNING: If the information in these instructions is not followed exactly, weakening or failure of the erected structure may result causing property damage, personal injury, or loss of life. All brackets designed and sold by RioOutdoors.com are to be used for building pergolas only and are not to be used for other structure construction purposes.
  • Page 2: Table Of Contents

    ..11 UAL HEADER BRACKET INSTALLATION 1.8 H ........14 EADERS PREPARATION 1.2 T ........... 4 OOLS REQUIRED 1.3 C # 4P-DH ........5 ONTENTS OF 1.9 H ........19 EADERS NSTALLATION 1.4 L 1.10 I ........23 IST OF MATERIALS THAT YOU WILL SUPPLY...
  • Page 3: Safety And Warning Information

    GENERAL INFORMATION 1.1 SAFETY AND WARNING INFORMATION 1.1.1 Building Permit & Inspection Requirements We recommend that you consult with your local building permit office and obtain advice and any required building permits and inspection approvals from the local building inspection department or the local authority over building codes. 1.1.2 Other Cautions CAUTION: Adhere to all safety requirements.
  • Page 4: Tools Required

    1.2 TOOLS REQUIRED Listed below, are common tools required for pergola projects. These tools are not included in this kit. Your pergola project may not require all tools. Select and acquire the tools for your project from the “Required for” column in this table. Description Tool Purpose Required for...
  • Page 5: Contents Of Kit

    The contents of this kit are shown in the table, below. Before you begin your project, take an inventory of all items that you received from us. If any items are missing, contact us directly via email at info@RioOutdoors.com. Include your name and shipping address and your order number, if available.
  • Page 6: List Of Materials That You Will Supply Recommended

    1.4 LIST OF MATERIALS THAT YOU WILL SUPPLY, OR ARE RECOMMENDED This is the list of required materials which are not included in this kit. You will acquire these items locally for your project. Use this table to help you calculate your total project budget. Total Item Item...
  • Page 7: Post-In-Ground System

    1.5 POST-IN-GROUND SYSTEM 1.5.1 What is a Post-in-Ground anchoring system? As the term indicates, Post-in Ground, means that the vertical posts for a pergola are inserted deep into concrete footings and anchored in that way. The depth of the footing and the length of the post required to be embedded into the footing is determined by the maximum depth of the frost line for a particular area.
  • Page 8 1.5.2 Study the posts layout requirements. First, study the posts layout requirements. Spend some time planning, yourself, so you are fully familiar with the final size you desire for your poergola.Determine the exact location for each pergola post based on your pergola size. We have designed our pergola systems to eliminate the need to cut any 4x4 post or header members.
  • Page 9 1.5.3 Call 811. 811 is the national call-before-you-dig phone number. Anyone who plans to dig should call 811 or go to their state 811 center's website before digging to request that the approximate location of buried utilities be marked with paint or flags so that you don't unintentionally dig into an underground utility line.
  • Page 10: Ide Elevation Diagram

    1.6 SIDE ELEVATION DIAGRAM Based on the height of the post above ground level, the diagram below provides the side elevation profile for this pergola system. Post Height Dim B Above Ground 92 5/8 104 5/8 116 5/8 128 5/8 140 5/8 Dim A, above, is the height of the post above ground level.
  • Page 11: Ost -Top Dual Header Bracket Installation

    1.7 POST-TOP DUAL HEADER BRACKET INSTALLATION 1. Slide one Post-Top Dual Header Bracket over the 4x4 post top after aligning the headers receiver u-channels in the proper direction. Let gravity work and pull the bracket all the way down on top of the post. 2.
  • Page 12 3. Wrap a piece of electrical tape around the drill bit, spaced 1-1/4” from the drill bit tip. This will act as a hole depth indicator when you drill each pilot hole. Pilot holes should be drilled at least 1-1/4” deep. A little bit deeper is acceptable but do not drill less than the required 1-1/4”...
  • Page 13 5. Drive one ¼ x 1-1/4” SS Hex Lag Screw through the 5/16” hole into the pilot hole you drilled in step 4, using a 7/16” Socket and Rachet driver. Tighten down the screw. 6. Repeat steps 1 through 5 for each post-top dual header bracket. 13 | P a g e...
  • Page 14: Headers Preparation

    1.8.1 Header and Rafter Tail Designs Cutting Visit www.https://riooutdoors.com/rafter-tail-designs to see our collection of Rafter Tail designs. Based on your cosmetic preference and woodworking skill level, select a rafter tail design shape that you plan to cut yourself or you plan to outsource the design cutting.
  • Page 15 After you determine the lengths for the headers, it is time to prepare two headers to install the rafter tie brackets on. We have designed the rafter tie brackets to be auto aligning and simple to locate precisely. Follow these steps for easy rafter tie placement: 1.
  • Page 16 7. On the outer header, starting with the center pencil mark, add one rafter tie then work outward, skip every other pencil mark, and place a rafter tie on alternating pencil mark points. ON THE OUTER HEADER PLACE RAFTER TIES SKIP EVERY OTHER PENCIL LINE MARK 8.
  • Page 17 9. Drill 3/32” pilot holes in the center of the 5/16” holes in the Rafter Tie brackets. Two 5/16” holes exist on each side of the Rafter Tie Bracket. 10. Using a 7/16” Socket and Ratchet Driver, drive a ¼” x 1-1/4” Lag Screw through the two holes on each side of the Rafter to secure the rafter tie to the header.
  • Page 18 11. Repeat steps 9 and 10 for all rafter ties on both headers. Also, assemble two headers for the other side of the pergola using the same instructions. OUTER HEADER INNER HEADER 18 | P a g e...
  • Page 19: Headers Installation

    1.9 HEADERS INSTALLATION 1. Lift and place the outer header into the outer U-channels between two adjacent post-top brackets. OUTER HEADER 2. Center the header between the two posts by measuring the overhangs and moving the header until the overhang lengths on both sides are equal.
  • Page 20 5. Locate the two 5/16” holes, one on each wing extension on both sides of the post-top dual header bracket. Drill 3/32” X 1-1/4” deep pilot holes at the center of the 5/16” holes into both inner and outer headers for all four post-top dual header brackets.
  • Page 21 8. Prepare an 11/64” drill bit to drill a pilot hole for 3/8” X 3” Lag Screws. Wrap tape around the drill bit shaft 3” from the end of the drill bit. While drilling the pilot hole, the tape edge will indicate when you have reached the required depth. 9.
  • Page 22 10. Drive one 3/8” x 3” lag screw using a 9/16” socket and ratchet through the header and into the post through the pilot holes you drilled. Tighten all screws. TWO SCREWS ON THIS SIDE ALSO 1. Repeat steps 9-10 for all 7/16” holes in all decorated faces in the four dual header brackets at all four post tops. 22 | P a g e...
  • Page 23: Nstalling The Rafters

    1.10 INSTALLING THE RAFTERS 1. Starting at the center of the outer headers, lift and place one rafter on a matching pair of rafter tie brackets. Measure the rafter overhang on each side of the outer headers and center the rafter. CENTER RAFTER TIE 2.
  • Page 24 3. Using a 7/16” socket and ratchet driver, drive ¼” x 1-1/4” Lag Screws through the pilot holes you drilled in the header. Two ¼” x 1-1/4” Lag Screws are required on both sides of the header. 4. Repeat steps 1 to 3 and install all rafters and lag screws. 24 | P a g e...
  • Page 25 Was it easy to do? Did parts fit easily and properly? Do you like the quality of our products and design styles? Is your pergola structure sturdy and strong? Please go to RioOutdoors.com and provide us with your review.
  • Page 26: Conditions

    Warranty protects against defect in manufacture only, unless herein specified otherwise. Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at RioOutdoors.com’s option provided that the defective part is returned, if requested by RioOutdoors.com. Alternatively, RioOutdoors.com may at its own discretion fully discharge all its obligations under the warranty by refunding the verified purchase price of the product to the original purchaser.
  • Page 27: Imitations Of Liability

    Parts where the RioOutdoors.com logo has been altered, deleted, removed, or made illegible will void this warranty. Minor movement, expansion and contraction of the steel parts is normal and is not covered under the terms of this warranty.
