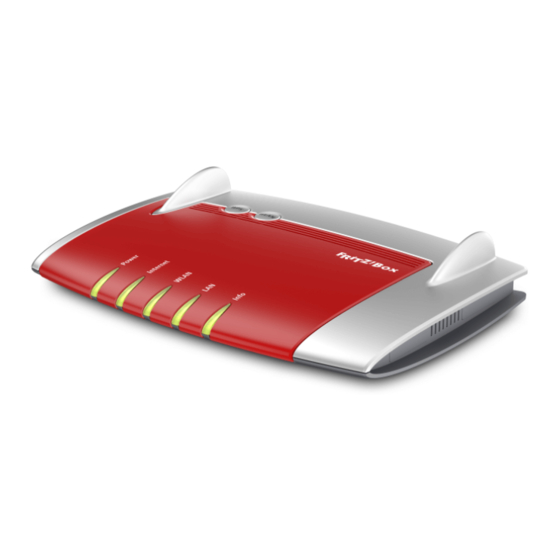

Summary of Contents for DIGIWEB Fritz!Box 4040
- Page 1 Quick Start Guide Fritz!Box 4040 / Fritz!Box 7560 Digiweb Electric Broadband...
-
Page 2: Table Of Contents
Introducing SIRO’s Optical Network Terminal (ONT) Page Step 2: Connect the 12V 2A DC Power Supply Unit (PSU) Page Step 3: Fritz!Box 4040 Connect the Ethernet Cable Page Step 3: Fritz!Box 7560 Connect the Ethernet Cable Page Step 4: Enable Wi-Fi Connection... -
Page 3: Step 1: Unpack Contents
Fritz!Box Quick Start Guide Welcome to your Quick Start Guide for Fritz!Box 4040 & Fritz!Box 7560. We would like to thank you for choosing Digiweb Electric Broadband - Powered by SIRO. We really appreciate your custom. Step 1: Unpack Contents You will find the following items included in your new Broadband Pack. -
Page 4: Introducing Siro's Optical Network Terminal (Ont)
Introducing SIRO’s Optical Network Terminal (ONT) SIRO’s Optical Network Terminal (ONT) establishes the handover point between SIRO’s network and the Digiweb network. Digiweb’s Fritz!Box directly connects to the ONT, thus establishing connectivity to the internet. PLEASE NOTE: SIRO’s Optical Network Terminal (ONT), wall socket and fibre cabling are the property of SIRO and must remain in-situ at the installed location. -
Page 5: Step 2: Connect The 12V 2A Dc Power Supply Unit (Psu)
Step 2: Connect the 12V 2A DC Power Supply Unit (PSU) to the Fritz!Box • Connect the PSU (B) to the Fritz!Box (A) as per above diagram. • Connect the PSU (B) to the nearest power socket. -
Page 6: Step 3: Fritz!Box 4040 Connect The Ethernet Cable
LAN port on the Optical Network Terminal (ONT). • Upon completing the above checks and where the Power and Internet lights on your Fritz!Box fail to go steady green, please contact the Digiweb Technical Support team as per contact details provided on the back of this Quick Start Guide. -
Page 7: Step 3: Fritz!Box 7560 Connect The Ethernet Cable
Fritz!Box fails to go steady green, please contact the Digiweb Technical Support team as per contact details provided on the back of this Quick Start Guide. Note: The Installation technician on behalf of Digiweb will complete this step for you during installation. -
Page 8: Step 4: Enable Wi-Fi Connection
Step 4: Enable Wi-Fi Connection For Windows PC / Laptop: • Click the windows button typically placed in the bottom left hand corner of your desktop. • Choose “Control Panel” • Choose “Network and Internet” • Choose “Network and Sharing” or “Network and Sharing Centre” • Choose “Change adapter settings” • Right click “ Wireless Network Connection” • Select “Enable”. DO NOT select “Disable” if adapter is already enabled. Note: Your computer setup and screen may differ from the above. For Tablet / Smartphone: • Go to settings > Wi-Fi > Ensure switch is on per Android and Apple iOS screenshots above. -
Page 9: Step 5: Activate Wireless Connection
Step 5: Activate Wireless Connection • Ensure that the WLAN LED is ON steady green as per above. • If WLAN LED is off press WLAN button once - (do not hold down) to activate WLAN. For Windows PC / Laptop: • Right click on the “Wireless Network Connection” • Select “Connect / Disconnect” For Tablet / Smartphone: • No additional steps required at this point. -
Page 10: Step 6: Choose Your Wireless Network
Step 6: Choose your Wireless Network For Windows PC / Laptop: • On the base of your Fritz!Box modem you will find the network name for example “FRITZ!Box 4040 AB” or “FRITZ!Box 7560 AB” • Select “FRITZ!Box 4040 AB” or “FRITZ!Box 7560 AB” SSID from the list currently appearing on your screen from Step 5. • Select the “Connect automatically” option so that your computer remembers the Wi-Fi network and automatically connects every time you turn on your computer. • Click “Connect” For Tablet / Smartphone: • Select “FRITZ!Box 4040 AB” SSID • Select “FRITZ!Box 7560 AB” SSID... -
Page 11: Step 7: Wi-Fi Network Security Key / Password
• Enter the “WLAN Network Key (WPA2)” into the “Security key” or “password” field on your device screen from Step 6. You can locate your unique “WLAN Network Key” on the sticker attached to the base of the Fritz!Box. • Click connect. All done. You should now be connected. Enjoy your Digiweb broadband. Please note: • The WLAN Network Key “12345678987654321234” shown in the example above is for illustration purposes only. • The Fritz!Box password “zigzag5481” shown in the example above is for illustration purposes only. It is NOT your Wi-Fi password / key. -
Page 12: Step 8: Broadband Talk Voip Phone Setup
WLAN DECT Step 8: Broadband Talk VoIP Phone Setup For Fritz!Box 7560 only If you have opted for Digiweb’s Broadband Talk VoIP telephone service, please connect your telephone to the “FON 1” port on the back of the Fritz!Box to start using your VoIP telephone service. The VoIP “Fon” light circled above will be steady green when Digiweb Broadband Talk VoIP is active. For more details on VoIP visit: http://www.digiweb.ie/support/phone-setup/... -
Page 13: Internet Connection Status
WLAN Network (SSID) WLAN Network (SSID) FRITZ!Box 4040 AB FRITZ!Box 7560 AB WLAN Network Key (WPA2) WLAN Network Key (WPA2) 1234 5678 9876 5432 1234 1234 5678 9876 5432 1234 FRITZ!Box Password FRITZ!Box Password zigzag5481 zigzag5481 Internet Connection Status • Open your Browser (Internet Explorer, Firefox, Chrome, etc) • Type 192.168.178.1 or http://fritz.box into the address bar of your... -
Page 14: Manual Configuration Settings
Manual Configuration Settings Please note that the Fritz!Box is pre-configured with the correct Digiweb settings. You should not be required to change these settings. A factory reset of the Fritz!Box as per page 17 will return the preconfigured settings at any point. However if configuring an alternate 3rd party router, the... -
Page 15: Troubleshooting - Fritz!Box
Please power off Fritz!Box, then power back on, allow up to 5 minutes to configure. (VOIP Phone Service) Flashing: You have new messages in your Fritz!Box voicemail inbox. On (Solid): A telephone connection on your Digiweb VoIP service is active. DECT Off: DECT Phone not connected. On (Solid): DECT Phone connected. -
Page 16: Troubleshooting - Siro's Optical Network Terminal (Ont)
ONT and OLT ing the ONT Yellow LAN port is good. No and the Blue WAN port on communication Fritz!Box 4040 or Yellow with modem. LAN 1 port on Fritz!Box 7560. All connec- Maybe a modem LAN / WiFi tions should be issue or a PC issue. -
Page 17: Factory Reset
Factory Reset Where your are experiencing irresolvable problems with the Fritz!Box, please complete the following steps to factory reset your Fritz!Box: • Open your Browser (Internet Explorer, Firefox, Chrome, etc) • Type 192.168.178.1 or fritz.box into the address bar of your selected browser • Enter the Fritz!Box password (see page 11). • Pre Factory Reset Checks: o Save your phonebook if you are using the Fritz!Box phone book option. Refer to user manual for full details on how to complete this. -
Page 19: User Manuals / Parental Controls
Downloads Digiweb Fritz!Box Electric Broadband Quick Start Guide Download PDF at the following URL: www.digiweb.ie/downloads/fritzbox-electric-bb-qsg Parental Controls Digiweb Parental Control Set Up Guide Download PDF at the following URL: www.digiweb.ie/downloads/digiweb_parentalcontrols Thanks again for your custom and we hope you enjoy... -
Page 20: Digiweb Contact Details
Broadband and Telephony Technical Support Telephone: 1918 or 1890 940 400 Email: support@digiweb.ie Customer Care Telephone: 1918 or 1890 940 400 Email: customercare@digiweb.ie Sales Telephone: 1800 28 58 28 Email: sales@digiweb.ie www.digiweb.ie...
