Summary of Contents for CPA Acquamarina

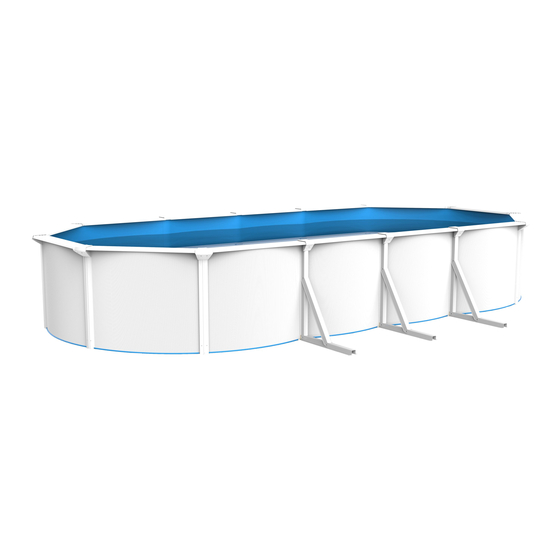

- Page 1 ACQUAMARINA POOL MANUAL pag. 1 / 21 ACQUAMARINA POOL C.P.A. Assembly and maintenance guide READ CAREFULLY THIS MANUAL AND RETAIN FOR LATER REFERENCE www.cpa-piscine.it Rev.00–18/11/20...
-
Page 2: Table Of Contents
ACQUAMARINA POOL MANUAL pag. 2 / 21 Summary IMPORTANT SAFETY INSTRUCTIONS........................3 ..............................5 OMPONENTS PHASE 1 – S ........................7 ELECTING A SUITABLE SITE PHASE 2 – P ............................8 OOL SETUP ..........................8 ROUND PREPARATION ..........................9 EVELLING THE AREA III. -
Page 3: Important Safety Instructions
ACQUAMARINA POOL MANUAL pag. 3 / 21 IMPORTANT SAFETY INSTRUCTIONS The following instructions contain important safety information, we strongly encourage you to read these important safety instructions and abide by them when using this pool. When installing and using this electrical equipment, basic safety precautions should always be followed, this includes the following. - Page 4 ACQUAMARINA POOL MANUAL pag. 4 / 21 Follow these safety rules: Warning - To avoid electrocution, do not permit electric devices i.e. light, telephone, radio, television, hair dryer, etc. within 2,5 m (8 ft) of this pool. Warning - Risk of electric shock. Never operate any electrical appliance when in the pool or when your body is wet.
-
Page 5: Components
ACQUAMARINA POOL MANUAL pag. 5 / 21 Components Top platform Pool liner Ground sheet Side top platform A Side top platform B Top metal piece Upper joint protector Pool wall Bottom joint protector Bottom metal piece Self A horizontal side beam... - Page 6 ACQUAMARINA POOL MANUAL pag. 6 / 21 Acquamarina pool 490 Acquamarina pool 610 Acquamarina pool 730 Description 8011030 - 8011034 8011031 - 8011035 8011032 - 8011036 Pool wall Pool liner Leaf skimmer Ground sheet Pool cover Ladder Horizontal side beam...
-
Page 7: Phase 1 - Selecting A Suitable Site
ACQUAMARINA POOL MANUAL pag. 7 / 21 M4 x 10 - bolt M8 x 20 - bolt M8 - nut ST6.3 x 19 - screw PHASE 1 – Selecting a suitable site Carefully select the site for your new pool. This is the most important decision you will have to make to ensure the safety and success of your pool construction. -
Page 8: Phase 2 - Pool Setup
ACQUAMARINA POOL MANUAL pag. 8 / 21 PHASE 2 – Pool setup Ground preparation The preparation of the ground is the most important step in the installation of the pool. Mark off your pool area by driving stakes. Have a helper hold a tape measure or a string and mark off the pool perimeter using flour or chalk. -
Page 9: Levelling The Area
ACQUAMARINA POOL MANUAL pag. 9 / 21 Levelling the area WARNING Levelling is extremely important: take as much time as possible to work out a site that is completely firm and levelled. Use a carpenter’s level and straight edge to ensure that the site is completely level, flat and firm (see diagram 5). The pool contains a huge amount of water and thousands of kilos of weight. -
Page 10: Pool Frame Assembly
ACQUAMARINA POOL MANUAL pag. 10 / 21 III. Pool frame assembly The pool wall side frame support consists of a left and right frame connected by a stainless steel belt (see diagram 8) . Left frame Side bottom Right frame... -
Page 11: Pool Wall Rail And Rail Connector Setup
ACQUAMARINA POOL MANUAL pag. 11 / 21 Connect the steel belt to either end of the left and right side pool frames (see diagram 13 and 14). Make sure the steel belt is protected by the PVC sleeve which is provided in the package. This will protect the pool liner from damage. - Page 12 ACQUAMARINA POOL MANUAL pag. 12 / 21 Place the bottom metal piece between the joins of the rails with the triangular end pointing out from the pool wall (diagram 19). Diagram 20 Inside of pool Diagram 19 Outside of pool...
- Page 13 ACQUAMARINA POOL MANUAL pag. 13 / 21 On the opposite side of the pool wall, carefully lift and place the steel wall in between the side support frame and the inside bottom protector. Note: There is a section cut out of the pool wall that will allow the wall to slot over the horizontal support beam (see diagram 23).
-
Page 14: Measuring The Pool Wall
ACQUAMARINA POOL MANUAL pag. 14 / 21 Measuring the pool wall WARNING A pool that is not level is very dangerous and may collapse at any time. Diagram 25 Diagram 26 Check the pool wall level by placing a length of timber beam or similar across the diameter of the pool wall and placing the builders level on the top of the timber beam (see diagram 25). -
Page 15: Making A Protective Sand Cushion At The Foot Of The Inner Pool
ACQUAMARINA POOL MANUAL pag. 15 / 21 Making a protective sand cushion at the foot of the inner pool Pool liner Seam is centered in the middle of Sand cove the sand cove Pool wall Base rail Sand cove Diagram 29... - Page 16 ACQUAMARINA POOL MANUAL pag. 16 / 21 Remove the pegs one at time whilst applying the fix rails (see diagram 33). Slide the pipe connectors into one end of the top rail, then connect another top rail, continue around the circumference until all top rails are joined together and firmly pressed into the top of the pool wall.
-
Page 17: Installing The Top And Side Metal Pieces
ACQUAMARINA POOL MANUAL pag. 17 / 21 VIII. Installing the top and side metal pieces Hook the top metal pieces over the top rail between the rail connections and align with the bottom metal pieces (see diagram 34). Place the side metal pieces over the top of the vertical side beams and rails and screw into place (see diagram 35). - Page 18 ACQUAMARINA POOL MANUAL pag. 18 / 21 Place the two side top platforms on top of the rails and align the holes over the side top metal piece. Using four bolts, washers, spring washers, attach the side top platforms to the side top metal piece and only hand tighten. Place a top platform at the end of one of the side top platforms and attach using four bolts, washers, spring washers and nuts.
-
Page 19: Assembly Of The Vertical Supports
ACQUAMARINA POOL MANUAL pag. 19 / 21 Assembly of the vertical supports Attach the bottom joint protector to the vertical support using the screws provided (see diagram 39). Line up all of the screw holes of the vertical supports with the top and bottom metal pieces. -
Page 20: Check All Connections And Joins
ACQUAMARINA POOL MANUAL pag. 20 / 21 Check all connections and joins Once completed, check all connections and tighten loose screws and bolts but do not over tighten. Replace damaged components and repair all tears, rips and holes with repair patch (see diagram 43). -
Page 21: Fixing The Leaf Skimmer
ACQUAMARINA POOL MANUAL pag. 21 / 21 XII. Fixing the leaf skimmer To prevent rust, all edges of cut out have to be covered by vinyl tape or rusting paint. Begin the installation of the through the wall skimmer. Follow separate skimmer installations. - Page 22 SAND FILTER INSTRUCTION MANUAL pag. 1 di 8 SAND FILTER C.P.A. Installation and maintenance manual READ CAREFULLY THIS MANUAL AND RETAIN FOR LATER REFERENCE www.cpa-piscine.it Rev.01–26/04/21...
- Page 23 Check that the installation is in no way closed hermetically, this could damage the monobloc pump due to the formation of water condensation. The size of the pit must be big enough to allow maintenance or repair of the monobloc. www.cpa-piscine.it Rev.01–26/04/21...
- Page 24 The filter/plug is made up of the following parts (drawing 1): a pump a valve a gasket a closing flange a filter tank a tube with a manifold small sand guard filters a drain cock a spigot 10. a supporting base 11. a tube - hosepipe Drawing 1 www.cpa-piscine.it Rev.01–26/04/21...
- Page 25 The collar is secured with a screw and a nut (see drawings 5 and 6). Finally, put the pieces to connect the filter to the valve. Make the joints watertight with PTFE tape. Drawing 2 Drawing 3 Drawing 4 Drawing 5 Drawing 6 www.cpa-piscine.it Rev.01–26/04/21...
- Page 26 (e.g. algae). If not, they would be returned to the filter sand. During this cycle, the water from the bottom of the pool is vacuumed to the exterior. Afterwards, water must be added to restore the water level in the pool. www.cpa-piscine.it Rev.01–26/04/21...
- Page 27 NOTE: before starting the drain, make sure that the valves of the skimmers and the sludge suction vents are closed. Closed. This function stops the flow of water between the sand filter and the pool. www.cpa-piscine.it Rev.01–26/04/21...
- Page 28 Start the pump again slowly (a start-up too quickly will raise the impurities) and brush the pool floor with the floor cleaner brush. For monobloc without pre-filter, it is better to use a skimmer with a basket and gauze. Monobloc’s data Model Monobloc [mm] [CV] Ø 300 Acquamarina pool 490 0,25 Ø 400 Acquamarina pool 610 Ø 400 Acquamarina pool 730 www.cpa-piscine.it...
- Page 29 • Any technical diagrams reproduced in this document have a purely informative value and are not valid for regulatory purposes. www.cpa-piscine.it Rev.01–26/04/21...
- Page 30 LEAF SKIMMER MANUAL pag. 1 di 3 LEAF SKIMMER C.P.A. Instruction manual READ CAREFULLY THIS MANUAL AND RETAIN FOR LATER REFERENCE www.cpa-piscine.it Rev.00–16/10/20...
- Page 31 LEAF SKIMMER MANUAL pag. 2 di 3 Components Description Quantity Hose attachment Cover Basket Skimmer housing Weir Gasket Face plate cover Screw ST5.5x25 Skimmer conncector Inlet connector kit Teflon tape Stop water plug www.cpa-piscine.it Rev.00–16/10/20...
- Page 32 • Any technical diagrams reproduced in this document have a purely informative value and are not valid for regulatory purposes. www.cpa-piscine.it Rev.00–16/10/20...
