WWS250i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WWS250i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wasp Barcode Technologies WWS250i

Summary of Contents for Wasp Barcode Technologies WWS250i

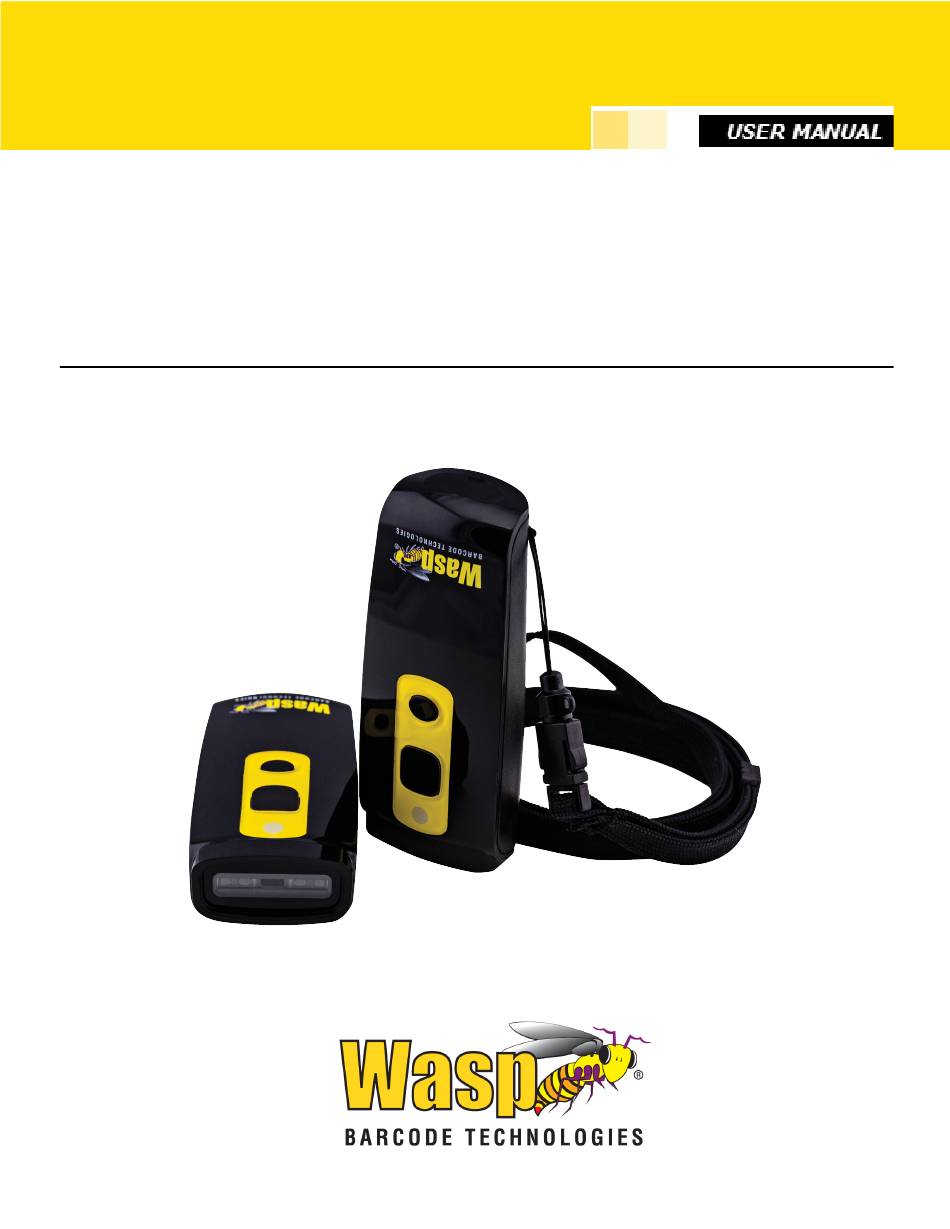

  • Page 1 WWS250i...

  • Page 2: Table Of Contents

    Introduction Chapter 2 Barcode Symbologies Chapter 3 Quick Start Chapter 4 WWS250i Setup & Configuration 1. Setup & Configuration 2. Factory Default and Autosense Stand Mode 3. Connection and Scan Options 4. Start and Stop Pin 5. Interface Settings 6. Memory Mode 11-13 7.
  • Page 3 FCC WARNING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 WARNING AND CAUTION 1. Do not put metals into contact with the terminals in connectors. 2. Do not use scanner near any inflammable gases. If the following conditions occur, immediately power off the host computer, disconnect the interface cable, and contact your nearest dealer. 1.

  • Page 5: Chapter 1 Introduction

    CCD reader is the easiest to use and most cost effective for the typical business user. The Wasp WWS250i Scanner is an extended distance scanner with a depth of reading of up to one foot depending on the mil size of the barcode.

  • Page 6: Barcode Symbologies

    (greater than 0.020 in./0.50 mm). Medium and low densities are the most common since these are the easiest to read (scan) with nearly all scanning devices. The Wasp WWS250i scanner can read barcodes with X-dimensions as low as 5 mils (0.005 in/0.13mm).

  • Page 7: Quick Start

    1. Unpack. Open the box and remove all the pieces from their protective packaging. 2. Charging the WWS250i. You must charge the scanner for 4 hours before first using it. To charge the scanner plug the power supply in to the bottom of the scanner.
  • Page 8 The Complete Wizard screen appears. Just click Finish to complete. Once the wizard is complete the scanner will show up as a Wasp Keyboard. Click OK to close the screen. You are now ready to use the WWS250i. Win7 Instructions On the Add a Device screen, select Wasp Barcode.

  • Page 9: Chapter 4 Wws250I Setup & Configuration

    Setup & Configuration In order to configure the Wasp WWS250i Scanner, you must familiarize yourself with the setup procedures on the following pages. The default settings of the scanners are identified on each page and clearly marked using an asterisk (*). The default settings have been preprogrammed for the most common barcode configurations.

  • Page 10: Connection And Scan Options

    Chapter 4 CONNECTION AND SCAN OPTIONS Check Version Scan the Check Version barcode to verify your current firmware’s version number. Check Version Set Connection Scan this barcode to break your current connection and enable your device to connect to a new Bluetooth host. Set Connection Bluetooth SPP (Bluetooth COM) The Bluetooth SPP (Serial Port Protocol) creates a virtual Bluetooth comport.

  • Page 11: Start And Stop Pin

    Chapter 4 CONNECTION AND SCAN OPTIONS Start and Stop Pin Use the Start and Stop Pin barcodes if you are prompted for a password during Bluetooth pairing. To use this setting: 1. When prompted for a password, scan the Start Pin barcode 2.

  • Page 12: Interface Settings

    GROUP-13 WIRELESS SCANNER SETTINGS Chapter 4 INTERFACE SETTINGS AND MEMORY MODE INTERFACE . E043$ Interface Settings BT HID Scan any one of the barcodes below to reset the scanner back to the desired interface: Emulates a Bluetooth HID keyboard that transmits each barcode data to the host after decode.

  • Page 13: Memory Mode

    Chapter 4 MEMORY MODE MEMORY MODE MEMORY MODE MEMORY MODE MEMORY MODE . R006$ Memory Mode *.R006$* . R006$ SET DATE DATA FORMAT *.R006$* SET DATE DATA FORMAT The default Data Format is <Date Example: To set Date to 2014-08-01 (Year-Month-Day): below are the codes for each item 1.
  • Page 14 Chapter 4 MEMORY MODE MEMORY MODE MEMORY MODE . R008$ *.R008$* DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09). Below is full list of available formats and their setup codes: The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH Code Format is full list of available formats and their setup codes:...

  • Page 15: Beep Settings

    Chapter 4 BEEP SETTINGS The ‘Beep and Delay’ configuration supports the general control options for the Wasp WWS250i Scanner. These options include the volume, intercharacter delay, and interblock delay. Interblock delay (see page 18) is the minimum time interval between two adjacent scans. If the processing speed of your host device is slower than your scanning speed, a longer interblock delay may ensure the data integrity.

  • Page 16: Reading Mode/Vibration Setting

    Chapter 4 READING MODE/VIBRATION SETTING NG MODE NG MODE Reading Mode . F002$ . F002$ RIGGER Trigger* RIGGER . F005$ . F005$ ONTINUOUS ONTINUOUS Continuous . F007$ . F007$ *.F007$* *.F007$* UTO-SENSING UTO-SENSING Auto-Sensing ATOR ATOR Vibration Gives haptic feedback on successful scan (or wake from sleep). .

  • Page 17: Smartphone Connection/Keyboard

    Chapter 4 SMARTPHONE CONNECTION/KEYBOARD SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD Smartphone/Tablet Connection Smartphone/Tablet Touch Keyboard SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD Getting Connected - iOS & Android Getting Connected - iOS &...

  • Page 18: Set Scanner Id

    GROUP-18 GROUP-18 WIRELESS SCANNER SETTINGS WIRELESS SCANNER SETTINGS Chapter 4 SET SCANNER ID SET BLUETOOTH DEVICE ID SET BLUETOOTH DEVICE ID To customize your own Bluetooth device name for the Set Scanner ID To customize your own Bluetooth device name for the wireless scanner, please follow below steps: wireless scanner, please follow below steps: To customize your own Bluetooth device name for the wireless scanner, please follow below steps:...

  • Page 19: Interblock/Intercharacter Delay And Caps Lock

    Chapter 4 INTERBLOCK/INTERCHARACTER DELAY AND CAPS LOCK Interblock Delay 0ms * 10ms 50ms 100ms 200ms 500ms Intercharacter Delay 140us * 500us 16ms • Caps Lock Auto (For PC XT/AT only): In Auto mode, the scanner will keep track of the Caps Lock status automatically. For some PCs, the scanning performance may be compromised because of the auto tracing.

  • Page 20: Keyboard Language

    Chapter 4 KEYBOARD LANGUAGE KEYBOARD LAYOUT The ‘Keyboard Language’ setting controls the key codes for your keyboard’s language. . C010$ . C009$ JAPAN ENGLISH (106 key) (USA) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C012$ . C034$ CANADIAN FRENCH (TRADITIONAL) .

  • Page 21: Preamble/Postamble, Terminator, And Code Id

    Chapter 4 PREAMBLE/POSTAMBLE/ TERMINATOR/CODE ID The ‘Preamble/Postamble’ configuration is used to add a prefix or suffix set of characters to the barcode value. Up to 8 characters may be added for each option separately. Preamble and postamble characters can function concurrently, but need to be configured separately.

  • Page 22: Enable/Disable Barcode Symbologies

    Chapter 4 ENABLE/DISABLE BARCODE SYMBOLOGIES Enable Disable Enable All Disable All MSI Plessey MSI Plessey * Interleaved 2 of 5 * Interleaved 2 of 5 Code 128 * Code 128 Codabar * Codabar Code 39 * Code 39 UPC A * UPC A UPC E UPC E *...

  • Page 23: Code 39 And Interleaved 2 Of 5 Settings

    Chapter 4 CODE 39 AND INTERLEAVED 2 OF 5 SETTINGS Code 39 is variable length and is the most frequently used symbology in industrial barcode systems today. It is extensively used within the Department of Defense (DOD). The principal feature is to encode messages using the full alphanumeric character set. Standard Code 39 contains only 43 characters (0-9, A-Z, $, /, %, +, -, ., SPACE) and can be extended to a 128 character symbology (full ASCII) by combining one of the special characters (S, /, %, +) with a letter (A-Z) to form the characters that are not present in the standard Code 39 symbology.

  • Page 24: Code 93 And Msi Plessey Settings

    Chapter 4 CODE 93 AND MSI PLESSEY SETTINGS Code 93 encodes the full 128 ASCII character set using 9 modules arranged into 3 bars with adjacent spaces. Two of the characters are check characters. Code 93 is similar to Code 39 but encodes more characters per inch. Enable Code 93 Disable Code 93 * Minimum Length (6 *)

  • Page 25: Code 128 Settings

    Chapter 4 CODE 128 SETTINGS Code 128 is the most flexible of all the common linear symbologies. It supports alpha and numeric characters easily, has the highest number of characters per inch, and is variable length. See page 8 for information on setting the minimum and maximum lengths. Enable Code 128 * Minimum Length (5 *) Disable Code 128...

  • Page 26: Codabar And Upc-A Settings

    Chapter 4 CODABAR AND UPC-A SETTINGS Codabar is a variable length symbology capable of encoding six special alphanumeric characters, capital letters A through D, T, N, *, E, and all numeric digits. Codabar is one of the oldest barcode symbologies and is still used in some library applications. It should not be considered for new applications except under unusual circumstances.

  • Page 27: Upc-A Supplement Settings / Upc-A To Ean-13/Upc-E Settings

    Chapter 4 UPC-A SUPPLEMENT SETTINGS / UPC-A TO EAN-13/UPC-E SETTINGS This option enables the two and five digit supplements for the UPC and EAN/JAN barcode symbologies. 5 Digit Supplement 5 Digit Supplement Enable Disable * 2 Digit Supplement 2 Digit Supplement Enable Disable * Transmit if Present*...

  • Page 28: Upc-E Supplement/Ean-8 Settings

    Chapter 4 UPC-E SUPPLEMENT/EAN-8 SETTINGS This option enables the two and five digit supplements for the UPC and EAN/JAN barcode symbologies. 5 Digit Supplement 5 Digit Supplement Enable Disable * 2 Digit Supplement 2 Digit Supplement Enable Disable * Transmit if Present Must Be Present * The EAN/JAN-8 is fixed length and is similar to the UPC-E code, but includes two more digits for the country code.

  • Page 29: Ean-8 Supplemental And Ean-13 Settings

    Chapter 4 EAN-8 SUPPLEMENTAL AND EAN-13 SETTINGS This option enables the two and five digit supplements for the UPC and EAN/JAN barcode symbologies. 5 Digit Supplement 5 Digit Supplement Enable Disable * 2 Digit Supplement 2 Digit Supplement Enable Disable * Transmit if Present Must Be Present * The EAN/JAN-13 (European Article Number/Japanese Article Number) is fixed length and is similar to the UPC-A symbology, but...

  • Page 30: Ean-13 Supplemental Settings

    Chapter 4 EAN-13 SUPPLEMENTAL SETTINGS This option enables the two and five digit supplements for the UPC and EAN/JAN barcode symbologies. 5 Digit Supplement 5 Digit Supplement Enable Disable * 2 Digit Supplement 2 Digit Supplement Enable Disable * Transmit if Present Must Be Present * *Default...

  • Page 31: Chapter 5 Bluetooth Settings

    Connect and Disconnect GROUP-24 Scan the “Set Connection” barcode before pairing the WWS250i Scanner and the internal Bluetooth adaptor. Scanner LED light will turn blue when attempting to connect/reconnect via Bluetooth, LED will then turn green and blink to indicate successful pairing.

  • Page 32: Appendix A Barcode Test Symbols

    Appendix A BARCODE TEST SYMBOLS Note: Make sure that the appropriate barcode symbology is configured properly and enabled before trying to scan. Use the ‘Barcode Symbologies’ configuration beginning on page 22 to enable specific symbologies. QR Code Code 39* UPC-A* UPC-A Code 93 PDF417...
  • Page 33 Appendix A PDF417 BARCODE TEST SYMBOLS DataMatrix QR Code QR CODE Value: ABCDEFG1234567 - 31 - - 32 - DataMatrix EAN/JAN-13* PDF417 DATAMATRIX Value: ABCDEFG1234567 EAN/JAN-13 w/5 digit supplement - 31 - - 32 - DataMatrix EAN/JAN-13 w/2 digit supplement EAN/JAN-8* - 31 - - 32 -...

  • Page 34: Appendix Bascii Table

    Appendix B ASCII TABLE Use this ASCII Table to add preamble and postamble characters to your barcode value. Please refer to the appropriate configuration section for the number of characters that can be configured.
  • Page 35 Appendix B ASCII TABLE “ & < ‘ >...
  • Page 36 Appendix B ASCII TABLE...
  • Page 37 Appendix B ASCII TABLE...

  • Page 38: Appendix C Function Codes For Pc

    Appendix C FUNCTION CODES FOR PC Cursor Right Cursor Up Cursor Left Cursor Down Back Tab Page Up Page Down Home Enter Back Space...

  • Page 39: Appendix D Technical Specifications

    Appendix D TECHNICAL SPECIFICATIONS SPECIFICATIONS Light source: White LED with CCT 5000k Scan Rate: 30 frames/sec Resolution: 5mil/0.127mm (Code39, PCS=90%) OPTIC & Scan Angle: Horizontal: 37.8° Vertical: 28.8° PERFORMANCE Print Contrast: 45% D.O.F. (Environment: 800 lux): 5 Mil Code39: 50 ~ 120mm, 20 Mil Code39: 75 ~ 355mm , 13 Mil UPC-A: 65 ~ 225mm, 6.7 Mil PDF417: 60 ~ 115mm, 10 Mil DataMatrix: 60 ~ 90mm, 20 Mil QR Code: 50 ~ 215mm Dimension: 1.67in W x 4.02 L x 0.85 H (W42.5xL102xH21.5 mm)

  • Page 40: Appendix E Warranty Information And Faq

    If you experience any problems with the Wasp WWS250i Scanner that you are unable to resolve, call for technical assistance at (214) 547-4100 ext 2, Monday through Friday, 8:00 AM - 5:00 PM Central Standard Time.

  • Page 41: Appendix F Barcode Glossary

    Appendix F BARCODE GLOSSARY Setting Code List: General Description Default Check Version Enable All Code Disable All Code Exit Triple Setting Code 39 (Incl. Code 32 - PARAF) Code 39 Enable Default Code 39 Disable Code 39 – Disable CDV Default Code 39 –...
  • Page 42 Appendix F BARCODE GLOSSARY Code 32 Disable Default Set ID - Code 32 (Triple setting, range 0~2 characters) Default: Null Codabar Codabar Enable Default Codabar Disable Codabar – Disable CDV Default Codabar – CDV & Send CD Codabar – CDV & Not Send CD Codaber –...
  • Page 43 Appendix F BARCODE GLOSSARY Interleaved 2 of 5 – CDV & Not Send CD Interleaved 2 of 5 – Min Length (Triple setting, range 02~80) Default: 04 Interleaved 2 of 5 – Max Length (Triple setting, range 02~80) Default: 80 Set ID - Interleaved 2 of 5 (Triple setting, range 0~2 characters) Default: Null NEC 2 of 5...
  • Page 44 Appendix F BARCODE GLOSSARY Matrix 2 of 5 Matrix 2 of 5 Enable Matrix 2 of 5 Disable Default Matrix 2 of 5 – Min Length (Triple setting, range 01~80) Default: 04 Matrix 2 of 5 – Max Length (Triple setting, range 01~80) Default: 80 Set ID - Matrix 2 of 5 (Triple setting, range 0~2 characters) Default: Null...
  • Page 45 Appendix F BARCODE GLOSSARY MSI Code Disable MSI Code– Disable CDV & Not Send CD MSI Code – Single Mod 10 & Not Send CD Default MSI Code – Single Mod 10 & Send CD MSI Code –Double Mod 10 & Not Send CD MSI Code–...
  • Page 46 Appendix F BARCODE GLOSSARY EAN-13 +2 Off Default EAN-13 Add a Space On Default EAN-13 Add a Space Off EAN-13 Addenda required On EAN-13 Addenda required Off Default Set ID - EAN-13 (Triple setting, range 0~2 characters) Default: Null UPC-A UPC-A Enable Default UPC-A Disable...
  • Page 47 Appendix F BARCODE GLOSSARY UPC-A Expand to EAN-13 Enable UPC-A Expand to EAN-13 Disable Default Set ID - UPC-A (Triple setting, range 0~2 characters) Default: Null EAN-8 EAN-8 Enable Default EAN-8 Disable EAN-8 Check digit send Default EAN-8 Check digit not send EAN-8 +5 On EAN-8 +5 Off Default...
  • Page 48 Appendix F BARCODE GLOSSARY UPC-E Check digit not send UPC-E Number System On Default UPC-E Number System Off UPC-E +5 On UPC-E +5 Off Default UPC-E +2 On UPC-E +2 Off Default UPC-E Add a Space On Default UPC-E Add a Space Off UPC-E Addenda required On UPC-E Addenda required Off Default...
  • Page 49 Appendix F BARCODE GLOSSARY Set ID - Code 93 (Triple setting, range 0~2 characters) Default: Null Code 128 Incl. ISBT-128 Code 128 Enable Default Code 128 Disable ISBT Concatenation Enable ISBT Concatenation Disable Default Code 128 – Min Length (Triple setting, range 01~80) Default: 01 Code 128 –...
  • Page 50 Appendix F BARCODE GLOSSARY Set ID - Databar –Limited (Triple setting, range 0~2 characters) Default: Null Databar - Expanded Stacked Enable Default Databar - Expanded Stacked Disable Databar - Expanded– Min Length (Triple setting, range 04~74) Default: 04 Databar - Expanded– Max Length (Triple setting, range 04~74) Default: 74 Set ID - Databar –Expanded (Triple setting, range 0~2 characters) Default: Null...
  • Page 51 Appendix F BARCODE GLOSSARY PDF417 Set Max Length (Triple setting, range 1~2750) Default: 2750。 Set ID – PDF417 (Triple setting, range 0~2 characters) Default: Null Micro-PDF Micro-PDF Enable Micro-PDF Disable Default Micro-PDF Set Min Length (Triple setting, range 1~366) Default: 01 Micro-PDF Set Max Length (Triple setting, range 1~366) Default: 366 Set ID –...
  • Page 52 Appendix F BARCODE GLOSSARY Codablock-F Disable Default Codablock-F Set Min Length (Triple setting, range 1~2048) Default: 01 Codablock-F Set Max Length (Triple setting, range 1~2048) Default: 2048 Set ID –Codablock-F (Triple setting, range 0~2 characters) Default: Null Aztec Aztec Enable Default Aztec Disable Aztec Set Min Length (Triple setting, range 1~3832)
  • Page 53 Appendix F BARCODE GLOSSARY Korea Post Korea Post Enable Korea Post Disable Default Korea Post – CDV & Send CD Korea Post – CDV & Not Send CD Default Korea Post Set Min Length (Triple setting, range 2~80) Default: 04 Korea Post Set Max Length (Triple setting, range 2~80) Default: 48 Set ID –Korea Post (Triple setting, range 0~2 characters)
  • Page 54 Appendix F BARCODE GLOSSARY Set ID –InfoMail Code (Triple setting, range 0~2 characters) Default: Null Set ID –Intelligent Code (Triple setting, range 0~2 characters) Default: Null Set ID –Planet Code (Triple setting, range 0~2 characters) Default: Null Set ID –Postal-4i Code (Triple setting, range 0~2 characters) Default: Null Set ID –Postnet Code (Triple setting, range 0~2 characters) Default: Null...
  • Page 55 Appendix F BARCODE GLOSSARY Bluetooth Bluetooth BCR – Disconnect (Keep pairing record) Bluetooth BCR – Disconnect (Delete pairing record) Bluetooth BCR – Pin code setting Enter (Triple setting) Bluetooth BCR – Pin code setting Exit (Triple setting) Bluetooth BCR - iPhone / iPad KeyPad control Bluetooth BCR –...
  • Page 56 Appendix F BARCODE GLOSSARY Keyboard Layout - Swiss (German , Qwertz) Keyboard Layout - Czech (Qwerty) Keyboard Layout - Hungary (Qwertz) Keyboard Layout – Czech (Qwertz) Keyboard Layout – Swiss (French, Qwertz) Keyboard Layout – Hungarian (Qwerty) Keyboard Layout – Canadian (French, Qwerty) Keyboard Layout –...
  • Page 57 Appendix F BARCODE GLOSSARY Numeric Key Off Default Function Code Enable (for Keyboard & USB-HID) Default Function Code Disable (for Keyboard & USB-HID) Enable HT/CR/ESC Output as TAB/Enter/Escape Disable HT/CR/ESC Output as TAB/Enter/Escape Default Terminator Terminator – None Default Terminator - LF Terminator - CR Terminator - CR+LF Terminator - TAB...
  • Page 58 Appendix F BARCODE GLOSSARY Inter block Delay 500 ms Inter character Delay 140 us Default Inter character Delay 500 us Inter character Delay 1 ms Inter character Delay 4 ms Inter character Delay 16 ms Beep Tone Beep Tone Off (2.7 KHz) Beep Medium Default (2.7 KHz) Beep High...
  • Page 59 The trigger does not function in Continuous Mode. CONTINUOUS MODE Appendix F The LED will light when the trigger is . F002$ BARCODE GLOSSARY pressed. The LED will go off when the trigger is TRIGGER MODE released. Auto Sensing Mode .
