a) When
MICRO (CPU)

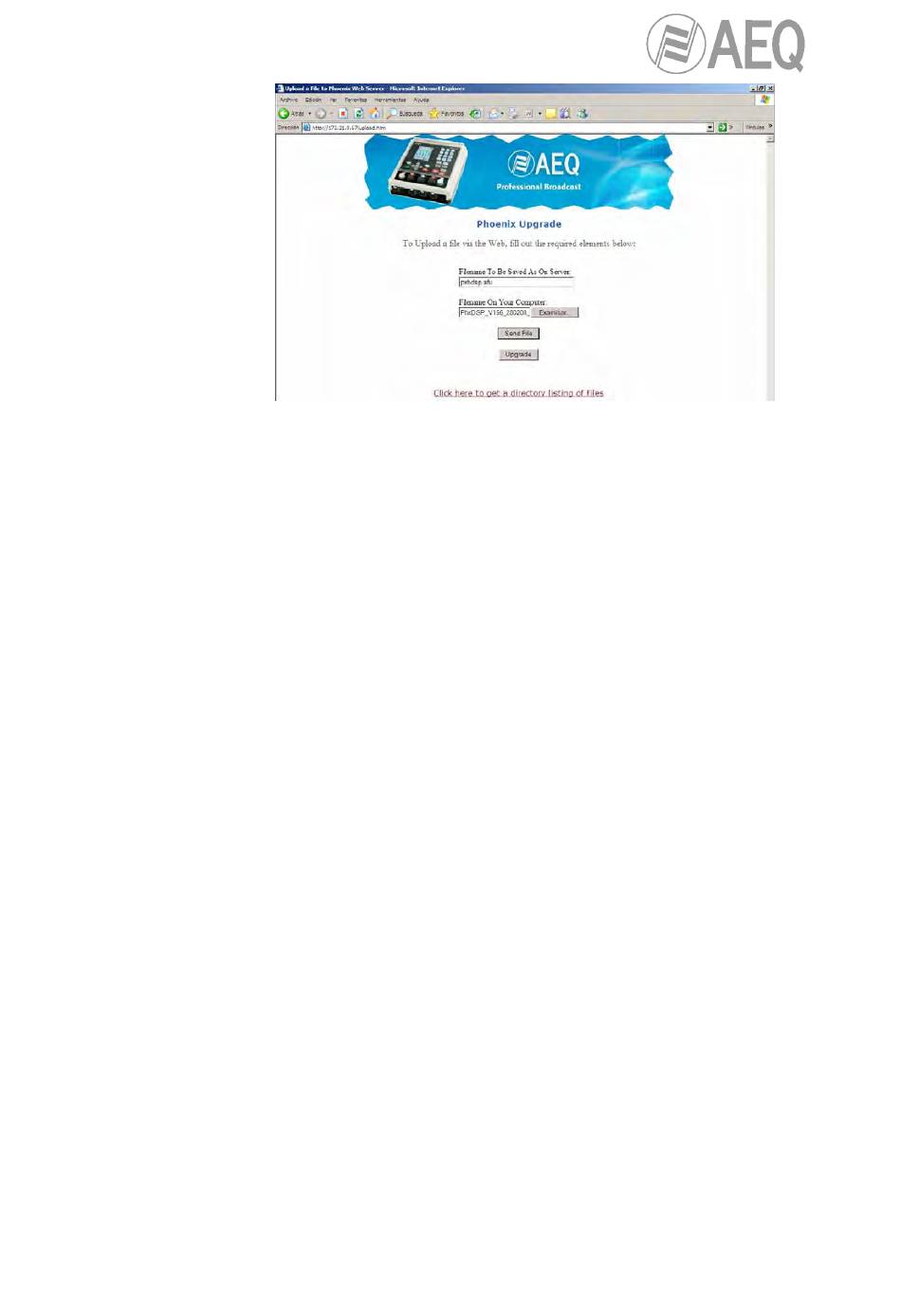

1) In "Filename to be saved..." box write down "phxcpu.afu". In "Filename On
Your Computer" box, press "Examinar" button and load the bin file of the
oficial version (it looks like this: "PhxCPU_Vxxx_xxxxxx_Deb.bin").
2) Press "Send File" and check that the following message appears: "File:
phxcpu.afu saved to memory". Go back to previous menu.
3) Press "Upgrade" and check that PHOENIX MOBILE TFT screen shows the
following message: "Warning. CPU upgrading!!!".
4) Check that "UPGRADE OK" message appears in Internet Explorer and
"Warning. CPU Upgraded" message appears on TFT screen.
5) Turn off and turn on the unit.
6) From the start-up screen (the one with faders displayed) press "Menu" and,
in the screen that appears, select "ADVANCED" and press "Select".
7) In the "Advanced" menu, go to "5 Communications" → "1 Ethernet Config"
and deactivate "DHCP" parameter (OFF): check that "Local IP" shows then
192.168.1.82. Press "Back", go to "3 SIP Config" → "1 Parameters" and
deactivate "STUN Protocol Activate" parameter (OFF).
8) Turn off and turn on the unit.
9) Write down the http://192.168.1.82 IP address in Internet Explorer. Go to
"FIRMWARE" section and check that MICRO has been correctly upgraded.
b) When must be upgraded:
DSP
1) In "Filename to be saved..." box write down "phxdsp.afu". In "Filename On
Your Computer" box, press "Examinar" button and load the bin file of the
oficial version (it looks like this: "PhxDSP_Vxxx_xxxxxx_DAC_B.bin").
2) Press "Send File" and check that the following message appears: "File:
phxdsp.afu saved to memory". Go back to previous menu.
3) Press "Upgrade" and check that PHOENIX MOBILE TFT screen shows the
following message: "Warning. DSP upgrading!!!".
4) Check that "UPGRADE OK" message appears in Internet Explorer and
"Warning. DSP Upgraded" message appears on TFT screen.
5) Turn off and turn on the unit. In Internet explorer go to "FIRMWARE"
section and check that DSP has been correctly upgrade.
c) When must be upgraded:
FPGA
1) In "Filename to be saved..." box write down "phxfpga.afu". In "Filename On
Your Computer" box, press "Examinar" button and load the bin file of the
oficial version (it looks like this: "PhxFPGA_Vxxx_xxxxxx.bin").
2) Press "Send File" and check that the following message appears: "File:
phxdsp.afu saved to memory". Go back to previous menu.
3) Press "Upgrade" and check that PHOENIX MOBILE TFT screen shows the
following message: "Warning. DSP upgrading!!!".
4) Check that "UPGRADE OK" message appears in Internet Explorer and
"Warning. DSP Upgraded" message appears on TFT screen.
must be upgraded:
