Summary of Contents for Optimal SP50

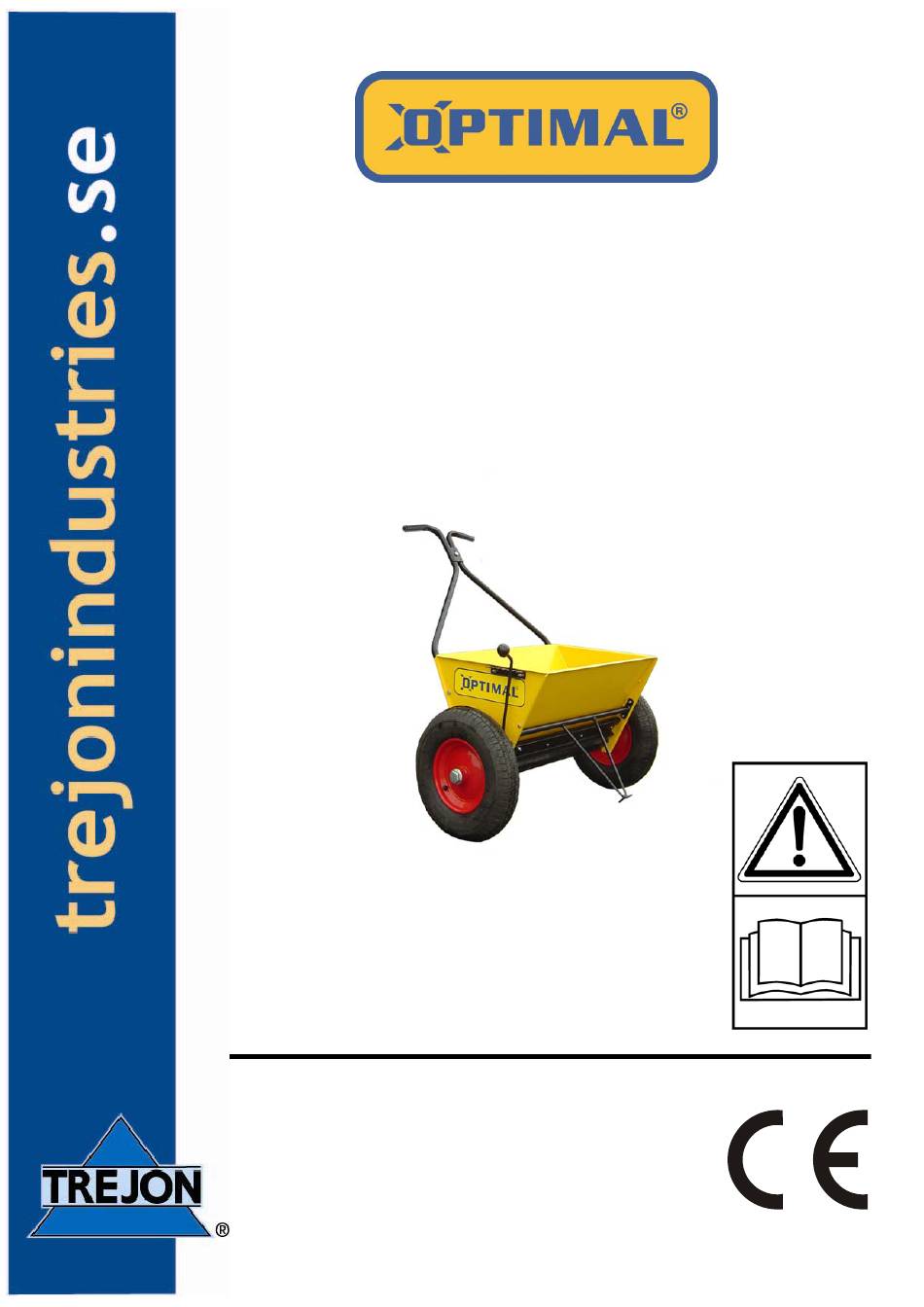

- Page 1 Instructions for use and maintenance Sandspreader SP50 NB! Read the manual carefully before operating the machine! TREJON AB Företagsvägen 9 SE-911 35 VÄNNÄSBY SWEDEN Tel: + 46 (0)935 39 900 Fax: + 46 (0)935 39 919...
- Page 2 Instructions for Use and maintenance OPTIMAL SP50 (0810) SAFETY SYMBOLS Note! This warning symbol is used throughout this instruction manual to call attention to safety precautions that you, your employees or any other people that may come near the implement must read and understand. Failure to follow these instructions may result in serious injury or even death.
- Page 3 Instructions for Use and maintenance OPTIMAL SP50 (0810) Dear Customer, You have made a good choice. We congratulate you to your selection of a TREJON product that offers quality and performance with reliable service. By reading the manual and following it’s recommendations you will ensure the long and effective use of the equipment.
-
Page 4: Table Of Contents
Instructions for Use and maintenance OPTIMAL SP50 (0810) TABLE OF CONTENTS General Information ....................5 Description.......................5 Technical specification..................5 Safety instructions ....................6 Safety directions .....................6 Using the equipment ...................7 Before starting up ....................7 Adjustment of spreading quantity ..............7 Spreading ......................8 Service and maintenance ...................8 Service points ....................8... -
Page 5: General Information
Instructions for Use and maintenance OPTIMAL SP50 (0810) 1 General Information Thank you for choosing our Optimal sand-spreader. We have worked hard to manufacture a strong and reliable sand-spreader that will last for many years. As the machine’s service life does not depend solely on us but also on you we have prepared the guidelines that describe the proper use and maintenance of the machine. -
Page 6: Safety Instructions
Instructions for Use and maintenance OPTIMAL SP50 (0810) 2 Safety instructions Safety directions Read this user manual and the safety directions carefully before using the equipment for the first time. Erroneous or negligent use of this equipment can lead to serious accidents. This equipment is only for outdoor use. -
Page 7: Using The Equipment
Instructions for Use and maintenance OPTIMAL SP50 (0810) Using the equipment 3.1 Before starting up • Mount the handle (pos.2 at spare part list) to the sand-spreader. Fix the handle with screws and nuts. • Lubricate the machine before starting to use it. There are two grease nipples (one on each bearing chamber). -
Page 8: Spreading
Instructions for Use and maintenance OPTIMAL SP50 (0810) Ease the tension of the rubber flap when the machine is not in operation. 3.3 Spreading Fill the sand-spreader with spade or from sack. The material used must not contain stones or frozen pieces. Adjust the machine according to the work to be done. -
Page 9: Spare Parts
Instructions for Use and maintenance OPTIMAL SP50 (0810) 5 Spare parts If you want to order spare parts or need service, please contact the company where you bought the machine. When submitting the order for the spare parts, specify the model, type and serial number from the name plate on the chassis of the machine. - Page 10 Instructions for Use and maintenance OPTIMAL SP50 (0810) - 10 - TREJON AB trejonindustries.se...
- Page 11 Instructions for Use and maintenance OPTIMAL SP50 (0810) Ref Pos Beskrivning Art. Nr. Associerade komponenter Antal Anmärkning 1 Fixing plate 23 627 2 screw M8x40 nylock nut M8 2 Handle 23 811 2 skrew M8x35 nylock nut M8 3 Angle...
- Page 12 Instructions for Use and maintenance OPTIMAL SP50 (0810) - 12 - TREJON AB trejonindustries.se...
-
Page 13: Ec-Certificate Of Conformity
Instructions for Use and maintenance OPTIMAL SP50 (0810) EC-Certificate of Conformity conforming to EEC Directions 98/37/EG TREJON FÖRSÄLJNING AB (name of supplier) …..............................……….. Företagsvägen 9, SE- 911 35 Vännäsby …..............................……….. (full address of company – where this concerns authorized agents within the Common Market, also state the company name... -
Page 14: Warranty- / Assignment Certificate
Instructions for Use and maintenance OPTIMAL SP50 (0810) Warranty- / assignment certificate Warranty terms General about warranty - The TREJON-warranty is limited by the conditions mentioned below and by the specific warranty terms issued by the supplier. These terms are in such cases attached to the operators manual for each machine. - Page 15 Instructions for Use and maintenance OPTIMAL SP50 (0810) TREJON AB reserves the right to change or to improve shown models using technical or commercial reasons, without demands to carry out the same improvements on equipment already delivered. Pictures in the manual do not necessarily show the equipment as delivered.
- Page 16 Instructions for Use and maintenance OPTIMAL SP50 (0810) TREJON AB Företagsvägen 9 SE-911 35 VÄNNÄSBY SWEDEN Tel: + 46 (0)935 39 900 Fax: + 46 (0)935 39 919 - 16 - TREJON AB trejonindustries.se...
