WindGarden
b y
p r e m i e r
d e s i g n s
Plane Fuselage x 1
Wing x 1
Support Pole x 1
Step 1
nsert both Landing Gear Struts through the Landing Gear Holes into the Landing Gear Pockets, located at the front of the plane. These struts should cross
I
each other and form an "X" . Then insert the Landing Gear Wheel Axle into the two black fittings located between the two Landing Gear Pockets. (diagram A)

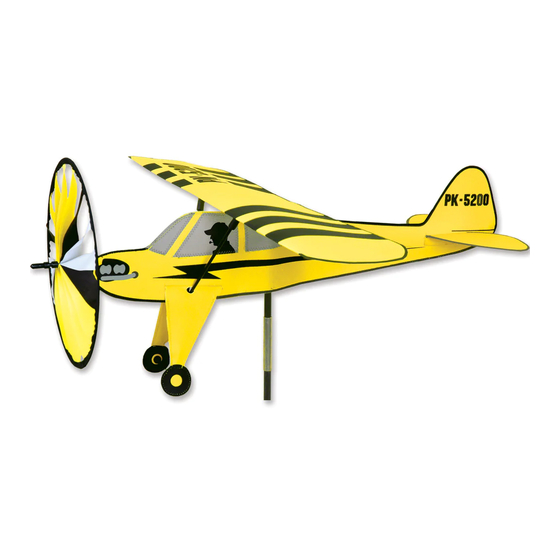

PK-5200 Aircraft Spinner
Main
Fuselage Hub
Landing Gear Holes
Landing Gear Strut
instructions
Spinner Propeller x 1
Landing Gear Struts x 2
Landing Gear Wheel Axle x 1
Stabilizer Cross Strut x 1
Ground Stake x 1
Landing Gear Strut
Landing Gear Pockets
Landing Gear Wheel
Axle
assembly
Advertisement
Table of Contents
Related Manuals for Premier designs Wind Garden Aircraft Spinner PK-5200
Summary of Contents for Premier designs Wind Garden Aircraft Spinner PK-5200
- Page 1 WindGarden p r e m i e r d e s i g n s PK-5200 Aircraft Spinner assembly instructions Spinner Propeller x 1 Plane Fuselage x 1 Landing Gear Struts x 2 Wing x 1 Landing Gear Wheel Axle x 1 Stabilizer Cross Strut x 1 Ground Stake x 1 Support Pole x 1...
- Page 2 “T” Fitting Thumb Screw Diagonal Plastic Fittings Vertical Support Rod Step 2 Slide the wing “T” Fitting Thumb Screw onto the Internal Vertical Support Rod. Then insert the Landing Gear Struts into the two black Diagonal Plastic Fittings on either side of the wing. Be sure to tighten the Wing “T” Fitting Thumb Screw to secure the wing to the fuselage. Make sure the wing is fully seated on the Vertical Support Rod.
