Rejuvenation C0933 Installation Procedure

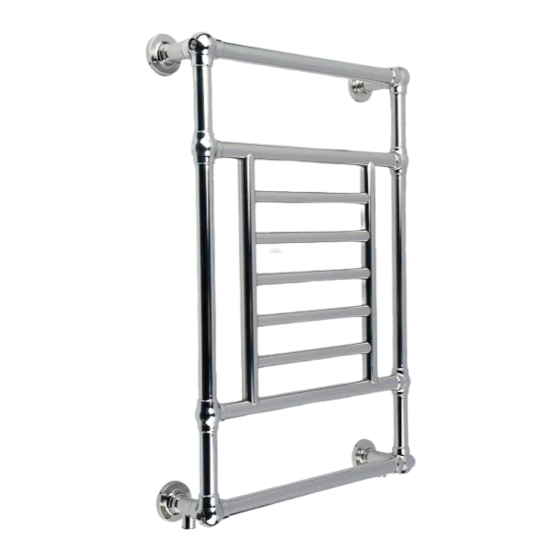

Towel Warmer Installation Procedure
1

Rough-in Requirements

1. The incoming power feed goes to a deep single gang electrical box (for timer). This electrical box can be located
anywhere in the room, although we recommend it be alongside your light switches.
2. A power feed then goes from the timer electrical box to a single gang electrical box (for Towel Warmer). The location
of this electrical box governs the location of your Towel Warmer (see g. 2).
3. Wall studs or plywood backing is required at all bracket locations. See gure 2 for bracket locations.
2 Installation Instructions
1. Check all items have been received. You should have Towel Warmer, hardwire kit, programmable timer and mounting
discs including xings. Read all instructions before continuing.
2. Fix mounting discs "A" using the screws provided and in locations as shown on gure 2.
3. Mount towel warmer and slide brackets "B" over mounting discs "A".
4. Fasten Towel Warmer using set screws "C" to lock mounting discs "A" into brackets "B". Ensure the Towel Warmer is
rmly and safely xed.
3

Hardwire

Do not connect the Towel Warmer to the power supply until all instructions have been read and installation carried out in
accord with them. The heating element is 150W 110V. The element conforms to UL standards and the unit to CSA
standards (File ref: 229718). Ensure the CSA label is visible. TURN OFF POWER SUPPLY BEFORE PROCEEDING.
1. Feed the electrical cord located at the side of the Towel Warmer rst through the round tube and then through the
cover plate.
2. Complete all electrical connections as shown in gure 3.
3. Fit tube over Towel Warmer element sleeve until it meets the hexagonal chrome collar.
4. Push cover plate onto tube.
5. Screw cover plate to electric box with the enclosed screws. Adjust where necessary.
Warning: In case of damage or failure of the Towel Warmer the unit should be returned to the manufacturer or their distributor. The warranty
is NOT VALID in case of improper use or installation. Product is designed for use within Canada and the United States only.
2550 NW Nicolai Street Portland Oregon 97210
(see gure 3)
(see gure 1)
g. 1
A
Customer Service: 888 401-1900
C
B
C
rejuvenation.com
