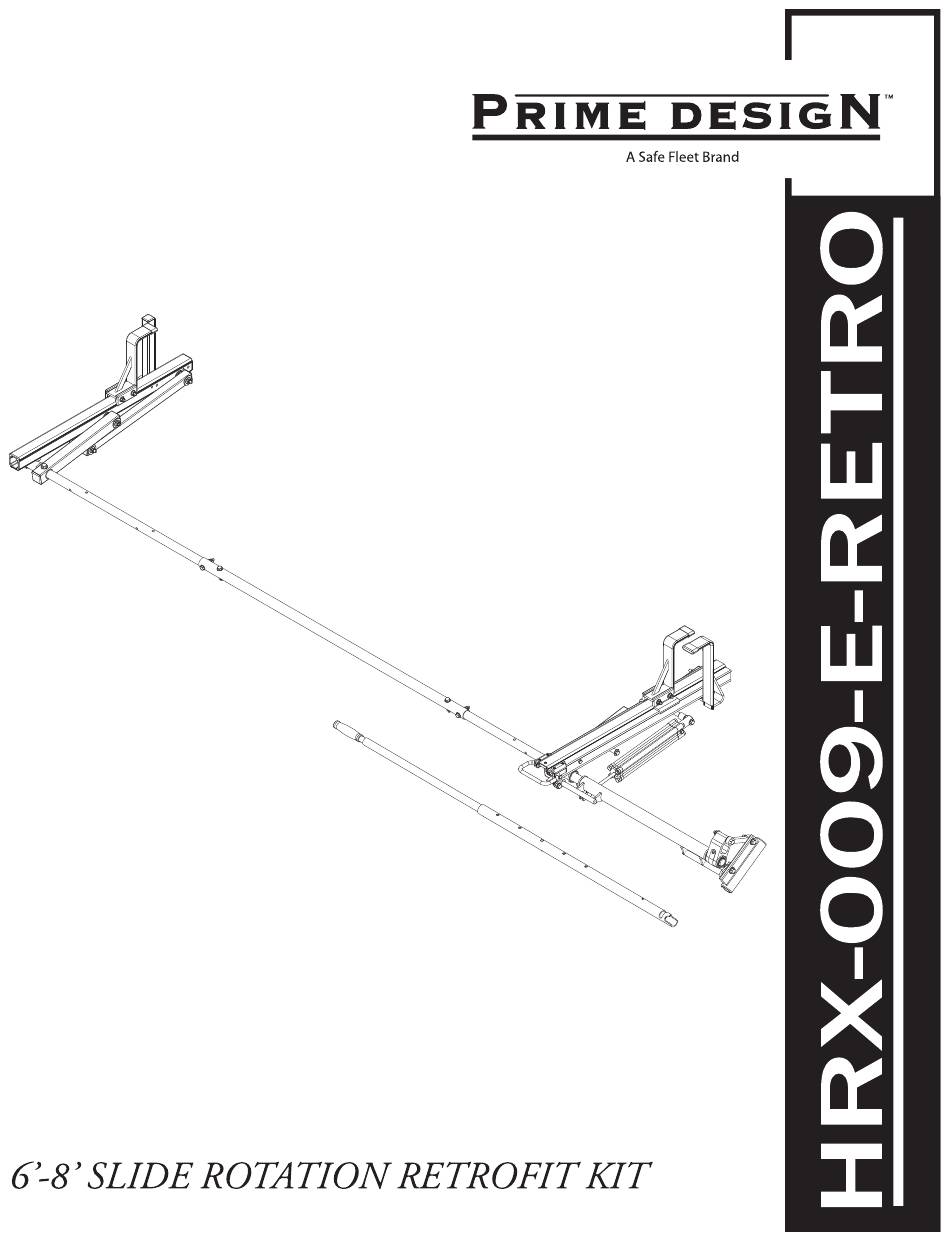

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
- Page 2 CONTENTS OVERVIEW 1—Rear Crossbar Assembly ........(Qty 1) 2—Front Crossbar Assembly ......... (Qty 1) 3—Rear Drive Shaft ..........(Qty 1) Left Hand, A Version, 50.00” 4—HHR Handle Assembly ........(Qty 1) 35.00” 5—Connecting Bar ..........(Qty 1) 4.00’ 6—Front Drive Shaft ..........(Qty 1) B Version, 35.75”...
- Page 3 7—Hydraulic Cylinder ..........(Qty 1) 8—BLT-6811-M8 ............ (Qty 1) Cylinder Hex Head Assembly, M8 x 110MM 9—Z Post ............... (Qty 1) Adjustment, 7.25” 10—L Post ..............(Qty 1) G1, Square Cap, 9.25” w/Hardware M8 x 65MM (1X) M8 Lock Nut (1X) "...
- Page 4 LEFT SIDE ASSEMBLY SEQUENCE 2/5/12 NOTE: Ladder Rack is shown for illustrative purposes only, and is not included with this Slide Rotation Retrofit Kit. This Slide Rotation Retrofit Kit contains only the parts needed to repair, replace, or retrofit one Slide Rotation. REAR CROSSBAR ROTATION Bushing, 1.75”L...
- Page 5 CYLINDER HARDWARE NOTE: Ensure Cylinder Bushing is fully seated against Crossbar NOTE: Flow Control Screw faces toward vehicle rear Torque to 18 in-lbs FRONT CROSSBAR ROTATION Press the small .75” (A) round Caps into the Crossbar holes as shown. Torque to 55 in-lbs Prime Design Limited Warranty.
- Page 6 REAR DRIVE SHAFT Torque to 90 in-lbs CYLINDER HARDWARE CONNECTING BAR Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 7 CONNECTING BAR FASTENERS FRONT DRIVE SHAFT Torque to 90 in-lbs Z POST L POST SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 90 in-lbs Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 8 CYLINDER ADJUSTMENT DRIVE SHAFT SEALING 11.2 Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds 11.1 time for the ladder to glide down when operating the Apply Silicone Sealant loaded Ladder Rack. to Connecting Bar ends USAM-HRX009ERETRO-US01 Rev-B 0218 Prime Design Limited Warranty.
