Product information presented
here reflects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
All electrical and safety codes must be followed including the National Electrical Code and all applicable local codes.

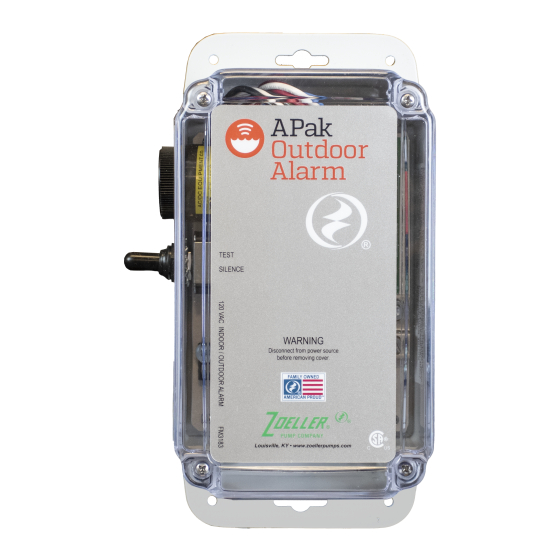

This alarm unit monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, and other non-potable water applications (See Figure
A). APak
Outdoor High Water Alarm features a green Power On LED, red alarm LEDs, an audible buzzer, one set of normally closed and normally open
™
Auxiliary contacts, and a Silence/Reset/Test toggle switch. The APak
source. This product is rated as NEMA 4X. To maintain rating, use only equivalent rated conduits and install in accordance with applicable standards.
Tighten enclosure screws once a year, (recommended torque of 0.45 Nm or 4 in-lbs.) and perform any required maintenance to ensure protection. 15A
household circuit breaker required.
1)
Drill openings on the bottom of the enclosure sufficient to accommodate the appropriate conduit adapter. Follow guidelines to ensure a water
tight fit where applicable.
2)
Install unit in desired location using mounting flanges on enclosure.
3)
Remove the 4 cover screws to access the terminal contacts and the auxiliary contacts.
4)
Wire line and neutral to terminal contacts 1 & 2 and connect earth ground to the ground lug located on metal backplate (See Figure B).
5)
Wire mechanical float switch to terminal contacts 3 & 4 (See Figure B).
6)
Terminal contacts 5, 6, 7 are provided as an optional wiring junction point for the pump. 115/230V, 20A max.
7)
Auxiliary contacts may be used to control other alarm circuits and are rated for 115V, 60Hz, 5A resistive load.

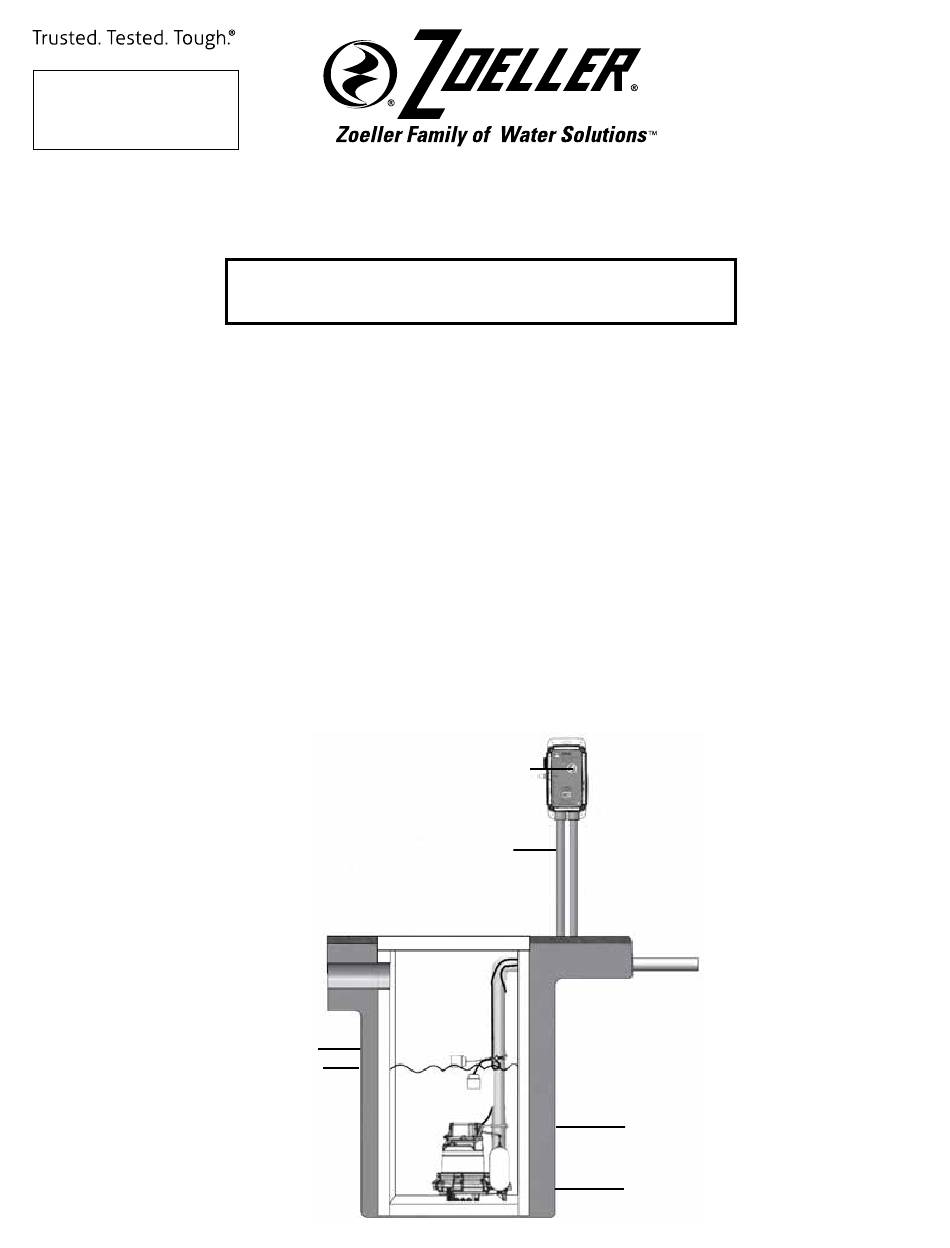

Figure A
ALARM "ON" LEVEL
ALARM "OFF" LEVEL
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
TEL: (502) 778-2731 • 1 (800) 928-PUMP • FAX: (502) 774-3624
APak
Outdoor High Water Alarm
™
ELECTRICAL SHOCK HAZARD.
DISCONNECT POWER BEFORE SERVICING
SPECIFICATIONS
ALARM UNIT INSTALLATION / WIRING
ALARM UNIT
CONDUIT
© Copyright 2020 Zoeller Company All rights reserved.
Outdoor High Water Alarm can be wired to a 120 V, 60 Hz, electrical power
™
PUMP "OFF" LEVEL
Visit our web site:
zoeller.com
PUMP "ON" LEVEL
FM3287
1220
Supersedes
New
Advertisement
Table of Contents
Related Manuals for Zoeller APak
Summary of Contents for Zoeller APak
- Page 1 Outdoor High Water Alarm features a green Power On LED, red alarm LEDs, an audible buzzer, one set of normally closed and normally open ™ Auxiliary contacts, and a Silence/Reset/Test toggle switch. The APak Outdoor High Water Alarm can be wired to a 120 V, 60 Hz, electrical power ™...
- Page 2 Once the high-water condition is remedied, the alarm should be reset by holding the Silence toggle switch for 2 seconds. Hold the Silence toggle switch up to Test once per week to verify proper operation. © Copyright 2020 Zoeller Company All rights reserved.
- Page 3 91104-0001 Item Description Part # Clamp, #36 worm-SS 001766 Switch, mechanical float 011833 Zoeller Company cannot be responsible for damages caused by faulty or negligent installation of this device. We respectfully suggest you engage the services of a qualified, licensed electrician or service person. © Copyright 2020 Zoeller Company All rights reserved.
- Page 4 MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347 SHIP TO: 3649 Cane Run Road • Louisville, KY 40211- Visit our web site: 1961 zoeller.com (502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624 © Copyright 2020 Zoeller Company All rights reserved.
