Summary of Contents for Agrimate AM-HPW-5star

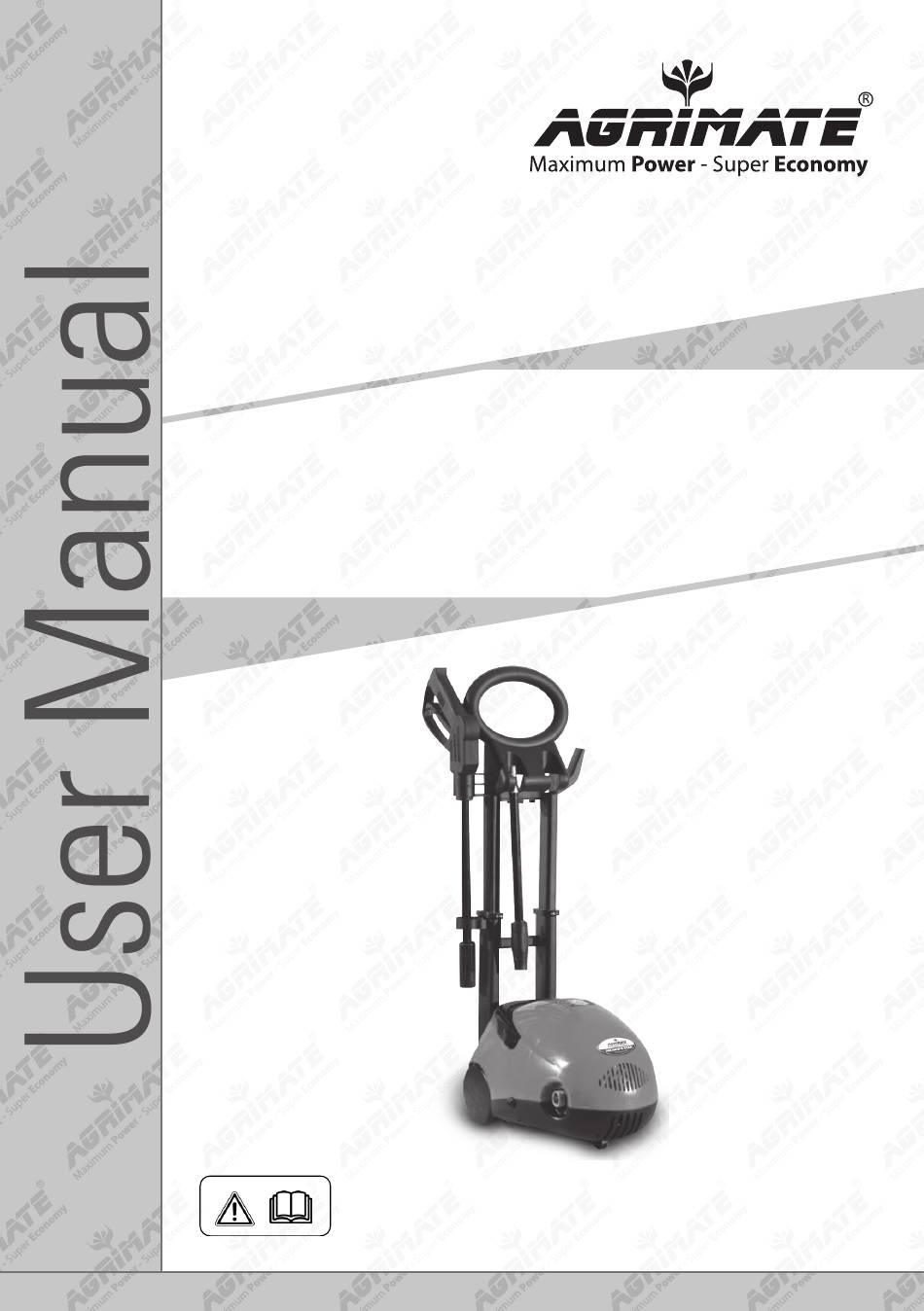

- Page 1 AM - HPW - 5 Star Pressure Washer BEFORE OPERATING THIS APPLIANCE PLEASE READ THESE INSTRUCTIONS CAREFULLY...
- Page 2 MULTI-PURPOSE,MULTI-APPLICATION PRESSURE WASHER Handle and wheels Cleans those difficult for easy mobility jobs with ease 10 meter electrical cable, 5 Ideal for use meter washing hose, around the home gun, lance, soap bottle or work place...
-
Page 3: Safety Regulations
APPLICATION Agrimate 5Star PRESSURE WASHING MACHINE is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc. NAMES OF EXTERIOR PARTS... - Page 4 WARNING • The appliance is intend to be used at a temperature above 0 degree. • Read all the instructions before using the product. • To reduce the risk of injury, close supervision is necessary when a product is used near children. Pressure cleaner shall not be used by children or untrained person.
- Page 5 connections dry and off the ground. Do not touch plug with wet hands. It is strictly prohibited to let water leak into the machine. • When the machine is turned on, the interior pumps start and continue to run even if the pressure wand trigger has not been depressed.
- Page 6 OPERATING INSTRUCTIONS ! This unit is to be connected to a cold water source ONLY ! The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed. • Connect the outlet hose to the washer and connect the spray gun to the outlet hose. •...
-
Page 7: Adjustable Spray Nozzle
(fig 3). LONG TERM STORAGE The AM-HPW-5Star should be stored in a frost-free environment. After long-term storage without operation, it is possible to form scales inside the machine making it hard to start again. In such conditions it is recommended to turn off and disconnect the power supply and rotate the motor by hand several times so as to avoid excessive current draw on the motor and the power supply (fig 4). -
Page 8: Cleaning Pin Instruction
ATTACHING SOAP DISPENSER BOTTLE Insert metal end of the spray lance into the opening of spray gun (making sure to match the locking tabs on either side of the spray lance to the notches of the spray gun), Push in and twist in a clockwise motion to lock spray lance and spray gun together (make sure there is a tight and secure fitting between both). -
Page 9: Troubleshooting
TROUBLE SHOOTING FAULT PROBABLE CAUSE REPAIR Plug is not well connected Check plug, socket and fuses. or electric socket is faulty The main voltage is Check that the main voltage insufficient, lower than is adequate. minimum requirement When switched on the machine Refer to after storage The pump is stuck. - Page 10 INSTALLATION, ELECTRICAL AND WATER CONNECTIONS 1. PRESSURE GUN 2. WATER INLET 3. PRESSURE WATER OUTLET 4. PRESSURE TUBE / HOSE Note: The company reserves the right to modify its product specifications without given any notice; for up to date information please visit our website.
- Page 11 AGRIMATE 5 STAR PRESSURE WASHER DIAGRAM SPARE PARTS AGRIMATE 5 STAR PRESSURE WASHER SPARE PARTS LIST Part No Part Name AM-HPW-5Star-01 Kit Water Outlet Joint AM-HPW-5Star-02 O-Ring AM-HPW-5Star-03 Pump Head Al Alloy AM-HPW-5Star-04 O-Ring AM-HPW-5Star-05 Screw Internal Hexagonal AM-HPW-5Star-06 Joint Water Inlet...
- Page 12 Part No Part Name AM-HPW-5Star-07 O-Ring AM-HPW-5Star-08 Filter MM AM-HPW-5Star-09 Valve Release Load Base AM-HPW-5Star-10 Core Load Release Valve AM-HPW-5Star-11 Spring Load Release Valve AM-HPW-5Star-12 O-Ring AM-HPW-5Star-13 Cap Load Release Valve AM-HPW-5Star-14 Screw Internal Hexagonal AM-HPW-5Star-15 Pump Body Al Alloy...
- Page 13 Part No Part Name AM-HPW-5Star-30 Spring Plunger AM-HPW-5Star-31 Plunger AM-HPW-5Star-32 Plunger Circlip AM-HPW-5Star-33 Connection Box AM-HPW-5Star-34 Capacitor AM-HPW-5Star-35 Ring Rubber Cover AM-HPW-5Star-36 Connection Box AM-HPW-5Star-37 Switch AM-HPW-5Star-38 Top Cover AM-HPW-5Star-39 Base AM-HPW-5Star-40 Wheel AM-HPW-5Star-41 Handle AM-HPW-5Star-42 Fan Cover AM-HPW-5Star-43 Base Wheel...
-
Page 14: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure a three-month clean the machine. Before working, make sure inspect the filter and the nozzle, make sure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine need to be repaired in the guarantee period, please return the machine to the shop. - Page 15 Warranty Card CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AM - HPW - 5star Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 16 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 17 1st Free Service Coupon ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AM - HPW - 5star PDI Date Purchase bill no. Date Service No. Operations: • Check and Test the Fuel Mixture. •...
- Page 18 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 19 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 20 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Customer Care: 1800-425-3036 Email: marketing@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
