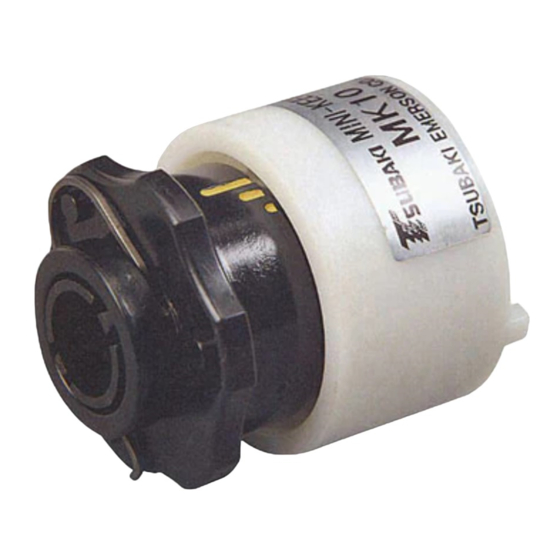

- Page 1 INSTALLATION MANUAL MINI KEEPER MK08 MK10 MK12 Ⅰ．STRUCTURE Ⅱ．INSTALLLATION Ⅲ．TORQUE SETTING...
- Page 2 Ⅰ.STRUCTURE Ⅱ.INSTALLATION Before installation The structure of MINI KEEPER cannot be disassembled. If you disassemble by force, parts will be damaged or MK will not achieve a function. (1) Install to a shaft ①All bores of MK are finished. Recommended tolerance of shaft is h7 or h8. ②Connection on a shaft use the pin pocket on the end.
- Page 3 Cut slots to the end face of driven member and insert a jaw. At this time, be sure to make clearance so that thrust and radial load do not act to the end face of flange with jaws. Give a clearance of about 0.5mm. When there is no clearance, a load will be applied to a friction face, and it will result in unusual wear and torque.
- Page 4 Graph 1 (Torque curve) ③Prevent rotation of an adjustment nut, after torque setting. Prevent rotation by setting attached clip between an adjustment nut and a stop collar, as following figure. Be sure to check that the projection of a clip is contained in the slot (both sides) on the Hub. It becomes a prevention of rotation because a clip hits the stop button (convex part) of an adjustment nut.
- Page 5 WARNING USE CARE TO PREVENT INJURY． COMPLY WITH THE FOLLOWING TO AVOID SERIOUS PERSONAL INJURY． [WHOLE］ Do not use in atmosphere of oil and inflammable gas due to fear of ignition and explosion. High temperature is possible, as it is a friction type Clutch & Brake. Be sure to install a safe cover in order that the Clutch &...
- Page 6 However, any such inaccuracies or errors reported will be gladly examined and amended as necessary. 1-1, Kohtari-Kuresumi, Nagaokakyo TSUBAKIMOTO CHAIN CO. Kyoto 617- 0833, Japan Website: http://tsubakimoto.com/ Global Associated Partners: U.S. Tsubaki Power Transmission, LLC Tsubakimoto Singapore Pte. Ltd. Tsubakimoto Europe B.V. http://www.ustsubaki.com/ http://tsubaki.sg/ http://tsubaki.eu/ Tsubaki of Canada Limited Taiwan Tsubakimoto Co.
