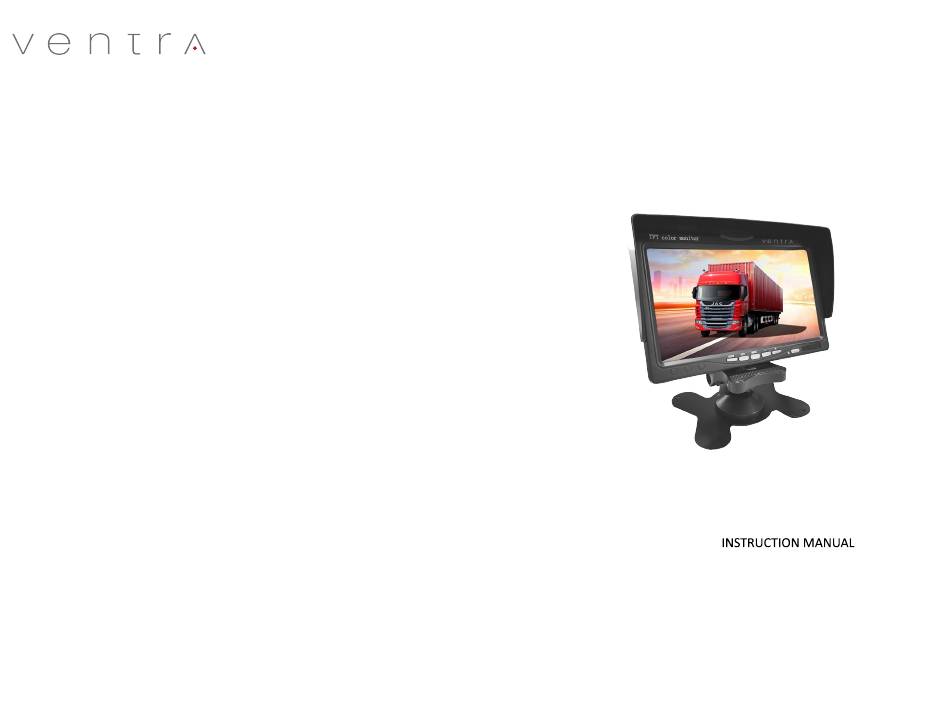

VENTRA VLCD-7 Instruction Manual

Warning: Install product only when vehicle is safely parked and Power is
OFF. View and access the monitor only when safe to do so. Do not operate
monitor while driving

Installation Guide

1. Determine the location of the mounting position, clean with damp towel
2. Securely affix mounting bracket to vehicle
3. Affix monitor to the mounting bracket, determine angle and tighten with
angle screw
4. Connect Power cable to the monitor, use electrical tape if necessary
5. Connect RCA video cable to source, use electrical tape if necessary. If
connecting to 2 video input, an additional RCA cable is required
6. If connecting VLCD-7 trigger wire (Green wire) to reverse signal, connect
camera 2 to CH 2 video input. Ensure the green wire is connected to the
reverse or turn signal of vehicle

VLCD-7 Operation

1. Press Menu key to Enter or Exit Menu
2. Press ( + ) or ( - ) to navigate menu. Press ( + ) or ( - ) to change setting

Operation Guide:

1. VLCD-7 monitor supports dual video input. If only 1 camera is connected,
that camera will be primary, regardless of which input it is connected to
2. If connecting 2 cameras,
Input 1 = Primary Camera
Input 2 = Secondary Camera
3. To switch camera view, Press V1 / V2 to switch to second camera, Or if
the secondary camera was powered on / triggered by a switch (i.e. turn
signal). Monitor will auto revert back to the primary camera after a few
seconds.
Ventra Technology Inc. Covina, CA. USA www.ventrainc.com
VLCD-7 (V2) 7" TFT LCD Monitor
Thank you for purchasing Ventra product. Before operating or
installation, please read and follow the manual.
info@ventrainc.com Tel: 888 418 3833 Version 03 2020
