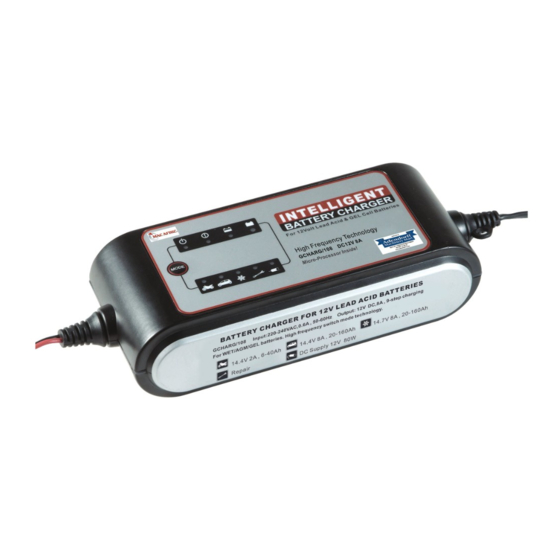

DIGITAL BATTERY CHARGER 12V 8A
GCHARG/108
Rated Voltage: AC 220-240V
Output: DC 12V 2Amp / 8Amp
IMPORTANT SAFETY INSTRUCTIONS
1. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Working in vicinity of a lead-acid battery is dangerous. batteries generate explosive gases
during normal battery operation. For this reason, it is of utmost important that each time
before using your charger, you read this manual and follow the instruction exactly.
3. To reduce risk of battery explosion , follow these instructions and those published
by the battery manufacturer and manufacturer of any equipment you intend to use
in vicinity of battery. Review cautionary markings on these products and on
engine
4. Use the charger in door only , do not expose it to rain.
Rated Current: 0.60 Amp
Advertisement
Related Manuals for ADENDORFF Mac Afric GCHARG/108
Summary of Contents for ADENDORFF Mac Afric GCHARG/108
- Page 1 DIGITAL BATTERY CHARGER 12V 8A GCHARG/108 Rated Voltage: AC 220-240V Rated Current: 0.60 Amp Output: DC 12V 2Amp / 8Amp IMPORTANT SAFETY INSTRUCTIONS 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 2: General Safety
GENERAL SAFETY 1. Use charger for charging LEAD-ACID absolutely necessary. Use of an improper battery only. extension cord could result in fire or Do not use battery charger for other electric shock. If an extension cord must types of batteries, these may burst and be used, make sure that: •... - Page 3 4.Avoid touching your eyes while working with a battery. Acid particles (corrosion) may get into your eyes! If acid enters your eye, immediately flood eye with running 7.Always operate battery charger in an open cold water for at least 10 minutes. Get well ventilated area.
-
Page 4: Preparing To Charge
To select charging mode or re-set during charging. Fault light on in case of short circuit , reverse polarity , bad battery Battery is during charging Battery is full Mode :14.4V/2.0A This mode is normally used for all types of batteries <40Ah Mode :14.4V/8.0A This mode is normally used for all types of batteries <160Ah Mode :desulfation... - Page 5 carefully follow manufacturers recharging instructions. 5.Study all battery manufacturers specific precautions such as removing or not removing cell caps while charging and recommended rates of charge. 6.Be sure area around battery is well ventilated while battery is being charged. Gas can be force fully blown away by using a piece of cardboard or other nonmetallic material such as a fan.
- Page 6 • The battery has a high self-discharge rate and may need to be replaced. WARNING: DO NOT attempt to charge a frozen battery. DO NOT leave the charger to battery without main power connected. OPERATING INSTRUCTIONS: CHARGING BATTERY IN VEHICLE 1.
- Page 7 the negative post. 2.Connect POSITIVE (RED) charger clip to POSITIVE (POS,P, +) post battery. Connect NEGTIVE (BLACK) charger clip to NEGTIVE (BLACK,N, - ) post battery. Rock clip back and forth to make good connection. WARNING: Do not face battery when making final connection. 5.
-
Page 8: Care And Maintenance
4. Cigarette socket: Make sure continuous power consumption of 12V appliance is less than 72W. CARE AND MAINTENANCE With only minimal maintenance, this Battery Charger will deliver years of dependable service. Follow these simple steps to maintain the charger in optimum condition: After each use, clean the battery charger clamps - be sure to remove any battery fluid that will cause corrosion of the copper clamps.
