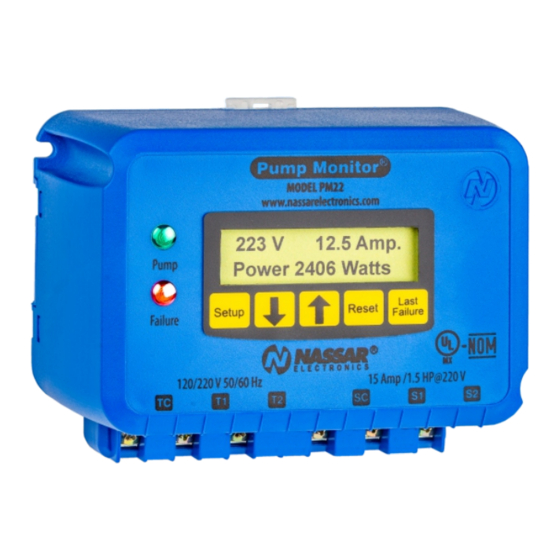

- Page 1 SINCE 1973 User Manual PUMP MONITOR MODEL PM-22 The best solutions for automation and protection www.nassarelectronics.com PM-22 PUMP MONITOR MANUAL ENGLISH 2018 viernes, 4 de octubre de 2019 10:45:06 a. m.
- Page 2 When a fault is detected the PM-22 after the trip delay— will turn off the pump . The user can select Auto calibration. Ÿ...
- Page 3 Press the up or down arrow buttons to adjust the Before the PM-22 unit is ready to be used it MUST BE desired reset delay from 1 to 120 minutes.
- Page 4 The Pump LED is ON when the pump start, and the MANUAL RESET: Failure LED is OFF, the display shows the voltage, If the PM-22 is set to manual reset it will not restart the current and power consumption. motor until the RESET button is pressed and the fault condition is no longer present.
- Page 5 5 s trip delay. The over voltage protection is user- detected. When this happens, the motor uses less adjustable. power and the PM-22 shuts down the motor after a 5 s trip delay. To reset from this fault, the voltage has to decrease 2% above the over voltage value.
- Page 6 Mounting on a panel door allows to visualize the LED indicators , it also makes setup adjustments easier. If this unit is panel mounted, the panel needs to be installed indoors. www.nassarelectronics.com PM-22 PUMP MONITOR MANUAL ENGLISH 2018 viernes, 4 de octubre de 2019 10:45:10 a. m.
- Page 7 These products are warranted to be free from defects in workmanship or material under normal service and use for a period of three (3) years from date of manufacture. Nassar Electronics shall, at its option, repair or replace F.O.B. point of manufacture the portion of the product found by Nassar Electronics to be defective.
