Summary of Contents for Marlon 200

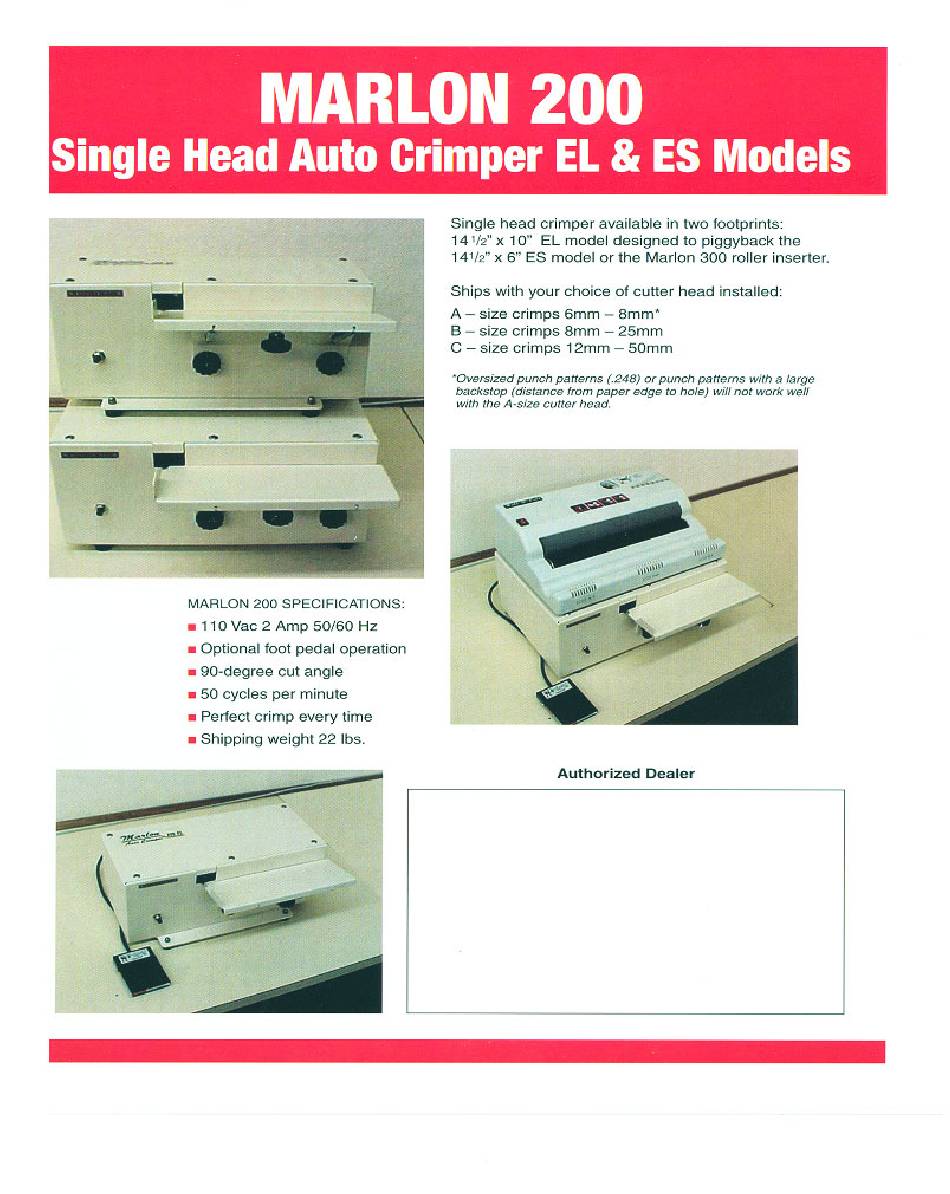

- Page 2 MARLON 200 AUTO CRIMPER EL & ES MODELS SERVICE MANUAL...
- Page 3 We are confident that your new Marlon 200 Auto Crimper will be a valuable asset to your plastic coil binding operation. The following pages of this service manual will cover machine setup, operating procedures, maintenance and trouble shooting your Marlon 200 Auto Crimper.
- Page 4 Plunger Switch: Only models produced for sale in the USA will come with plunger switch. An optional foot pedal can be purchased. All models produced for sale outside the USA come standard with a foot pedal. No plunger switch included.
-
Page 5: Cutter Head
C – size cutter head crimps 12mm – 50mm diameter coils If more than one cutter head is required to accommodate your binding needs the Marlon 200 ES was designed to set on top of the Marlon 200 EL eliminating the need for extra counter space. - Page 6 MARLON 200 CONNECTIONS Foot Pedal AC power cord ½ Amp fuse power switch...
- Page 7 TABLE ADJUSTMENTS The worktable is fastened to the crimper using the ¼” stud knobs and two ¼” flat washers included with your machine. The holes in the table are slotted allowing side to side adjustments to be made. Mount the table in the top holes for small and medium diameter coil and the bottom holes for medium and large diameter coil.
-
Page 8: Machine Setup
MACHINE SETUP Place the bound document on the worktable with the left edge of the document snug against the book guide. Make a rough height adjustment by turning the table height adjustment knob in or out until the center of the coil is close to the height of the crimper blades. A finer adjustment is sometimes required after step three to achieve the optimum crimp. - Page 9 Machine Maintenance Warning: Only trained service personnel should perform machine service. Unplug unit before servicing. Service personnel shall wear no jewelry or metal objects while working inside machine. Use only a damp cloth to clean exterior of machine. Periodically remove paper dust and plastic clippings from machine using a dry cloth and or compressed air.
-
Page 10: Troubleshooting
WARNING: The top cover of your Marlon 200 should only be removed by a qualified service technician with the power off and the machine unplugged. This cover should never be removed by a machine operator, and must be fastened in place at all times when...
