Summary of Contents for NuWhirl PX Series

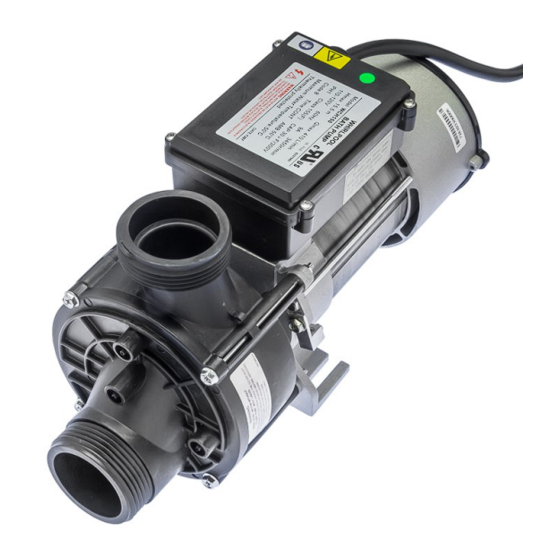

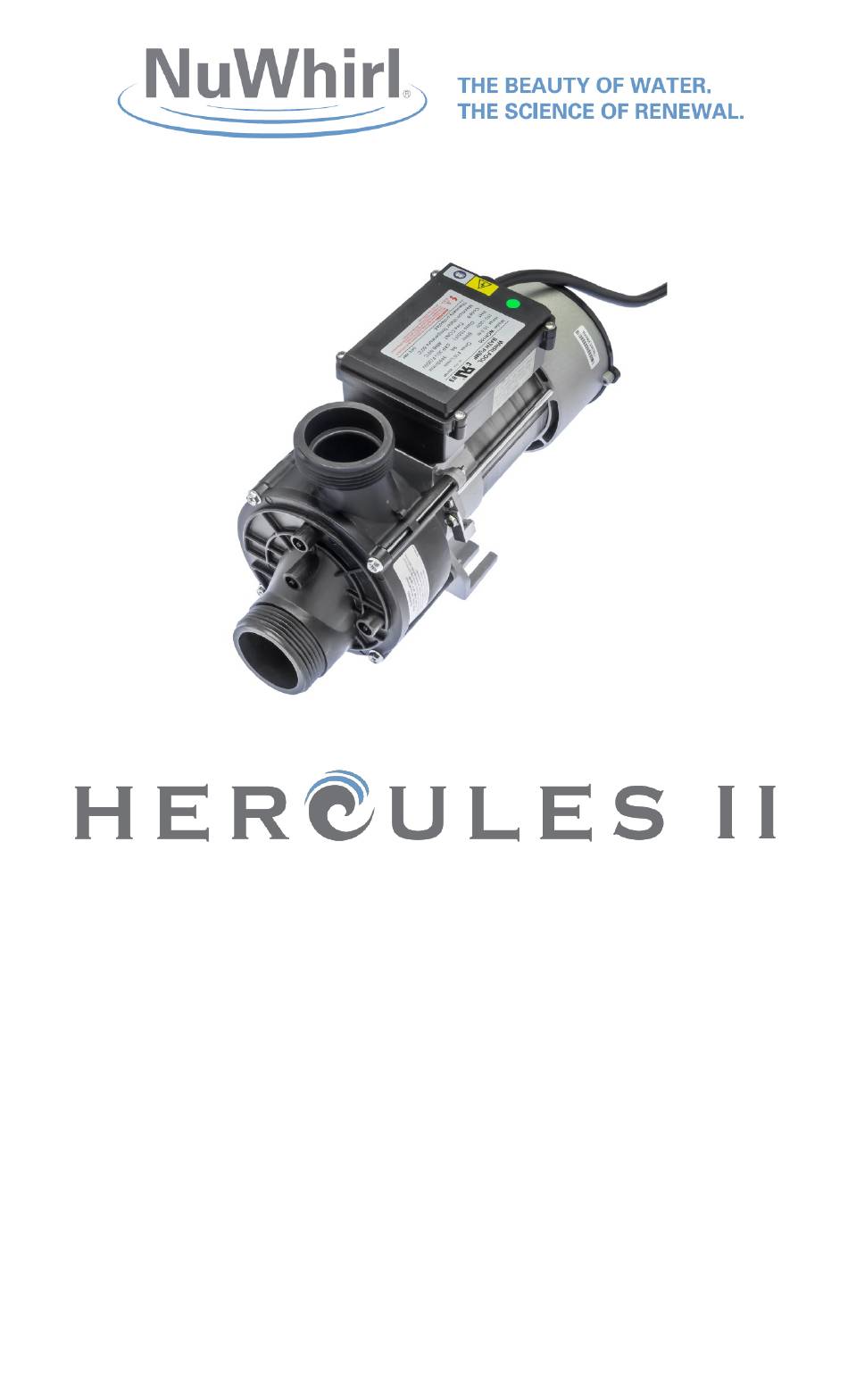

- Page 1 Hydro Massage Pumps PX-Series Pump Models Also applicable for PB-Series Brushed Motor Pumps Installation & Operating Manual NuWhirl Systems Corp | www.nuwhirl.com | 951-817-5600 900102 REV H 6/5/2019 Page 1...
- Page 2 Definitions May cause serious injuries or death WARNING CAUTION May cause property damage For information on NuWhirl Instructions, see: www.nuwhirl.com/docs/product-instructions.html When installing and using this electrical equipment, basic safety precautions should always be followed, including: WARNING: Use and follow these instructions along with all instructions that have been provided with your whirlpool bathtub in order to fully enjoy the bathtub safely.
- Page 3 Hydro Massage Pumps Installation & Operating Manual Table of Contents Tools & Pre-Installation Checklist…………..…………………………. P.4 Pump Installation……………..……………………………..…………... P.6 Pump Wiring………...……………..……….……………..………...… P.8 General Operating Instructions and Notes……..…..………...… P.9 WARNING: INSTALLATION MANUAL NOT FOR USE BY END-USERS. All Installation Procedures are for use by Tub Manufacturers or Qualified Service Personnel ONLY.
- Page 4 Tools & Pre-Installation Checklist Note: Pump Stands 600110 (3-6” Adjustable) and 600111 (3” Fixed Height) for Hercules II PX-Series Pumps are sold separately by NuWhirl and include required installation hardware to connect the Pump with the Stand. CAUTION Verify compatibility or suitability of product in the intended application and environment.
- Page 5 Hydro Massage Pumps Installation & Operating Manual The pump must be installed on the outside of the tub below the normal water level. The pump should be secured firmly in place with bolts or screws to avoid noise and vibration. The elevation of the Pump should be leveled which allows for a continual rise of the Suction Line from the Tub Suction Port to the Pump...
-
Page 6: Installation Instructions
Installation Instructions After completing the Pre- Installation Checklist, position the Pump and applicable Pump Stand. Securely fasten the Pump in place with standard bolts or screws. Note For PX-Series Pump Installations with the 600110 or 600111 Pump Stand, use the hardware enclosed to firmly secure the Pump to the Pump Stand. - Page 7 Hydro Massage Pumps Installation & Operating Manual WARNING Hand Tighten Only. Do not use a pipe wrench or strap wrench of any kind. Over tightening of the nut may cause failure of the joint. WARNING The use of teflon tape or pipe compound on the fitting threads is prohibited, as these materials may react adversely with the materials used in the pump and fittings and cause failure of the joint.
-
Page 8: Pump Wiring
Pump Wiring Make sure power is off from the source before installation. The pump must be wired for the proper voltage by a licensed electrician in accordance with all applicable electrical codes. The voltage, ampere draw, and frequency are listed on the pump nameplate. WARNING: Do not exceed nameplate voltage. - Page 9 Hydro Massage Pumps Installation & Operating Manual General Operating Instructions Note The Water System-equipped tub system may be operated with TOUCHSTONE® Electronic Controls. For specific operations related to a tub equipped with TOUCHSTONE, please refer to the Dual Load Controller Manual MANCIMC296, Master Bath Controller MANCMBC298 or the document supplied either with the tub or from your Sales Representative.
- Page 10 General Operating Instructions (continued) Additional Notes on Pump Operations The pump is not self-priming. In order to avoid damage to the seal in the pump, always fill the bathtub to at least 1” above the highest jet in the system before starting the pump. This will not only ensure that the pump will not run in a dry condition, but will also avoid water from being discharged outside of the bathtub and causing a slipping hazard on the floor.
- Page 11 Hydro Massage Pumps Installation & Operating Manual Page 11...
-
Page 12: Retain This Manual For Future Reference
Retain this manual for future reference NuWhirl Systems Corp | www.nuwhirl.com | 951-817-5600 900102 REV H 6/5/2019 Page 12...
