Cosmic HC08 Quick Start Manual

Starter kit

The Cosmic Software 68HC08 Starter Kit includes everything you need to write, compile, debug and program a full

on-chip application for the 68HC08JK1 processor. In less than an hour, you can program an application and see it

running in real-time.

Cosmic 68HC08 IDEA – Integrated Development Environment

Cosmic 68HC08 Compiler, Assembler and Linker

Cosmic ZAP 68HC08 Debugger Simulator

Cosmic ZAP 68HC08 MON08 Debugger and Flash Programmer

Working example application using the on-chip Analog to Digital

converter and LEDs

Documentation and board schematic

This is a great learning tool to jump start HC08 development with an easy to use integrated package.

For a limited time, purchase the starter kit and receive a full credit towards an upgrade to any

Oakwood House, Wield Road, Medstead, Alton, Hampshire GU34 5NJ, ENGLAND – Tel. : +44 (0) 1420 563498 Fax :+44 (0) 1420 561946

HC08

STARTER KIT

The Starter Kit includes :

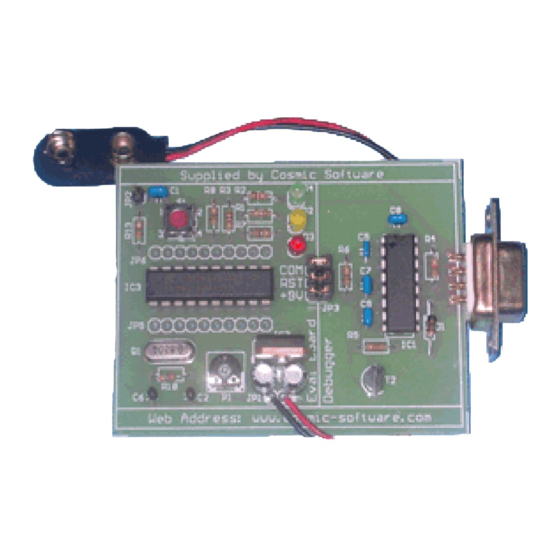

Cosmic MC68HC908JK1 Development Board

Colored LEDs and push button configured to work with PORTB

Potentiometer setup to operate the ADC

Direct MON08 connection via standard serial cable

9 Volt battery

Serial debug cable

The complete kit is only £79 while supplies last.

68HC08 professional package.

http://www.cosmic-software.com

Email : sales@cosmic.co.uk

Table of Contents

Need help?

Do you have a question about the HC08 and is the answer not in the manual?

Page 1 The complete kit is only £79 while supplies last. This is a great learning tool to jump start HC08 development with an easy to use integrated package. For a limited time, purchase the starter kit and receive a full credit towards an upgrade to any 68HC08 professional package.
Page 2 Cosmic Software 68HC908JK1 Evaluation Board 68HC908JK1 Evaluation board provides a complete target system with a serial debug connection that can be used with Cosmic Software’s development tools to create and debug real programs for the 68HC08 range of micro controllers. The serial debug interface included on the evaluation board can also be used to debug other 68HC08 target systems that do not have a dedicated serial debug interface.
Page 3 The monitor program does not have a single step function or an abort function. However, the 68HC08 hardware does provide a single hardware break point register. The Cosmic Zap debugger uses this breakpoint feature to implement both assembly level and C level single stepping.
Page 4 tell the debugger that the target is being aborted and the key inputs actual cause a hard reset to take place. Because a hard reset has occurred, the code being debugged cannot be continued, only restarted and the values of the processor’s registers will be lost. RAM values are preserved.
