AC-FIX – V1.1_20121102

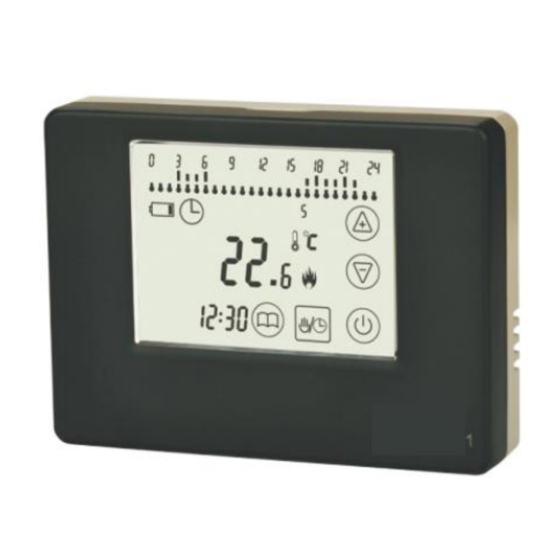

9006-15 Room thermostat with batteries
Feature
Radio frequency 433 MHz, one-to-one or many-to-one.
A variety of solutions.
A potential-free connected controlling port.
Special for underfloor heating or boiler heating.
2 pieces size AA batteries to ensure the power of one heating season.
Adopt magnetic latching relay, low power consumption.
24 events every day, 7-day programmable controller.
Energy-saving temperature and comfort temperature selectable.
Parameter memory anti frozen function.
Key-lock function, low battery indicator.
Touch screen thermostat.
Large LCD screen with white backlight.
Wall surface mounted.
AC-FIX 2012 11.02

Advertisement

loading

Summary of Contents for AC-FIX 9006-15

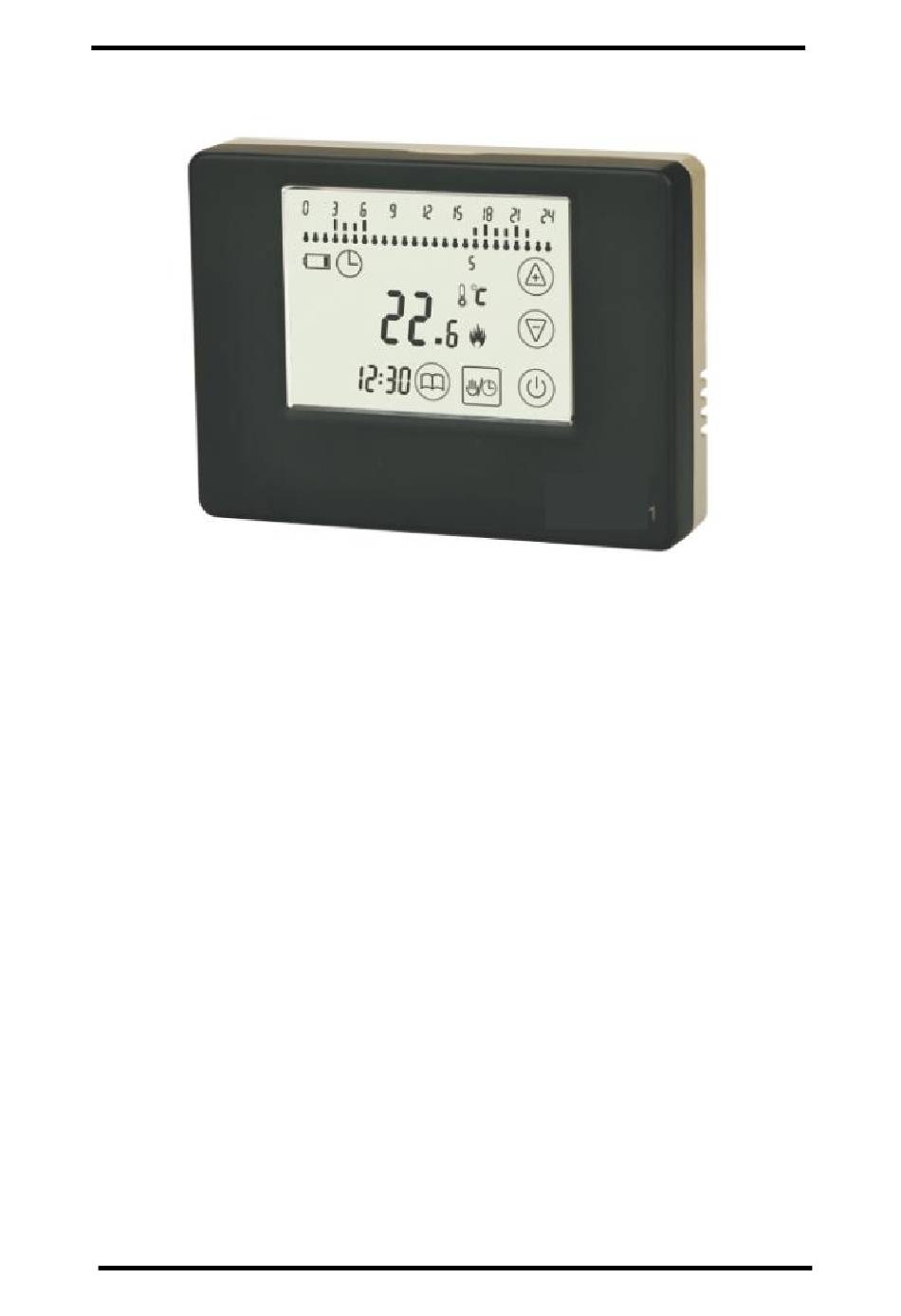

  • Page 1 AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Feature Radio frequency 433 MHz, one-to-one or many-to-one. A variety of solutions. A potential-free connected controlling port. Special for underfloor heating or boiler heating. 2 pieces size AA batteries to ensure the power of one heating season.

  • Page 2: Dimensions (Mm)

    AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Parameter Dimensions (mm): Power supply: DC3V, 2 pieces size AA batteries Wireless frequency: 433MHz Measuring range: 0 ~ 95ºC Setting range: 5 ~ 90ºC Switching differential: 0.5 ~ 5ºC adjustable (factory setting: 1ºC)

  • Page 3: Key Lock Function

    AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Three control modes: Manual temperature control, periods programming control, anti-frozen protection control. Manual temperature control: thermostat will control room temperature according to current set temperature value, it has nothing to do with time (event).
  • Page 4 AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Advanced setting (qualified person preferred) Usually finished at mounting thermostat. Press menu key simultaneously switching on the thermostat to enter advanced setting. 1ADJ: Temperature calibration. Press + or – key to adjust present checked value.
  • Page 5 AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Energy-saving and comfort temperature setting When in work mode energy-saving and comfort temperature setting as following. Press menu key one time to enter to set mode. Set comfort temperature, the LCD screen as following: Press + or - key to adjust the comfort temperature.
  • Page 6 Press – key once more to enter to next programming event. 8) Press menu key again to enter next day programme set. Do it like above to finish the weekly programme set. Application I: Apply to 9006-15(1) (wireline) mode. AC-FIX 2012 11.02...
  • Page 7 AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Application II: Apply to 9006-15 thermostat (wireless) mode. Application III: 9006-15 wireless thermostat many- to- one, which applies to temperature controls for separate room. AC-FIX 2012 11.02...
  • Page 8 AC-FIX – V1.1_20121102 9006-15 Room thermostat with batteries Mounting: AC-FIX 2012 11.02...
