ASSEMBLY INSTRUCTIONS

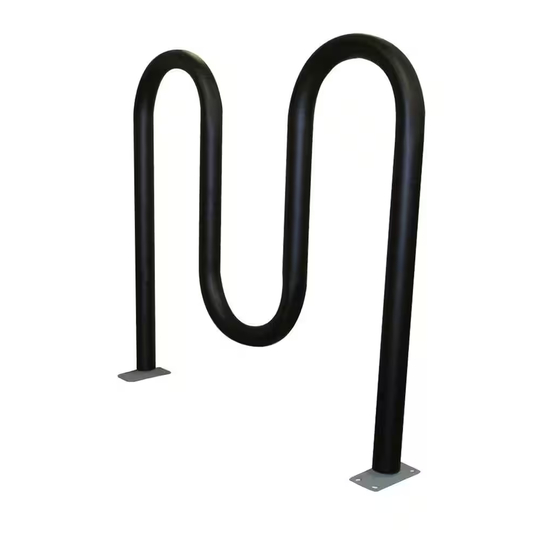

1 HUMP/2 HUMP COMMERCIAL BIKE RACK
VERIFY ALL COMPONENTS ARE INCLUDED IN PACKAGING
ITEM #
DESCRIPTION
1
1 HUMP OR 2 HUMP MAIN TUBE
2
GALVANIZED FOOT PLATE
5/16-18 X 1.00 TRUSS HEAD
3
PHILLIPS MACHINE SCREW,
BLACK ZINC PLATED
4
PHILLIPS DRIVER BIT (#4 Drive)
3/8-16 X 2-1/4 CONCRETE
5
ALL SURFACE MOUNTED PRODUCTS MUST BE LAGGED INTO A SOLID SURFACE USING
CONCRETE ANCHORS. THE CLOSEST EQUIVALENT ANCHOR SIZE RELATIVE TO THE FOOT
PLATES HOLE DIAMETER MUST BE USED, AND ANCHORS MUST BE USED IN EACH AVAILABLE
HOLE. PARIS EQUIPMENT MANUFACTURING LIMITED ASSUMES NO RESPONSIBLITY FOR ANY
INJURY AND/OR DAMAGE TO PERSONS OR PROPERTY DUE TO IMPROPER INSTALLATION.
PART # 462‐680/681
ASSEMBLY INSTRUCTIONS
ANCHOR
WARNING
QTY
1.00
2.00
4.00
1.00
4.00
Page | 1
05/02/2014
