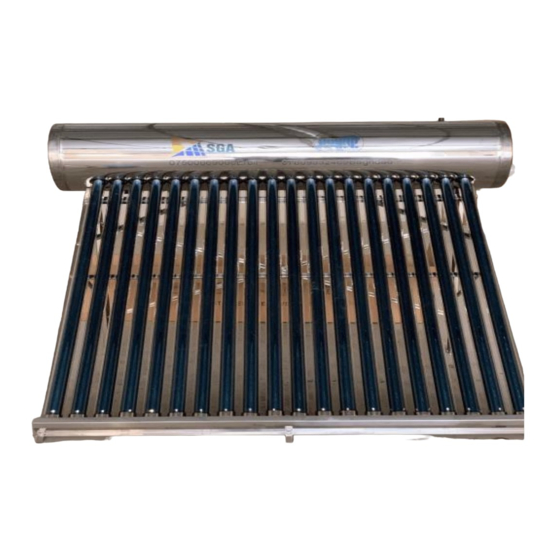

Heat Pipe Vacuum Tube Solar Water heater
Non-pressure
User manual
Please read this manual carefully before
beginning installation
Bilad Utu for Energy Solutions Company | Green Agate LLC Company for Solar Services
Locations: Baghdad, Erbil (HQ) | Branches in all provinces
Contacts:
infor@biladutu.com
|
info@solar-ga.com
| 07702733733 | 07500669000
Www.biladutu.com
| www.solar-ga.com
Advertisement
Summary of Contents for SGA YS-NP 58-20
- Page 1 Heat Pipe Vacuum Tube Solar Water heater Non-pressure User manual Please read this manual carefully before beginning installation Bilad Utu for Energy Solutions Company | Green Agate LLC Company for Solar Services Locations: Baghdad, Erbil (HQ) | Branches in all provinces Contacts: infor@biladutu.com info@solar-ga.com...
-
Page 2: Safety First
Specification | MODEL: YS-NP 58-20 / YS-NP 58-15 ● Tubes 15 --- 20 QB-AL-CU-SS-58-1800 mm, Color is Blue, ● Nominal volume tank capacity 150L --- 200L ● Frame material : Stainless steel SUS 201 1.2mm material. ● Tank (Out) : SUS 201 0.5 mm stainless steel | 460 Diameter ●... -
Page 3: Safety Tips
Safety tips ● Wear gloves and overalls ● Erect in a suitable place out of reach of adults/children. ● Do not over pressurize the system . ● Read the instructions priors to assembling . ● If a tubes breaks , please cut off the water supply & call your repairman to check it &... - Page 4 Glass tube indirect mains pressure system Main pressure glass tube system rey on copper collector pipes containing refrigerant inside the glass tubes , the sun’s energy vaporizes the refrigerant , which then transfer the energy in heat exchanger manifold to the water . the resulting hot water is then pumped to your hot water tank through another exchanger , these systems are more complicated , contain expensive copper pipes and cost much more .
-
Page 5: Components And Dimensions
Components and Dimensions 1. Water tank 2. T&P valve 3. Cable (for electric heater and temperature sensor) 4. Solar tube 5. Front track 6. Bottom track 7. Tube bottom holder... -
Page 7: Installation
Installation Select south-faced roof to install solar water system , the installation angle should be equal as local latitude degree , the roof should be strong enough to load the system without shadow surrounded . Flat roof installation / Erbil Flat roof installation / Baghdad... - Page 8 Support mounting on sloping roof Assembly horizontal tracks , front tracks on the roof as below figure , Fix the one end of perforated brands on the roof as below figure requested size under tracks assembly , then the other end of perforated bands hold the horizontal tracks with screws .
- Page 9 Flat roof support assembly Galvanized steel with powder coating With 2 holders With 3 holders...
- Page 10 Aluminium Alloy Frame With 2 holders With 3 holders...
- Page 11 Assembly the solar tubes and bottom holder As right figure ,insert solar tubes to water tank with water-proof rubber ring on the glass tube top and thermal condition paste on heat pipe condenser. After assembly solar tubes , fix tube bottom plastic holders on the bottom track as right figure .
- Page 12 Cautions ● Gloves and eye protection must be used when handing glass tubes , Avoid scratching or any sudden shock to tubes ● No installation solar water tubes before other components assembly , once installation solar tubes , ensure the storage water tank was full of water (prevent high temperature to effect whole system) ●...
