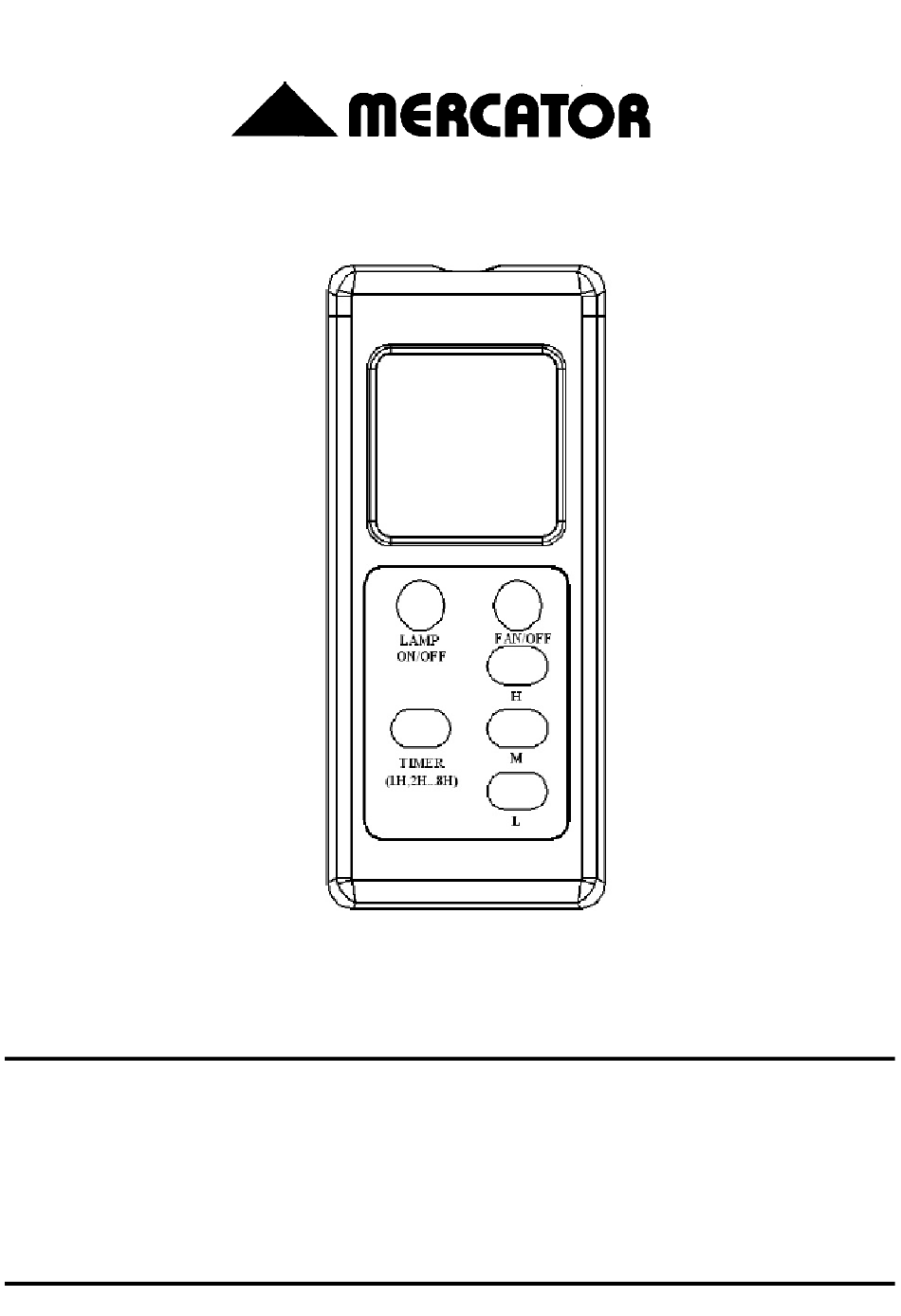

- Page 1 THE QUALITY BRAND IN FANS Minor design changes or otherwise may result in slight variations between the product illustrated and that which is contained within this package INSTALLATION AND OPERATION INSTRUCTION BOOK, REV 3.0 Models: FRM97 LCD REMOTE CONTROLLER FOR CEILING FANS...
- Page 2 TABLE OF CONTENTS INTRODUCTION .................................. 1 SAFETY PRECAUTIONS ................................ 2 INSTALLATION INSTRUCTIONS ............................ 3 WIRING DIAGRAM .................................. 6 Suitable for use with fluorescent or compact fluorescent lamps Suitable for use with energy saving halogen globe or equivalent Rev 3.0...
- Page 3 INTRODUCTION CONGRATULATIONS ON YOUR CHOICE Thank you and we are delighted you have chosen a MERCATOR remote controller for your home. Please read all instructions carefully before assembly and use. SAFETY NOTICES WARNING / CAUTION A WARNING / CAUTION notice denotes a hazard. It calls attention to an installation procedure, operating procedure, maintenance procedure, or the like, that if not correctly performed or adhered to, could result in damage to this appliance, personal injury or death. Do not proceed beyond a WARNING / CAUTION notice until the indicated conditions are fully understood and met.
- Page 4 Please observe the following general safety precautions carefully before and during all phases of handling, installation, removal, operation and maintenance of this product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Mercator Lighting assumes no liability for customer’s failure to comply with these requirements. SAFETY WARNINGS 1. Read all instructions and safety information. Review assembly diagrams provided before installing your new ceiling fan.
- Page 5 INSTALLATION INSTRUCTIONS Make sure electricity is turned off at the main power box before commencing work. Turn off the power by removing fuse or turning off circuit breaker before installing remote controller. READ BEFORE INSTALLATION 1. Power supply to input wires of remote controller receiver must be connected through an isolation switch (e.g. wall switch). 2. Install remote controller receiver inside ceiling fan canopy to ensure proper protection. 3. Set ceiling fan speed control rotary switch (if any) to HIGH setting and control switch for light kit (if any) to ON position before operating remote control functions. 4. For ceiling fan with pull chain switches, set pull chain switches accordingly so that ceiling fan speed setting is at HIGH and fan light setting (if any) is at ON position before operating remote control functions. 5. Battery will weaken over time and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly.
- Page 6 INSTALLATION INSTRUCTIONS Possible DIP Switch Setting (ON setting represented by 1; OFF setting represented by Make sure electricity is turned off at the main power box before commencing 0000 0100 1000 1100 0001 0101 1001 1101 work. Turn off the power by removing 0010 0110 1010 1110 fuse or turning off circuit breaker before 0011 0111 1011 1111 installing remote controller.

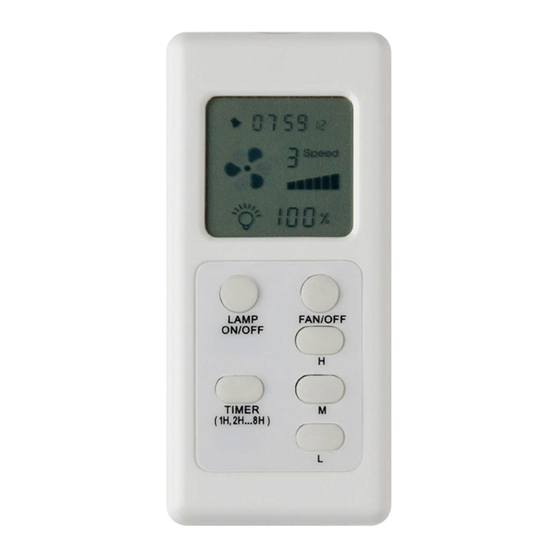

- Page 7 INSTALLATION INSTRUCTIONS FUNCTIONS 4. Tidy up wires and re‐install fan canopy. Make sure not to break any wire connection. 6. Install battery supplied into battery compartment. FAN/OFF: Turn off ceiling fan H: Turn on the fan at high speed M: Turn on the fan at medium speed L: Turn on the fan at low speed LAMP ON/OFF: Toggle light on or off TIMER (1H, 2H...8H): Fan delayed off. Possible delay settings are 1H, 2H…up to 8H 5. Install wall bracket at a suitable location. Rev 3.0...
- Page 8 WIRING DIAGRAM WIRING DIAGRAM FOR FAN CONTROLLED WITH REMOTE CONTROLLER IMPORTANT: Keep antenna safely inside canopy. Make sure its wiring is not cut or damaged. Rev 3.0...
Need help?
Do you have a question about the FRM97 and is the answer not in the manual?
Questions and answers
My remote is playing up…. When I select medium speed for ****, it won’t shut down. Other speeds and light operate once I have switched the **** off at the wall switch. I have replaced the battery (yes, with the right size battery) FRM 97 (B/N 17890-010918) bloody annoying!!
The MERCATOR FRM97 remote may not be shutting down on medium speed due to a possible issue with the receiver, interference with the RF signal, or a malfunction in the remote control itself. Ensure the receiver is correctly installed in the canopy of the ceiling fan, check the battery in the remote, and verify that no external sources are interfering with the RF frequency. If the issue persists, it may require troubleshooting by a licensed electrician, as installation must comply with safety regulations.
