Industrial Hardened Gigabit 95W POE Injector User Manual
This quick start guide describes how to install and use the Gigabit PoE Injector. The PoE Injector supports LTPoE++ 95W
high power and it is a perfect choice for no power source of Ethernet environments.

Overview

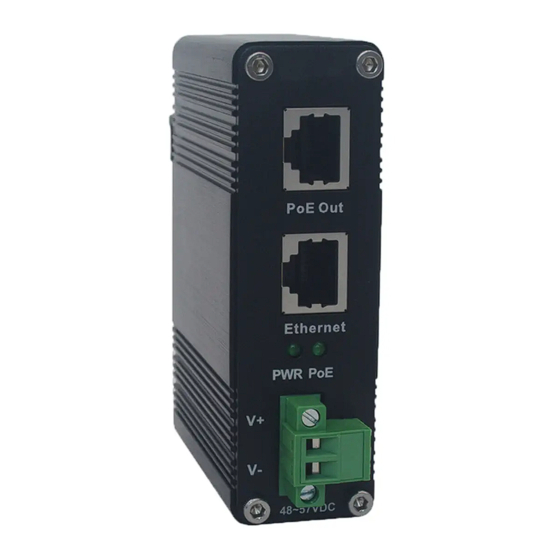

INJ-IG01-95W is a Hardened PoE Injector which provides two 10/100/1000Base-TX ports and one port for
PoE++ 95W PSE (Power Sourcing Equipment) and compliant with IEEE 802.3bt.

General

To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and
properly packed before delivery. Check the product upon receipt for any visible damages which may have
been caused during shipment.

Package Content

INJ-IG01-95W, Industrial 95W PoE Injector x 1 PCS
User Manual x 1 PCS

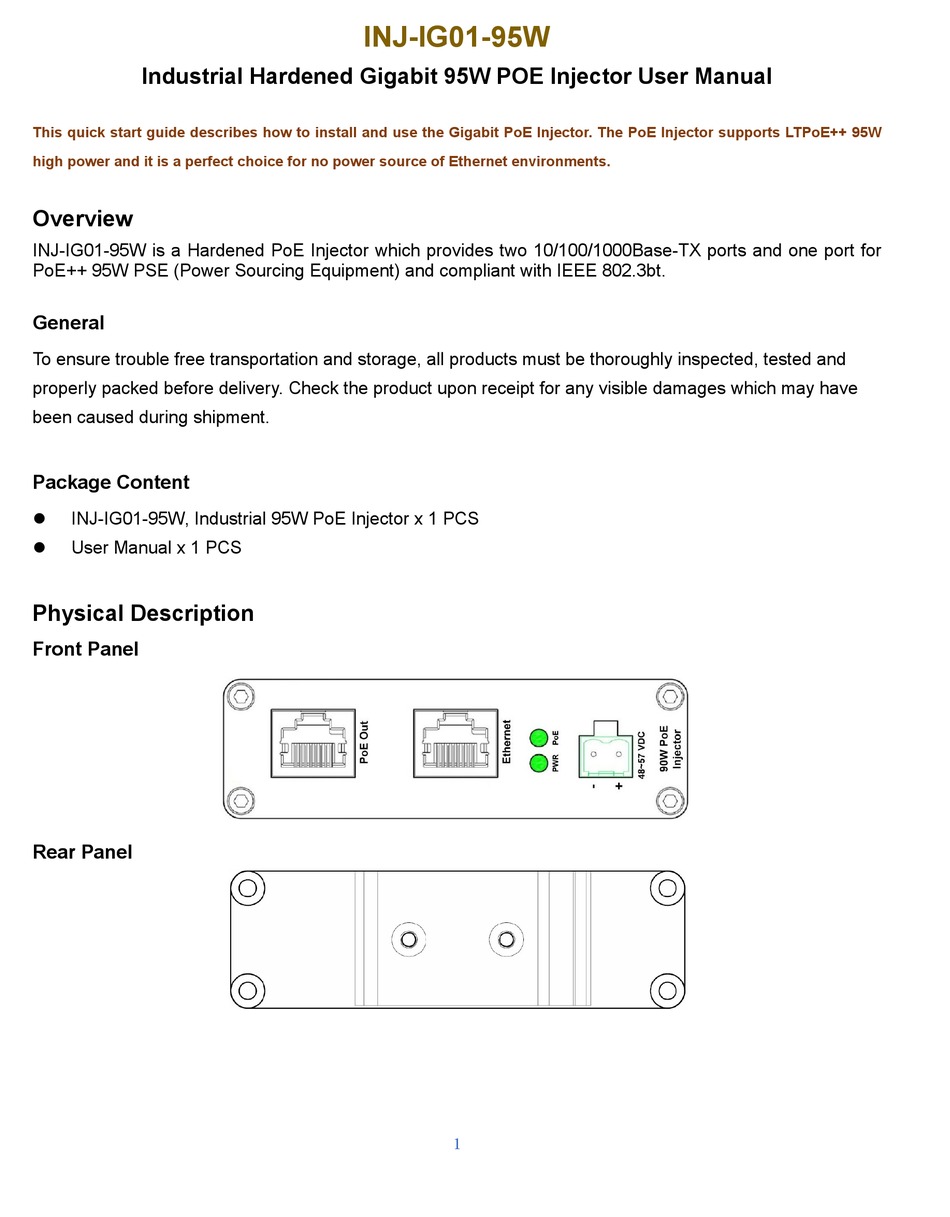

Physical Description

Front Panel
Rear Panel
INJ-IG01-95W
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INJ-IG01-95W and is the answer not in the manual?

Questions and answers

Summary of Contents for Megatel INJ-IG01-95W

  • Page 1 Ethernet environments. Overview INJ-IG01-95W is a Hardened PoE Injector which provides two 10/100/1000Base-TX ports and one port for PoE++ 95W PSE (Power Sourcing Equipment) and compliant with IEEE 802.3bt.
  • Page 2 INJ-IG01-95W Industrial Hardened Gigabit 95W POE Injector User Manual Installation DIN Rail Installation This injector can be installed on a DIN rail. Installation steps are as follows: Press Upper part 1. Tighten the screws to fix the 2. Lock the upper part of the DIN...
  • Page 3 INJ-IG01-95W Industrial Hardened Gigabit 95W POE Injector User Manual and the power supply is functioning normally. b) Connect the Ethernet Port to the network equipment (Switch or Hub), Connect the PoE Out Port to the Power Device (PoE IP-CAM). c) After all cables are correctly connected, the indicators will be lit as per port status LED Indicators.
  • Page 4 INJ-IG01-95W Industrial Hardened Gigabit 95W POE Injector User Manual Dimensions of this Injector (Unit: mm) Functional Descriptions • 1 RJ45 Gigabit data input port to 1 RJ45 Gigabit PSE output port (Data + Power) • Support PoE++ (95W) • Compatible IEEE802.3bt PoE++ •...
