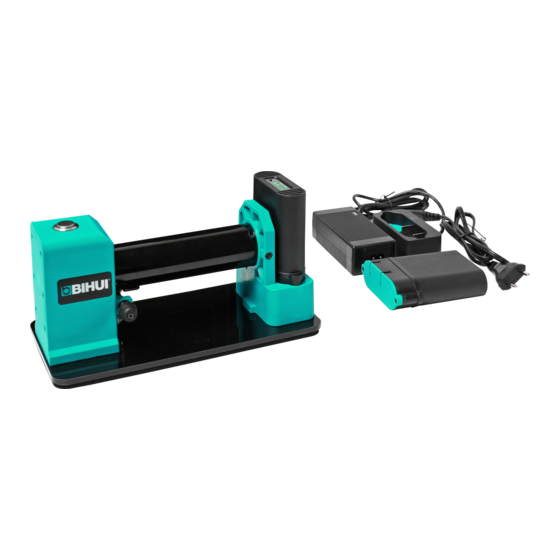

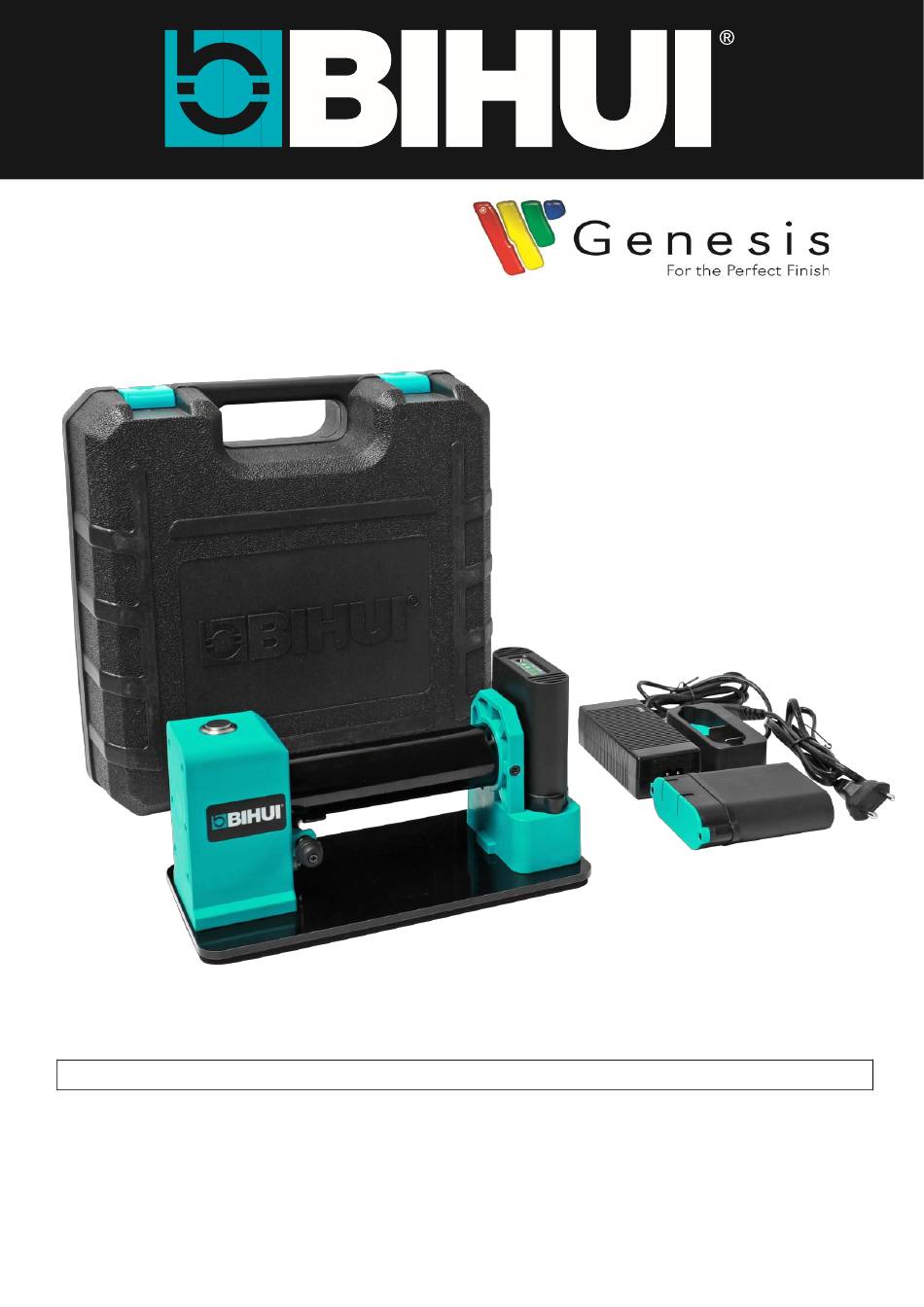

- Page 1 BLFEVS Original instructions Read before use Symbols The following are the icons that are used for the tool. Make sure you fully understand them before using them.
-
Page 2: Read The Manual
Read the manual Danger: Risk of injury and equipment damage. General safety instructions for power tools WARNING Read all safety instructions, instructions, illustrations and technical data provided with this power tool. Failure to follow the instructions below may result in electric shock, fire and / or serious injury. - Page 3 b) Wear personal protective equipment and always safety goggles. Wearing personal protective equipment such as a dust mask, non-slip safety shoes, hard hat or ear protection, depending on the type and use of the power tool, reduces the risk of personal injury. c) Avoid unintentional start-up.
- Page 4 a) Charge the batteries only with chargers recommended by the manufacturer. A charger suitable for a particular type of battery may cause a fire when used with other batteries. b) Use only the appropriate batteries in the power tools. Use of other batteries may cause injury or fire.
- Page 5 Instructions for use of Vacuum lifter 1. Always make sure that you have a firm footing. Make sure that there are no people under the unit when using the unit in a high location. 2. Do not carry heavy objects weighing more than 70 kg. 3.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS FOR THE BATTERY CASSETTE Before using the battery, read all instructions and warnings on the charger, the battery, and the product that uses the battery. Do not disassemble the battery. If the operating time has become too short, stop operation immediately. There is a risk of overheating, burns and even explosion.
- Page 7 KEEP INSTRUCTIONS ATTENTION: Please only use the original Kinty battery. Any use of a non-original or new battery can cause an explosion, even possible fire, personal injury, or property damage. And Kinty's warranty terms will not apply in this case. Tips for getting the maximum battery life - Charge the battery cartridge before you have completely discharged it.
-
Page 8: Specifications
1. switch 2. handle 3. battery 4. battery button 5. bottom plate 6. sealing ring 7. Pressure release key 8. Pressure relief valve 9. Limit pin 10. Knob Specifications Model . BLFEVS Nominal voltage 14.4V D.C Vacuum pressure -55Kpa Charging time 1 Hour Noise Vibration... - Page 9 C18650P-2000mAh, Li-ion, 3.7V, 2000mAh Charger approved according to Modell: XZ0550-0400WU; EN60335-2-29 Input: 100-240VAC, 50-60Hz, 0.3A Output: 14.4 VDC, 2000mA Lift weight(MAX) 70 Kg • Due to our continuous research and development program, the Specifications are subject to change without notice. •...
-
Page 10: Description Of Operation
Press the button 11 to turn on the battery capacity indicator 12. The number of lights shows the remaining power. If the light turns red, charge the battery in case of damage. DESCRIPTION OF OPERATION CAUTION: Always make sure the device is turned off and the battery is removed before adjusting or checking the device. - Page 11 ⚫ To insert the batteries 3, align the tabs of the batteries 3 with the grooves in the handle holder 13 and slide them in. Be sure to insert it completely until the push button 16 is locked by the battery button 4.
- Page 12 Operating • Hold the handle 2 firmly, push it down properly and then press the button on the switch 1 with your thumb. The tool starts to work. • When the tool is working, you will hear a low noise from the vacuum pump and feel thevibration.
-
Page 13: Turn Off The Power
Turn off the power • Press the 1 button again with your thumb to relax. The switch 1 of the switch rebounds, the power supply is switched off and the vacuum pump stops working. Release vacuum pressure • Due to the function of the seal, the vacuum pump maintains the vacuum after it has stopped working, and the machine must be unloaded before it can be removed. - Page 14 •Pull the pressure relief key 7 upwards. At this time, the pressure relief valve 8 is opened and the negative pressure released. Removal the tool • After the pressure relief is between the tool and the object to be lifted no more suction and the machine can be removed.
- Page 15 Pressure relief key return • After the pressure is released, the pressure release key 7 is released, and under the joint action of the torsion spring 21 and the spring 44, the limit pin 9 and the knob 10 return to the position, and the pressure release key 7 is held.
-
Page 16: Maintenance
Charging • The batteries 3 are inserted into the charger 17 and charged for one hour. • Check the battery level after charging is complete. MAINTENANCE ATTENTION ⚫ Always make sure that the power is off and the battery has been removed before ⚫... -
Page 17: Optional Accessories
⚫ Check the vacuum cleaner for dust accumulation. If dust is present, blow off the dust with compressed air. ⚫ Do not remove dust with liquids or other chemical solvents, as this may damage the vacuum pump. OPTIONAL ACCESSORIES ATTENTION •... - Page 18 Shaft-side drawing and main parts list...
-
Page 19: Ec Declaration Of Conformity
Do not dispose of electrical appliances in the household waste. According to European Directive 2012/19 / EU on waste electrical and electronic equipment and transposition into national law, used electrical appliances must be collected separately and recycled in an environmentally sound manner. Recycling alternative to the return request: As an alternative, the owner of the electrical appliance is obliged to cooperate with the proper utilization in the case of the assignment of property instead of return. - Page 20 Voltage: 14.4V D.C Guaranteed Sound power level 60dB(A) Relevant EC directives: 2006/42/EG 2014/30/EU 2011/65/EU Applied harmonized standards: EN 62841-1:2015 Manufacturer's signature / place / date: Documentation Agent:...
- Page 21 Genesis For the Perfect Finish...
- Page 22 BIHUI. PROFESSIONAL TILING TOOLS...
