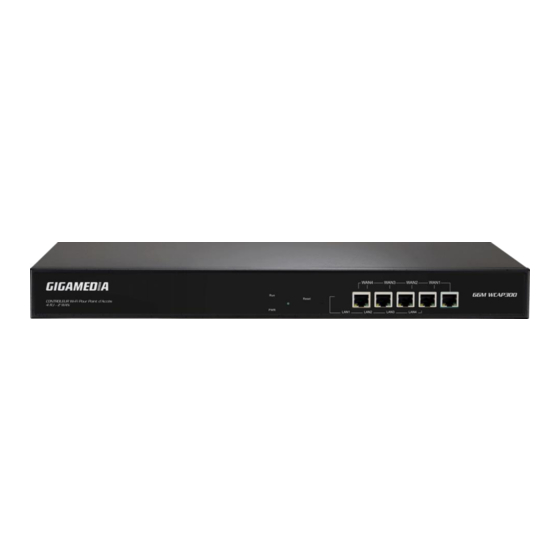

GGM WCAP300 – CENTRALIZED WIFI CONTROLLER
4 Ports Lan 10/100/1000, 2 WAN
Quick Guide

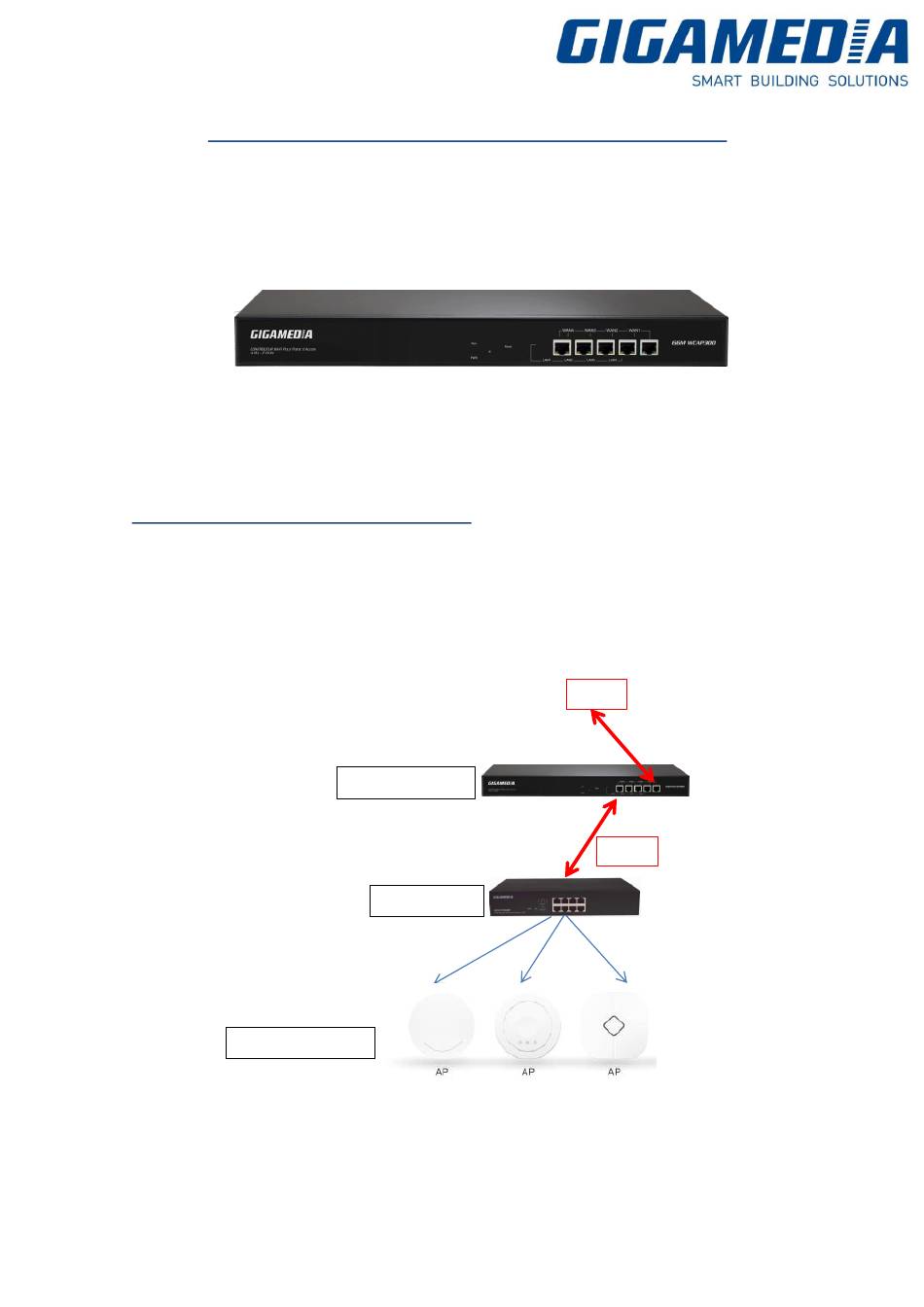

1- Diagram / How to use WIFI Controller
The Wi-Fi controller allows the deployment and the easy and fast management of several Wifi access
points (AP) in your network.
Wireless network management includes real-time control of Access Point (AP) status, quality of
service, and enhanced security policy.
WAN
Wifi Controller
LAN1
POE Switch
Access Point (AP)
www.gigamedia.net
Advertisement
Table of Contents
Summary of Contents for GIGAMEDIA GGM WCAP300
- Page 1 GGM WCAP300 – CENTRALIZED WIFI CONTROLLER 4 Ports Lan 10/100/1000, 2 WAN Quick Guide 1- Diagram / How to use WIFI Controller The Wi-Fi controller allows the deployment and the easy and fast management of several Wifi access points (AP) in your network.
-
Page 2: Quick Installation
Connect your PC with the LAN Port then login Web Management with Internet Explorer. You must configure your PC with a fixed IP address 192.168.10.X (X between 2 and 253) IP Address by default (LAN): http://192.168.10.1 Identification: admin Password: admin LAN Settings: Tab Gateway then LAN, to modify IP Parameters www.gigamedia.net... - Page 3 Please choose your WAN Settings according to your connection Mode: Manage and integrate Access Point (AP) 2 methods : a) By Groupes b) Zero Config Click on AC button, you will see all AP connected into this Wifi Controller. www.gigamedia.net...
- Page 4 Creation of one or more groups Customize your Wifi Settings for this group : Status: Enable SSID: Name of your Wifi Security: Add a security Key www.gigamedia.net...
- Page 5 Attention: it is recommended, first, to set the Zero Config before connecting all Access Points. If not, configuration of Access Points will be enable after restarting it Manage Access Point Here, you can use those functions: IP Filtering Port Filtering MAC Filtering QoS and Bandwidth Management Policy Type: www.gigamedia.net...
- Page 6 Source IP Address: Policy based on source IP address Destination IP address: Policy based on destination IP address Source MAC address: Policy based on source MAC address Network Interface: Policy based on router interface Domain Policy: Policy based on router domain www.gigamedia.net...
-
Page 7: Flow Control
It is including smart QoS and Speed Limit in Flow Control. Smart QoS It is set priority bandwidth for application class to make it work freely. peed Limit Speed Limit: Mean limit end users Ethernet speed; Should add IP group first, then choose the limited mode. Routing www.gigamedia.net... -
Page 8: Url Filter
Static Route: add the static router based on destination IP address. URL Filter When enable URL filter, the router can reject users to visit the denied URL. IP Filter When enable this function, router will allow or limited this IP address to access into this router based on rules. www.gigamedia.net... -
Page 9: Mac Filter
MAC Filter When enable MAC filter, router will allow or prohibit this MAC address to access into this router based on rules. www.gigamedia.net...
