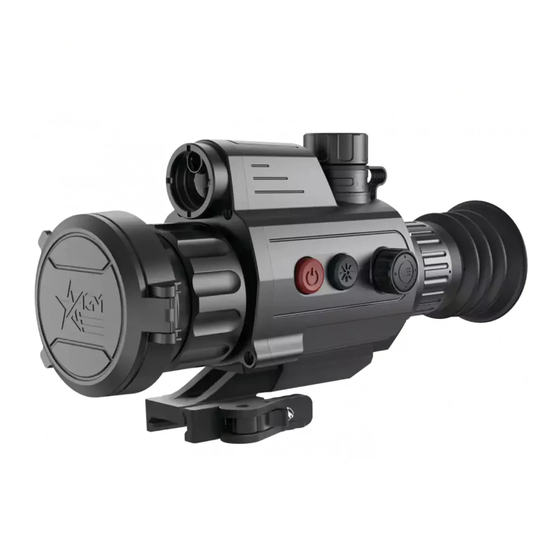

AGM Global Vision RATTLER LRF User Manual

Thermal imaging riflescope with laser rangefinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

RATTLER LRF
THERMAL IMAGING RIFLESCOPE
WITH LASER RANGEFINDER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RATTLER LRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AGM Global Vision RATTLER LRF

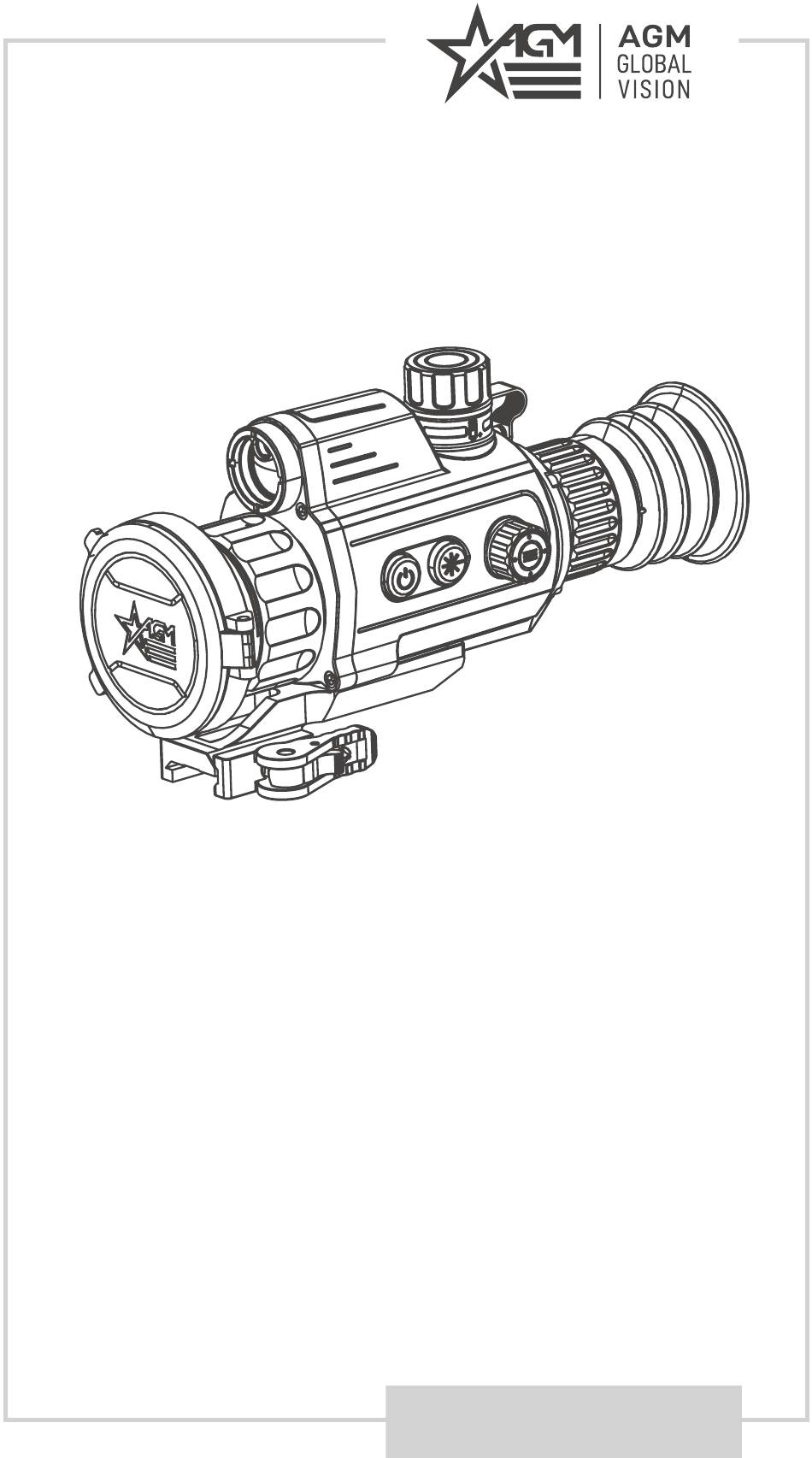

  • Page 1 RATTLER LRF THERMAL IMAGING RIFLESCOPE WITH LASER RANGEFINDER USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S.
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info INDUSTRY CANADA ICES-003 COMPLIANCE This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. RATTLER LRF USER MANUAL...

  • Page 4: Table Of Contents

    1.3 Optional Equipment 1.4 Key Features 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    2 m of the charger during charging. • DO NOT place the battery near heating or fire source. Avoid direct sunlight. • DO NOT swallow the battery to avoid chemical burns. • DO NOT place the battery in the reach of children. RATTLER LRF USER MANUAL...
  • Page 6 Before enabling the light supplement function, make sure no human or inflammable substances are in front of the laser lens. Do not place the device where minors can fetch it. AGM Global Vision...

  • Page 7: General Information

    The built-in laser range finder of the AGM Rattler LRF is designed to determine the exact distance between the observer and the target. Measurement results are displayed on the scopes monitor. One 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation time.

  • Page 8: Standard Components

    The ITEM column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM DESCRIPTION QUANTITY Riflescope 18650 Rechargeable Battery USB Cable Battery Charger Power Adapter Lens Cloth User Manual AGM Global Vision...

  • Page 9: Optional Equipment

    On-board video recording and snapshot • Built-in EMMC storage (16 GB) • Wi-Fi data transmission • Standby mode • Up to 4.5 hours continuous runtime • External power supply compatibility • Waterproof & shockproof • Limited 3-year warranty RATTLER LRF USER MANUAL...

  • Page 10: Operating Instructions

    3. Turn the battery cover clockwise to tighten it. FIGURE 2-1. BATTERY INSTALLATION NOTE: Remove the battery from the battery compartment if the device is not used for a long time. 2.1.3 CONNECTING THE DEVICE 1. Open the USB interface cover. AGM Global Vision...
  • Page 11 2.1.4 CONTROL BUTTONS The Rattler LRF controls are shown in Figures 2-3 and are defined in Tables 2-1. Each button is responsible for some functions selected by short press or long press (hold) the button. Pushing a button for 2+ second is considered “long press”...
  • Page 12 NOTE: You must perform the focus adjustment before any further use of the riflescope. 5. Set palette, brightness, contrast, scene mode and FFC (Flat Field Correction), to display the best image effect. AGM Global Vision...
  • Page 13 1×, 2×, 4× and 8×. The image magnification value is displayed on the screen: - Rattler LRF TS35-384: 3x, 6x, 12x, 24x - Rattler LRF TS50-384: 4.5x, 9x, 18x, 36x - Rattler LRF TS35-640: 2x, 4x, 8x, 16x - Rattler LRF TS50-640: 2.5x, 5x, 10x, 20x...
  • Page 14 Reconfirm that the chamber is empty if you stop the procedure then resume later. Safe firearms handling rules should be followed at all times. The Rattler LRF comes fully-assembled with a Picatinny/Weaver mount. The mount is attached to the scope with two screws.

  • Page 15: Main Function

    3. Affix the scope to the rail by locking the lever (B). 4. Verify that the clamping device is firmly holding the Rattler LRF. If necessary, adjust the clamping device’s lever-cam lock as detailed in part 2.1.13 (Clamping Device Adjustment).
  • Page 16 5 Profiles Select the language of interface. LANGUAGE Languages View the firmware version VERSION number and serial number. Restore the device to defaults. RESTORE Time Format Set the time and date. TIME SYNC. / Time / Date AGM Global Vision...
  • Page 17 ) improves an image so that the object edge is more distinct. Jungle mode ( ) is more suitable for hunting environment because of the highlight function of small objects. 3. Hold to save settings and exit. RATTLER LRF USER MANUAL...
  • Page 18 PIP menu item and enter Picture In Picture (PIP) mode. The details show in the upper part of screen. NOTE: When Reticle is enabled, the PIP view is the detail of crosshair. When Reticle is not enabled, the PIP view is the detail of central part. AGM Global Vision...
  • Page 19 Enable the reticle to aim at the target. 1. Hold button to show the menu. 2. Select Reticle menu item. A reticle shows in the center of the view. RETICLE 1 RETICLE 2 RETICLE 3 RETICLE 4 RETICLE 5 FIGURE 2-8. RETICLE PATTERNS RATTLER LRF USER MANUAL...
  • Page 20 ADJUSTMENT RETICLE MODEL BORESIGHT INCREMENT VALUE OFFSET 0.13 mil / 0.44 MOA / RATTLER LRF 1 click 1 pixel 1.3 cm at 100 m distance / TS35-384 0.46 in at 100 yd distance 0.09 mil / 0.31 MOA / RATTLER LRF...
  • Page 21 7. Repeat step 3 to 5 to set another trajectory correction position. You can save up to five corrections for different distances. Corrective aiming points will be displayed with short lines on the reticle. 8. Hold button to exit. RATTLER LRF USER MANUAL...
  • Page 22 The device can detect the distance between the target and the observation position with laser. NOTE: When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. 1. Hold the wheel to show the menu. AGM Global Vision...
  • Page 23 5. Open the APP and connect your phone with the device. You can view the interface of riflescope on your phone. NOTE: When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically. RATTLER LRF USER MANUAL...

  • Page 24: Client Software Introduction

    User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or tablet as well as record video on phone/tablet memory. Device [Rattler LRF] Rattler LRF FIGURE 2-11. CLIENT SOFTWARE...

  • Page 25: Maintenance

    2. Connect the thermal device to your PC with USB cable. 3. Turn on the thermal device. 4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device. RATTLER LRF USER MANUAL...

  • Page 26: Troubleshooting

    The PC cannot 1. Whether the device is connected to your PC with identify the standard USB cable. riflescope. 2. If you use other USB cables, make sure the cable length is no longer than 1 m. AGM Global Vision...

  • Page 27: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 28 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...

  • Page 29: Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS RATTLER LRF RATTLER LRF RATTLER LRF RATTLER LRF TS35-384 TS50-384 TS35-640 TS50-640 12 μm VOx 12 μm VOx 12 μm VOx 12 μm VOx Uncooled Uncooled Uncooled Uncooled Detector Type Focal Plane Focal Plane Focal Plane...
  • Page 30 RATTLER LRF RATTLER LRF RATTLER LRF RATTLER LRF TS35-384 TS50-384 TS35-640 TS50-640 Highest Temperature Spot Tracking Jungle, Jungle, Jungle, Jungle, Scene Mode Recognition Recognition Recognition Recognition 5 types, 5 types, 5 types, 5 types, Reticle 4 colors, 4 colors, 4 colors,...
  • Page 31 RATTLER LRF RATTLER LRF RATTLER LRF RATTLER LRF TS35-384 TS50-384 TS35-640 TS50-640 One 18650 One 18650 One 18650 One 18650 (3.7V) Lithium (3.7V) Lithium (3.7V) Lithium (3.7V) Lithium Battery Type Rechargeable Rechargeable Rechargeable Rechargeable Batteries Batteries Batteries Batteries Battery Operating...
  • Page 32 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
