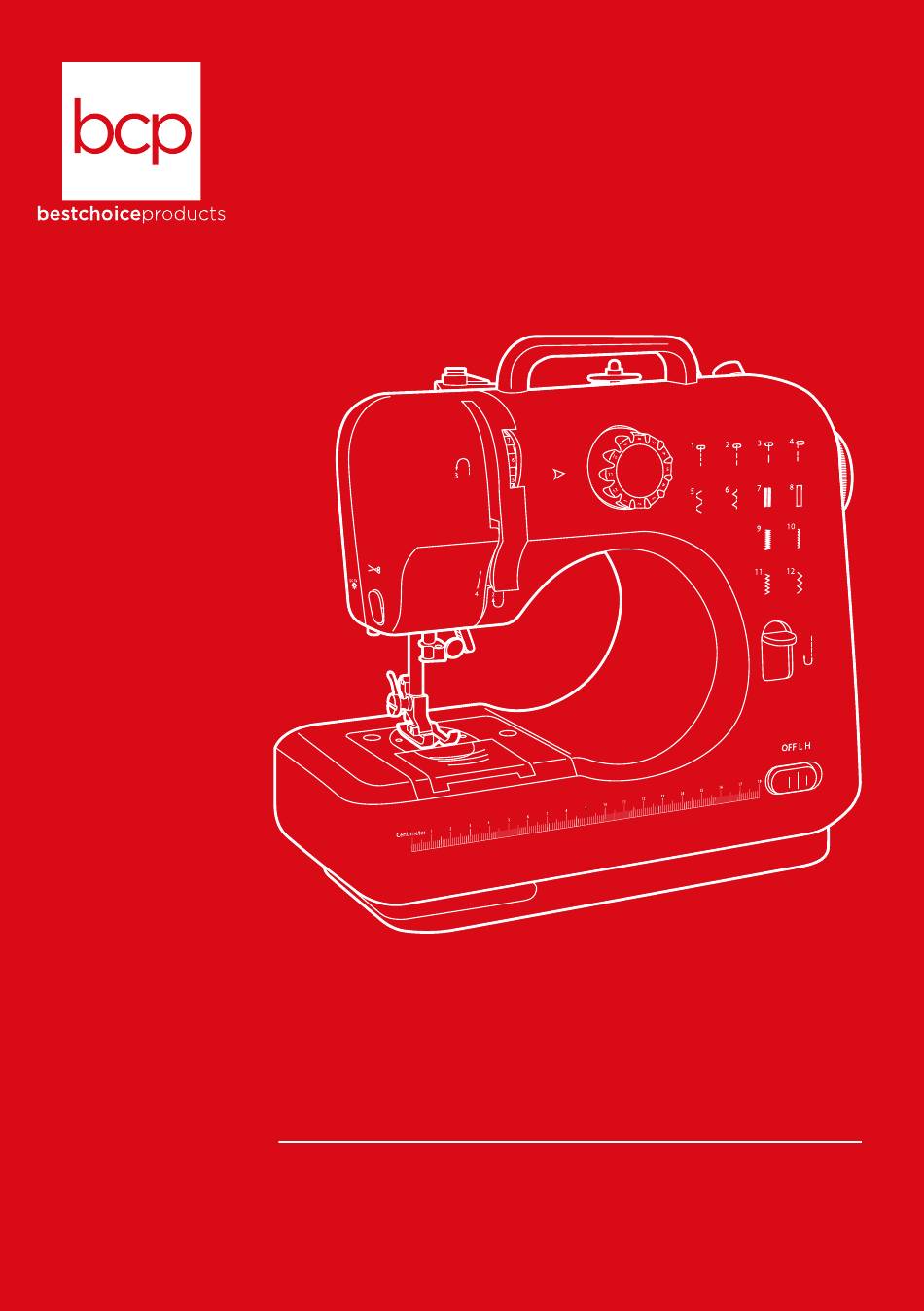

INSTRUCTION
MANUAL
6V Compact Sewing Machine
SKY6263
Ver. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY6263 and is the answer not in the manual?

Questions and answers

Summary of Contents for BCP SKY6263

  • Page 1 INSTRUCTION MANUAL 6V Compact Sewing Machine SKY6263 Ver. 1...

  • Page 2: Specifications

    NOTICE Please retain these instructions for future reference. • Please read instructions carefully before installing or operating machine. • Make sure to inspect the machine periodically to ensure it is in good condition. • This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 3 ACCESSORIES NEEDLE SPOOL BOBBIN NEEDLE (#14) THREADER 1 PC 2 PCS 2 PCS 1 PC PARTS SEWING MACHINE FOOT PEDAL POWER ADAPTOR 1 PC 1 PC 1 PC...

  • Page 4: Main Diagram

    MAIN DIAGRAM UPPER THREAD TENSION DIAL: Higher number indicates a tighter upper thread REVERSE BUTTON: Only works with straight stiches (stiches 1 to 4) TAKEUP PATTERN LIFTER SELECTION DIAL UPPER THREAD HAND TENSION DIAL WHEEL THREAD CUTTER REVERSE NEEDLE CLAMP BUTTON SCREW PRESSER...
  • Page 5 MAIN DIAGRAM SPOOL BOBBIN PRESSING BOBBIN WINDER WINDER TENSION DISK BOBBIN WINDER STOP SPOOL PIN PRESSER FOOT LIFTER PRESSER BAR PRESSER FOOT LOCK DRAWER DC INPUT FOOT PEDAL INPUT UNDER BATTERY COMPARTMENT...

  • Page 6: Preparing Machine

    PREPARING MACHINE Position the flat surface of the needle towards the presser bar, then insert the needle. Tighten the needle clamp to secure the needle. Remove the spool pressing, then place a spool on the spool pin. Remove the transparent cover, then place the bottom bobbin in the bobbin holder. NOTE: Machine is pre-threaded.
  • Page 7 THEADING MACHINE NOTE: It is very important that the machine is threaded correctly. Machine will not function properly if threaded incorrectly. Install the top spool. Route the thread through the bobbin winder tension disk.
  • Page 8 THREADING MACHINE Route it through the crevice next to the thread tension dial. Hook it around the thread compression tab. Thread it through the take-up lever from right to left. Route it through the threading hole. Thread the needle eye from front to back.
  • Page 9 DRAWING UP BOTTOM THREAD Remove the transparent cover. Pull the thread out from the bottom bobbin approximately 4 inches. Hold the upper thread from the needle eye. Turn the hand wheel counterclockwise to draw up the bottom thread.
  • Page 10 DRAWING UP BOTTOM THREAD Raise the pressure foot lifter and position the top and bottom thread under the presser foot. Pull both threads out 4 inches. Replace the transparent cover.
  • Page 11 USING FOOT PEDAL Switch the power to the OFF position. Plug the part B foot pedal into the foot pedal input. Press the foot pedal to begin sewing. Press/release your foot to adjust the sewing speed.

  • Page 12: Bobbin Winding

    BOBBIN WINDING NOTE: Make sure you remove the bottom bobbin from the machine before winding another bobbin. Place a spool on the spool pin. Route the thread through the bobbin winder tension disk.
  • Page 13 BOBBIN WINDING Place a bobbin on the bobbin winder pin. Route the thread through a hole in the bobbin. Push the bobbin to the left until it presses against the bobbin winder stop. Switch machine on to begin winding. Switch machine o after the desired amount of thread has wind around the bobbin. Push the bobbin to the right, remove the bobbin, and cut the thread.

  • Page 14: Changing Presser Foot

    CHANGING PRESSER FOOT NOTICE • Switch power o , disconnect the power adaptor, and remove the foot pedal before replacing the presser foot. • Make sure machine is on a flat and stable surface. • Keep hands and fingers away from the needle and presser foot to avoid injury. Turn hand wheel counterclockwise until the needle is at its highest position.
  • Page 15 FUNCTIONS SLEEVE SLOT: Convenient slot allows you to easily sew sleeves or leg openings. 5-LAYER STITCH: Machine can sew through 5 layers at a time. 12 STICH OPTIONS:...
  • Page 16 FUNCTIONS ADJUSTABLE NEEDLE DISTANCE: Use stiches 1 to 4 to vary needle distance. BUTTONHOLING: Use stiches 7 and 8 to sew buttonholes. OVERLOCK: Use stiches 9 to 12 to easily overlock.
  • Page 17 ADJUSTING STITCHING Correct stitching should be neat; the top and bottom threading should be even. TOP THREAD CLOTH BOTTOM THREAD If the bottom threading looks like a straight line, it means the top threading is too loose. Increase tension with the upper thread tension dial until stitching returns to normal If the top threading looks like a straight line, it means the top threading is too tight.

  • Page 18: Troubleshooting

    SEWING DIFFERENT FABRIC TYPES Fabric Cotton/Linen Silk/Wool Polyester Elastic Type/Thickness Easy Easy Easy Moderate Regular Easy Easy Easy Moderate Thick Thin Easy Di cult Di cult Di cult Hard(jeans, Easy Easy Easy Moderate canvas, etc.) Soft(towel duster Di cult Di cult Di cult Di cult fabric, etc.)
  • Page 19 TROUBLESHOOTING Problem Reason Solution Machine not threaded correctly, or Thread machine correctly bottom bobbin jammed Needle bent Replace needle Replace needle or realign needle and hook tip (see adjusting Hook Line Needle touches the hook tip Action section) Thread continues to break Burr around the needle eye Replace needle Needle installed or positioned...
  • Page 20 ADJUSTING HOOK LINE ACTION Raise the presser foot lifter. Use a screwdriver to remove the screws on the cover plate. Remove the cover plate and bobbin holder...
  • Page 21 ADJUSTING HOOK LINE ACTION Remove the screw plug on the other side of the machine. While looking into the screw hole, turn the hand wheel until the hex screw is aligned with the screw hole. BEHIND Insert a hex screwdriver into the hex screw and turn one rotation counterclockwise to loosen the screw.
  • Page 22 ADJUSTING HOOK LINE ACTION Hold the hook plate in place and turn the hand wheel until the hook tip is 1.5mm to 2mm above the needle eye. 1.5mm to 2mm...
  • Page 23 ADJUSTING HOOK LINE ACTION After adjusting to the right position, hold the hook plate in place and tighten the hex screw. Reassemble the machine. BEHIND...

  • Page 24: Help Center

    HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
