Summary of Contents for DOL 94-10
- Page 1 Technical User Guide DOL 94-10 Bird scale For other language variants of this document we refer to www.dol-sensors.com your local dealer. dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959...
-
Page 2: Product Description

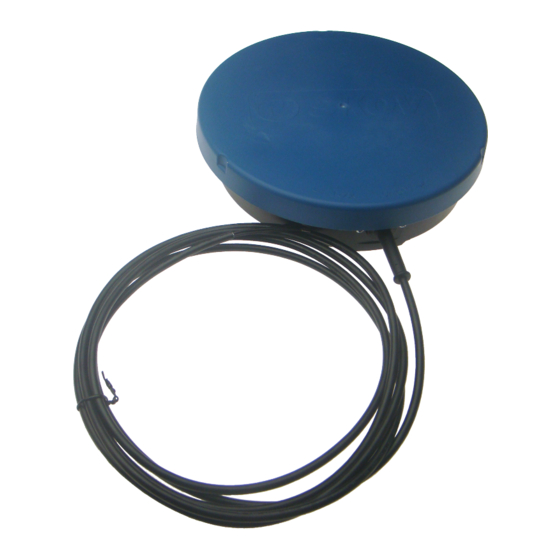

The weighing cell of the scale converts the weight of the bird to a voltage. This voltage is intensified and ad- justed to the calibration values after which it is transferred to the controller. DOL 94-10 is easy to remove when cleaning the house. It is easily adjusted/calibrated by means of a calibra- tion weight. -
Page 3: Product Survey
– so the birds cannot fly against the cable or peck the cable into pieces. 2. Connect the scale to the production controller. DOL 94-10 is a precision product and thus requires careful handling. Do not expose the scale to impacts or loads exceeding 10 kg. Do not step on the scale. -
Page 4: Recommended Tools
Technical User Guide 4 Recommended tools Below follows a list of tools recommended for installation of the DOL 94-10. Item Description Cordless drill Screwdriver bits Utility knife Multimeter Tape measure Side cutter Needle-nose pliers Ladder Screwdriver Spirit level www.dol-sensors.com DOL 94-10... -
Page 5: Electrical Connection
The power supply isolator is not included. 5.2 Cable routing (A) three-core cable for 24 VDC supply and 0-10 V signal to production controller. (B) 4-core cable between scale and connection box. 5.2.1 M12x1 circular connection plug Male Female www.dol-sensors.com DOL 94-10... -
Page 6: Circuit Diagram
Technical User Guide 5.3 Circuit diagram Example of poultry scale connected to production controller. The exact connection depend on the other connections. Poultry scale www.dol-sensors.com DOL 94-10... - Page 7 5. Remove the weight again. If during calibration, the red LED has been flashing, an error has occured during the calibration process and it should be repeated. Put the weight/weights on the scale in the same way each time. www.dol-sensors.com DOL 94-10...
-
Page 8: Maintenance
If multiple scales are placed in the same house, it is important that these a not mixed up when cleaning. Put marks on the scales to ensure that each is connected to the same connector after cleaning. www.dol-sensors.com DOL 94-10... -
Page 9: Technical Data
-10 to +45 (+14 to 130) °C (°F) Storage temperature -25 to +55 (-13 to +131) % RH Ambient humidity, opera- 0-90 tion Protection class 65 (spray-proof) Shipment Dimensions 670, 220 H x Ø Weight 2000 Shipping weight 2500 www.dol-sensors.com DOL 94-10... - Page 10 Technical User Guide www.dol-sensors.com DOL 94-10...
- Page 11 Technical User Guide www.dol-sensors.com DOL 94-10...
- Page 12 Technical User Guide dol-sensors a/s – Agro Food Park 15 – DK-8200 Aarhus N – T: +45 7217 5888 – F: +45 7217 5959 – www.dol-sensors.com...
