Making British gardens great

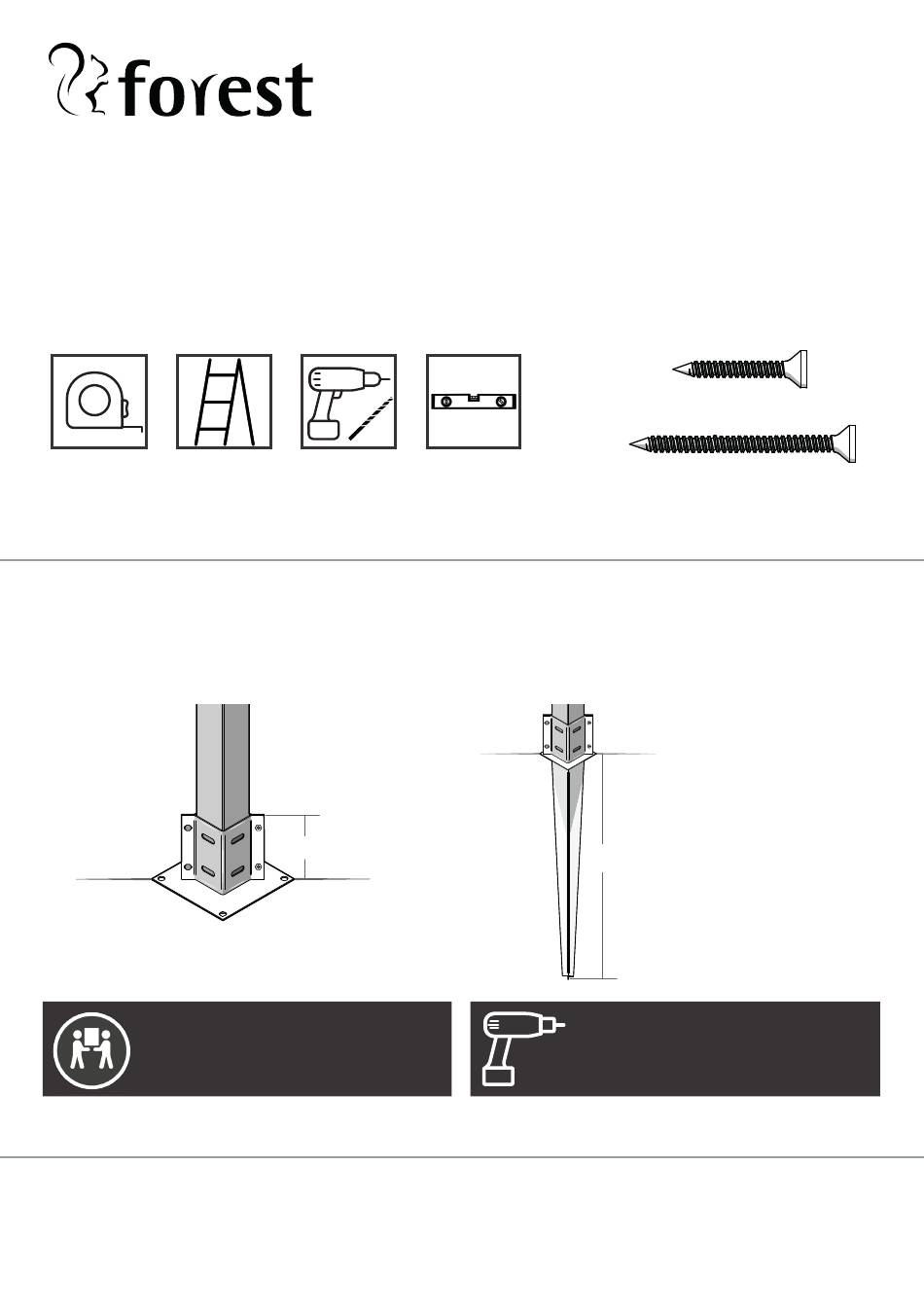

LARGE ULTIMA PERGOLA ARCH
INSTRUCTIONS
We recommend using the following tools (NOT SUPPLIED):
Tape Measure
Ladder
It's vital that you build your new arch on a level ground in your desired
location.
We strongly advise that you anchor your arch down with either fixtures shown below to enhance stability. You will
need to purchase these separately. Apply each fixture to each leg before fully constructing your arch. 130mm of
FOR PATIO/DECKING (HARD SURFACES)
Easy-Fit Fencebase - 90mm
(FBEF90)
IMPORTANT
Assembly requires 2+
adults.
THE ROOF OF THIS ARCH IS NOT A LOAD BEARING STRUCTURE
Missing something or need more information?
Call our aftersales team on
0333 777 7089
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
Drill & 2mm
Spirit Level
Drill Bit
PREPARATION
your post will be supported within the fixture.
130mm
FIXING PACK CONTAINS:
PLEASE KEEP PLASTIC BAGS AND SMALL
750mm
REMINDER
Always pre-drill before
screwing.
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
ISSUE: 0321
FIXING PACK CODE: LUPARCHFP
5 x 60mm Screws
QTY: 28
5 x 70mm Screws
QTY: 12
PARTS AWAY FROM CHILDREN
FOR GRASS/SOIL
(SOFT SURFACES)
Easy-Fit Fencefast
(FEF9075)
Ensure that the spike can be
inserted into the ground by
750mm.
Advertisement
Table of Contents
Related Manuals for Forest LARGE ULTIMA PERGOLA ARCH
Summary of Contents for Forest LARGE ULTIMA PERGOLA ARCH
- Page 1 THE ROOF OF THIS ARCH IS NOT A LOAD BEARING STRUCTURE Missing something or need more information? Visit our website for spare instructions and more information Call our aftersales team on 0333 777 7089 www.forestgarden.co.uk Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB...
- Page 2 SCREWS SCREWS Secure each trellis between 2 x posts. Use 3 x 60mm Slot in the longer rafters into the posts. Use the screws each side, through the trellis into the post to measurements as shown above to position evenly. Secure into place with 2 x 60mm screws per post.
- Page 3 CHECK YOU HAVE ALL YOUR PARTS. (The parts do not have codes on them. They are listed below should you need to order one.) Large Ultima Pergola Arch (LUPARCH) Description Part Code Slotted Post 95x95x2400mm USU84 Long Rafter 95 x 47.5 x 2400mm URCB8BI Rafters With Large Notch 95 x 47.5 x 1360mm...
